轨道测量与分析

超声焊缝检测

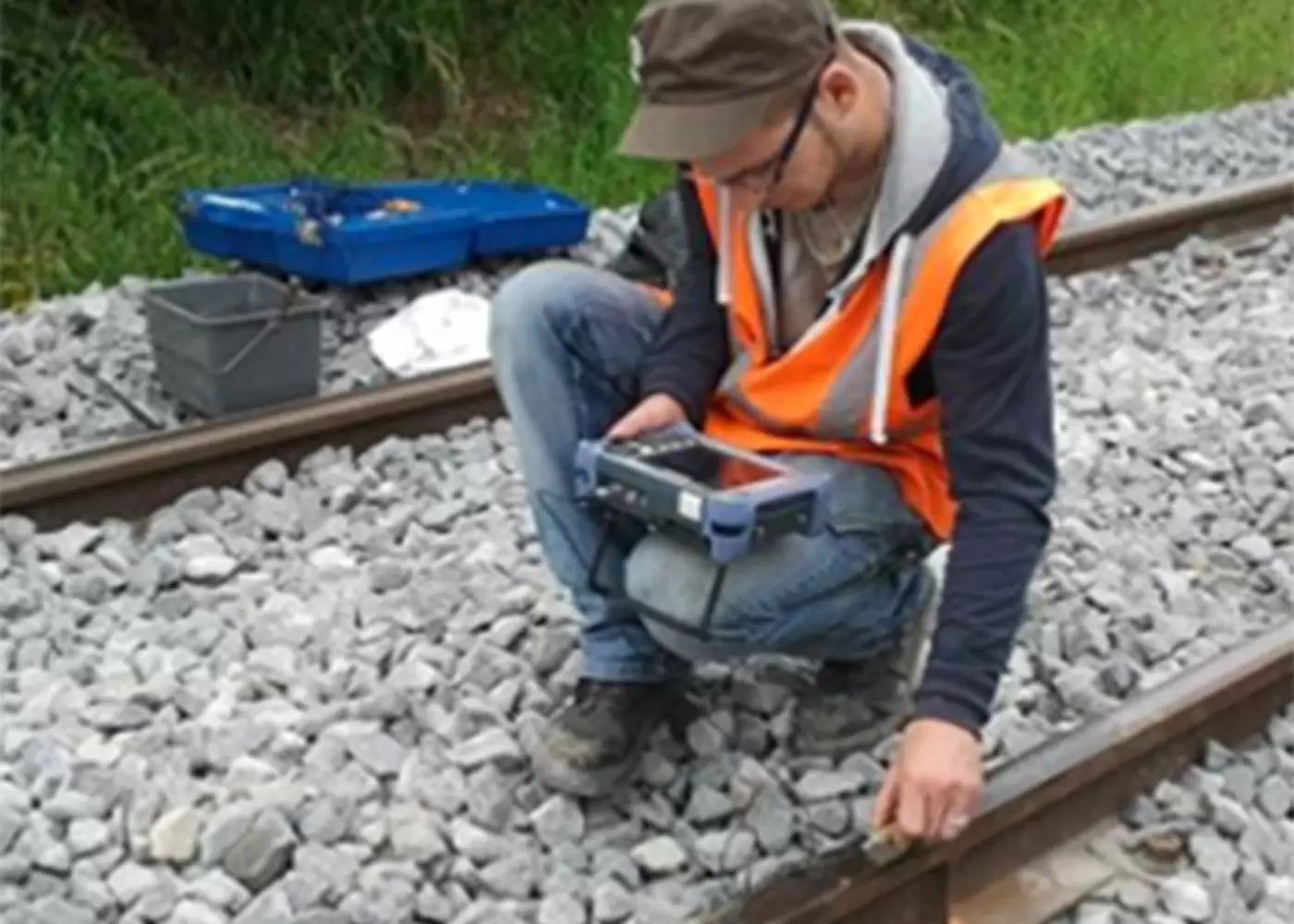

超声检测涉及向钢轨的焊接部分发射高音波，以检测内部缺陷。该综合性检测在轨头、轨腰和轨脚上执行，以提供整个焊缝的详细分析。

这使用户可以确定焊缝是否符合铁路网络的规范。

Ultrasonic Weld Testing product overview

This comprehensive test is carried out on the head, web and foot to provide a detailed analysis of the entire weld.

  • This allows the user to determine whether or not the weld has confirmed to the specifications of the rail network

Downloads

Catalogue

Benefits of the Ultrasonic Weld Testing

01

Prevents breakage

Prevents breaking in the weld

02

Precise

The outputted report will highlight the exact location, characteristics and cause of the defect inside the weld

Technical features of the Ultrasonic Weld Testing

01

Inspects 100% of the weld

Multiple angles are used to inspect 100% of the weld

02

Detects infects

Detects a variety of defects including blowholes, insufficient fusion and shrinkage
