Clip Driver CD100 Battery

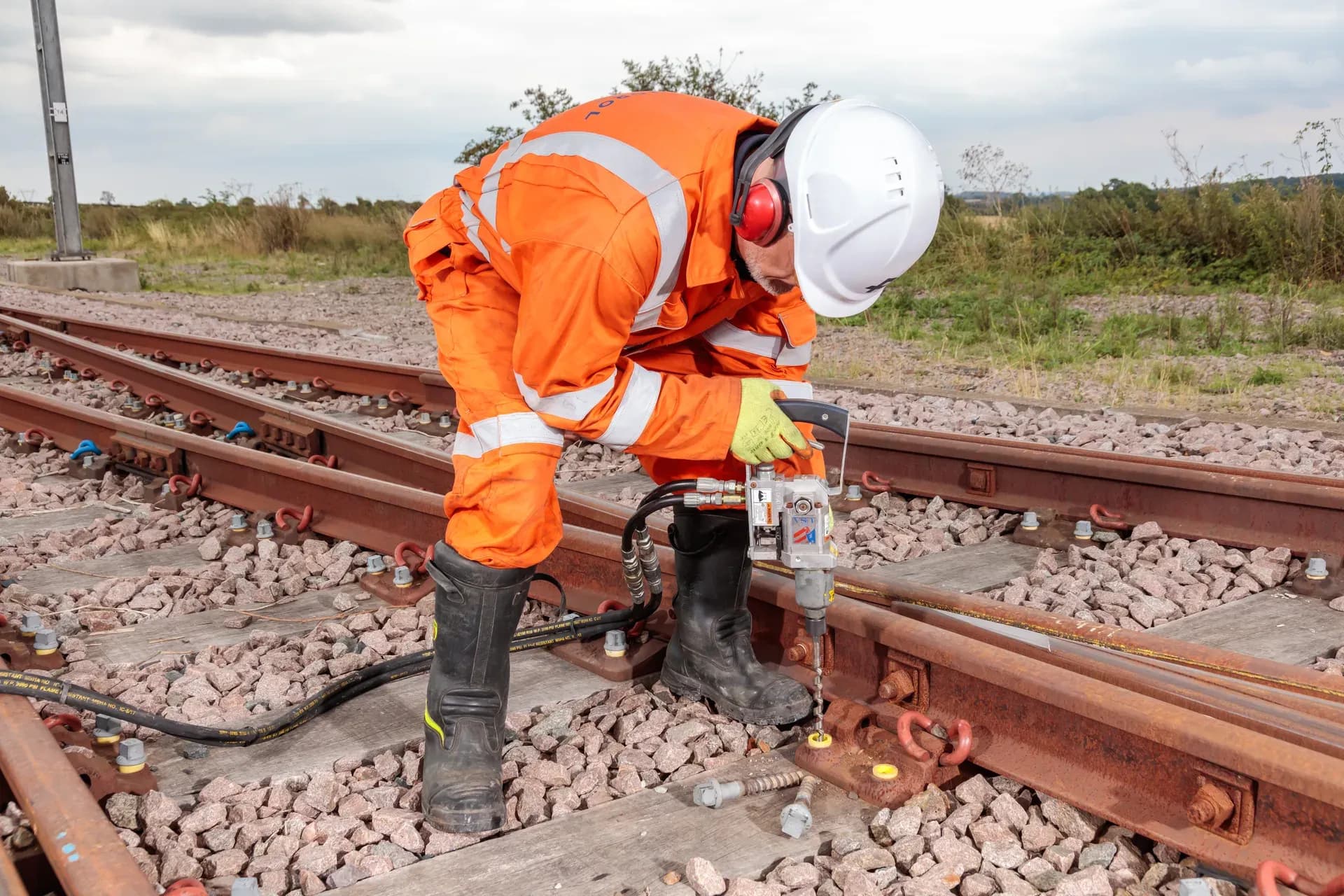

The CD100 Battery clipping machine is designed for clipping and declipping Pandrol Fastclips. Compact and lightweight, it is suitable for use by a single operator and can be easily carried onto site.

The CD100 is composed of three parts: a power pack and two clipping tools. As part of its ergonomic design, a weight-bearing wheel runs along the rail, dramatically reducing the physical strain on the operator. Although optimised for smaller clipping and declipping applications, the CD100 is versatile and can be coupled quickly and easily to other equipment. If required, it can lift sleepers up to 10mm.

Powered by battery, this emission-free clipping machine is suitable for use in tunnels and stations and in densely populated areas where working safely with low noise and clean air is a priority.

Technical Features

  • The CD100 is equipped with a reliable lithium-ion battery, designed for high-power applications. Capable of hundreds of charges without any loss of power, the battery has a low self-discharge rate.
  • Designed with a quick connect interface, the patented CD100 comes in three modules: the power pack, the clipping tool and the declipping tool.
  • Compatible with Fastclip FC upto 1500 series of clips (15mm in diameter), Fastclip FE and FCX.
  • The powerful tool’s small size means the CD100 Battery can be stored in the boot of a car and carried onto site by one person for quick intervention and reduced cost.

Advantages

  • The CD100’s compact, portable design means that it can be transported easily and used by a single operator, saving time and labour costs.
  • The machine’s ergonomic features, including adjustable handle, weight-bearing wheel and light weight, make it safer and more convenient for users.
  • An environmentally-friendly, battery-powered tool with no exhaust smoke and reduced noise, the CD100 makes a positive contribution to clean working environments.
  • Because it is emission-free, it is suitable for use in tunnels, stations and densely populated areas.
