Hand Pump Weld Shear (05000)

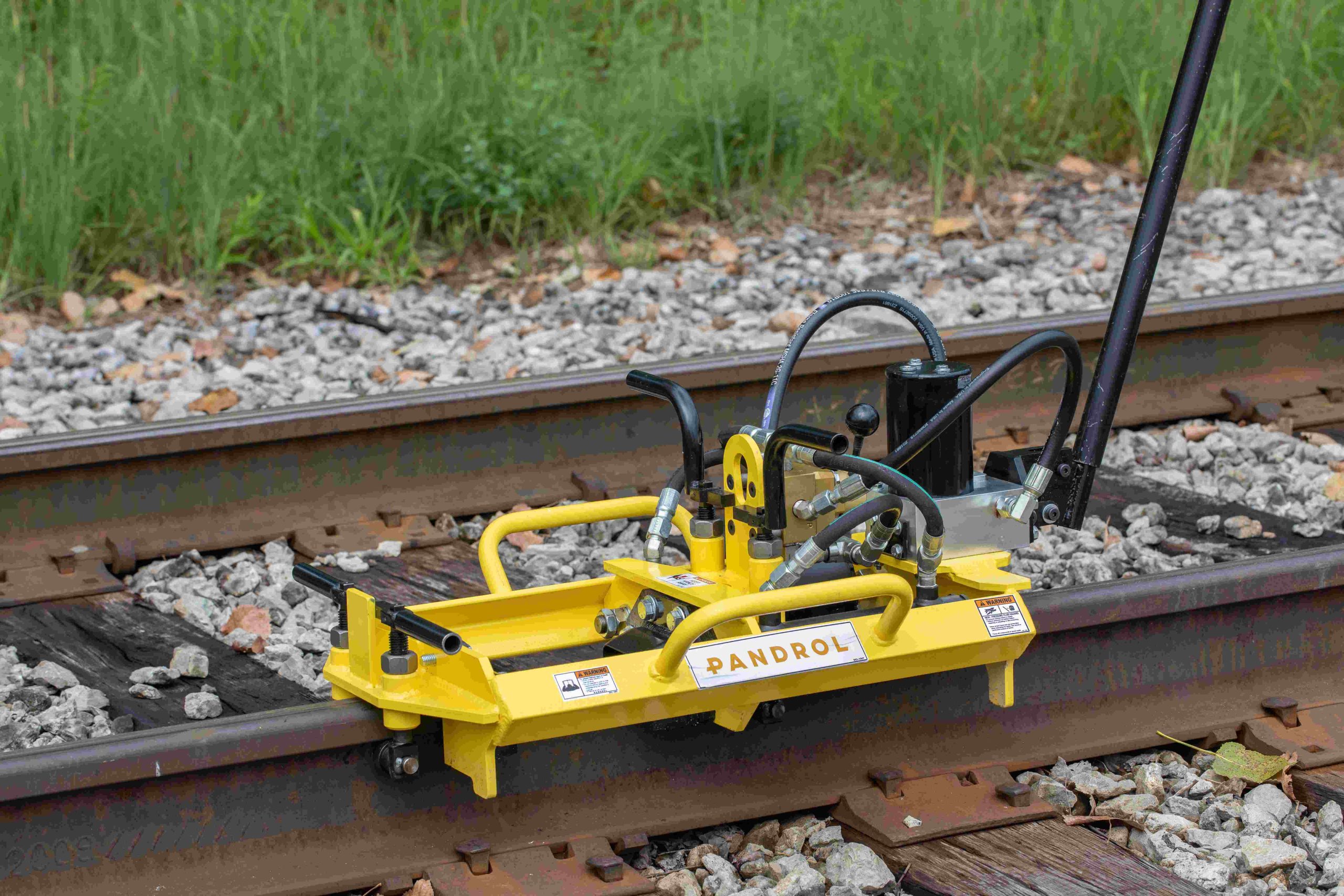

The Pandrol Hand Pump Weld Shear is a fully self-contained hydraulic shear engineered to efficiently remove excess weld metal with minimal effort. Equipped with self-locking adjustable hold-down rollers, the tool guarantees safe and consistent cuts every time.

Product overview

The Hand Pump Weld Shear is a compact, self-contained hydraulic tool engineered to remove excess weld metal quickly, safely, and cleanly—without requiring an external power source.

  • Integrated hand pump allows for fast setup and independent operation on site
  • Adjustable hold-down rollers ensure precise alignment and compatibility with multiple rail profiles
Contact

Downloads

Product information sheet
Operating manual

Advantages of the Hand Pump Weld Shear (05000)

01

Self-Contained Operation

The integrated manual hydraulic pump removes the need for external connections, streamlining setup and operation on site.

02

Clean and Consistent Results

With a cycle time of just 30–45 seconds, the shear delivers fast, uniform cuts, reducing downtime between welds.

03

Safety Over Traditional Methods

Eliminates the risks of flying metal and strain associated with hammer and chisel techniques.

04

Quick Conversion Capability

The tool can be easily adapted for use with Pandrol’s power unit using a dedicated retrofit kit.

Technical Features of the Hand Pump Weld Shear (05000)

01

Safe and efficient hydraulic performance

The unit operates at 3000 psi (206 bar) of pressure, providing reliable power to shear welds quickly and with minimal manual force.

02

Compact and transportable build

With dimensions of 29″ x 20″ x 13″ (73.66 x 50.8 x 33.02 cm) and a weight of 130 lbs (59 kg), it is robust yet manageable for deployment across rail sites.

03

Built-in double-action hand pump

The integrated pump simplifies the system by eliminating the need to connect external hydraulic lines.

04

Adjustable bearing rollers for rail compatibility

The shear uses self-locking adjustable hold-down rollers that can be quickly set to fit a wide range of rail profiles and sizes.

05

Durable and replaceable shear blades

Equipped with Pandrol full cast tipped blades, the unit is field-ready, and replacement blades are easily available and simple to install.

06

Rail protection guaranteed

The precise machine-based process minimizes the risk of damage to the rail, unlike manual removal methods.
