Self-Feed Rail Drill (03500)

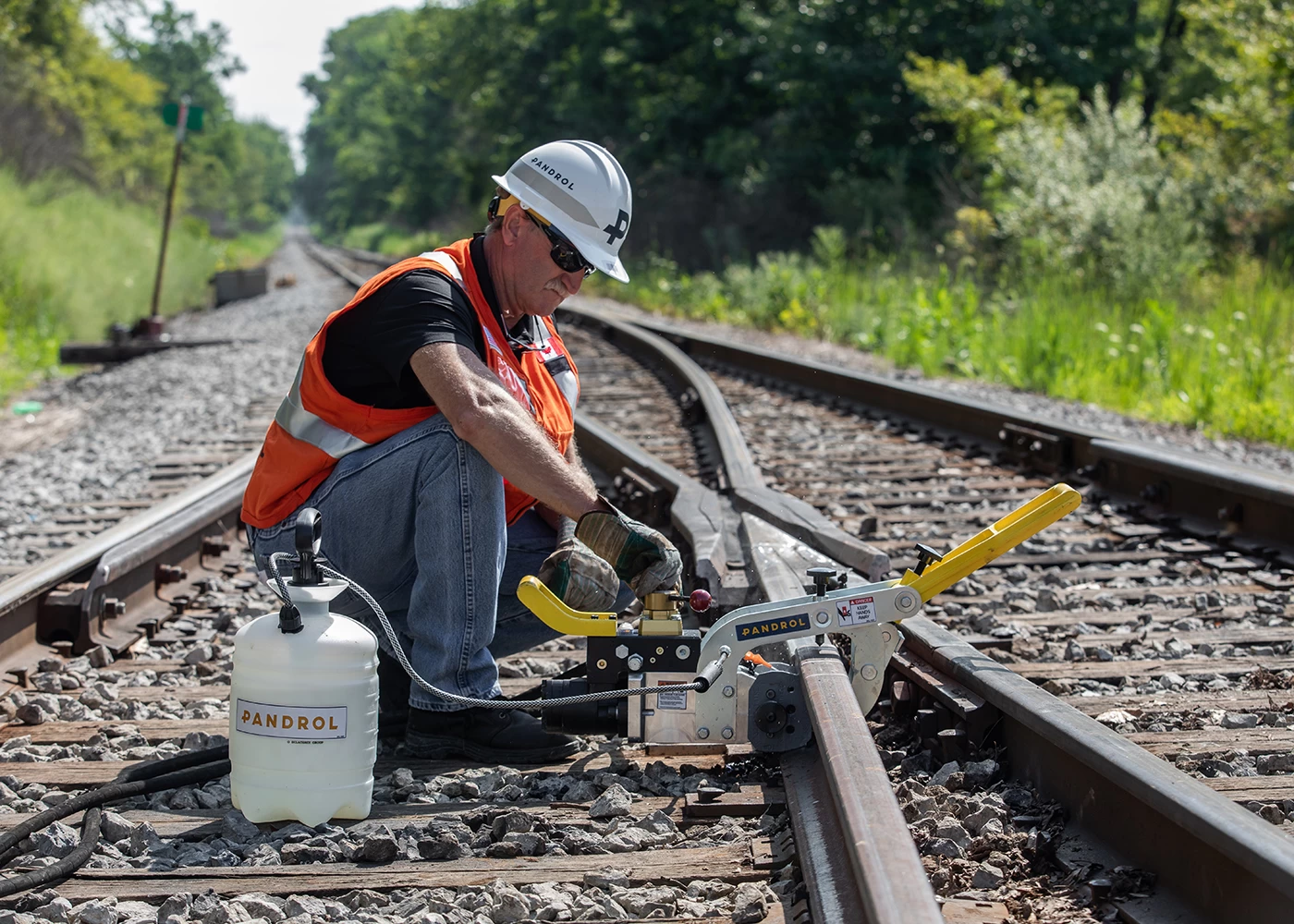

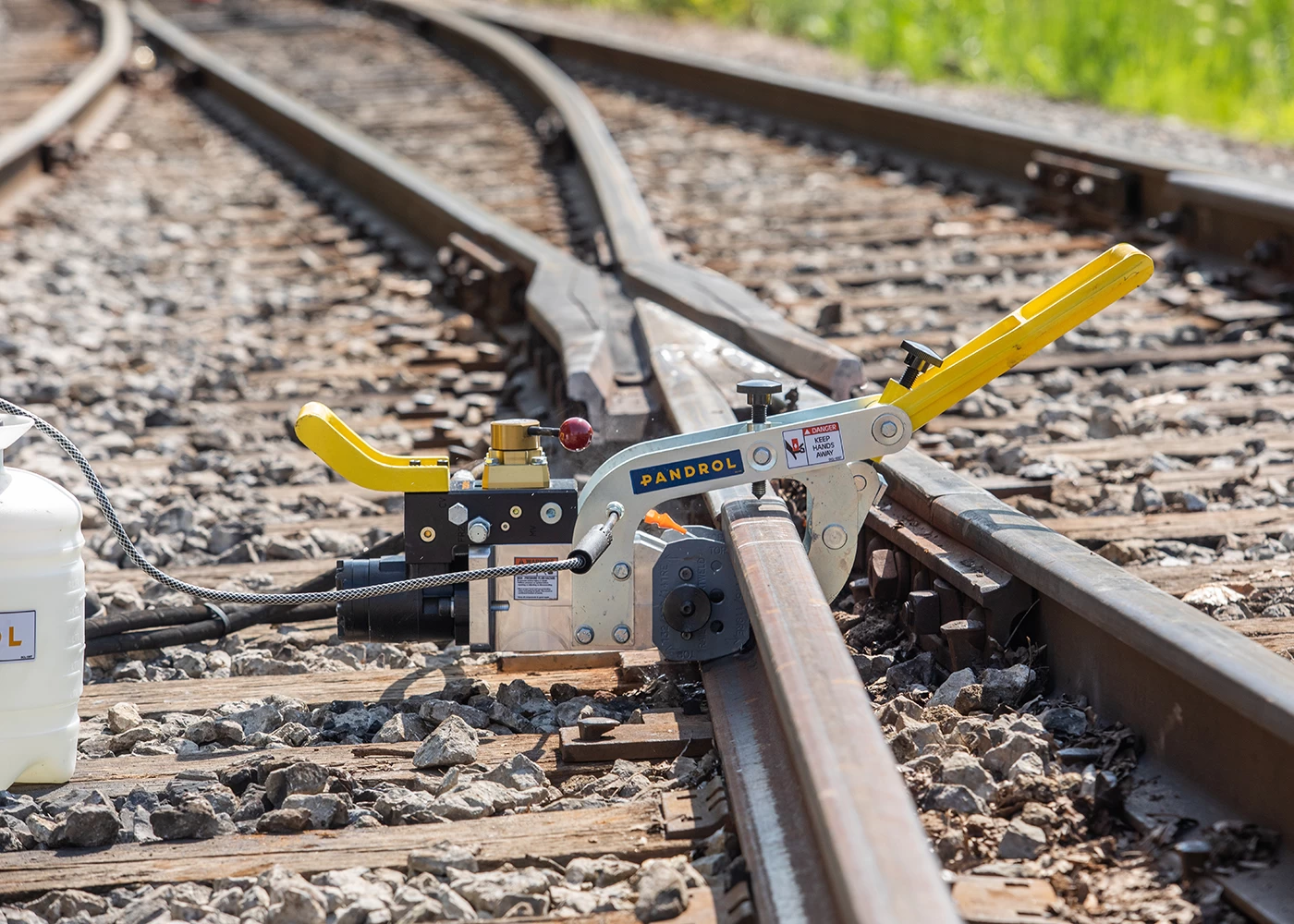

The Pandrol Self-Feed Rail Drill (03500) is a lightweight, portable machine for precise, efficient drilling of rails. The drill is powered by a hydraulic system – that delivers clean and powerful energy that is the driving force needed for boring holes. A simple clamp allows for quick set-up on track and patented arrow inserts ensure precision holes and quick drilling time. A separate coolant container assembly delivers coolant to the drill bit.
A range of rail templates, index bars and drill bit inserts are available as accessories to the Self-Feed Rail Drill. These enable the drill to be adapted for a full range of standard drilling patterns and different rail types.

Product overview

This drill is powered by a clean hydraulic source, delivering consistent energy for demanding tasks.
It features a simple clamp system, fast alignment via rail templates, and integrated lubrication, making it both efficient and cost-effective for track operations.

  • Lightweight and compact for easy transport and setup, with automatic feed for precision and speed.
  • Compatible with double-sided templates and interchangeable holders for multiple hole sizes, reducing the need for extra parts.
Contact

Downloads

Product Information Sheet
Operating manual

Benefits of Self-Feed Rail Drill (03500)

01

Fast Setup and Drilling Save Time and Costs

The Self-Feed Rail Drill is quick to use—both in terms of set-up on the rail and drilling time—saving money on labor and track time.

02

Automatic Feed and Inserts Ensure Precision

The drill’s automatic feed and arrowhead inserts ensure consistently precise boring.

03

Lightweight for Easy Handling on Track

The machine is lightweight, making it easy to carry and position
on track.

04

Versatile Double-Sided Templates Reduce Part Costs

The versatility of the drill’s double-sided templates means that a range of rail profiles can be drilled without the expense of extra parts.

05

Insert Holder Compatibility Cuts Replacement Expenses

Similarly, because the insert holder can be used for a range of insert sizes, money is saved on having to change the complete holder and insert when drilling holes of different sizes.

06

Lubrication System Minimizes Friction and Maintenance

The drill’s lubrication system reduces friction and saves on maintenance costs.

Technical features of Self-Feed Rail Drill (03500)

01

Hydraulic source

The Self-Feed Rail Drill runs on a hydraulic system, operating at 10 gpm (38 lpm) and 2000 PSI (140 bar).

02

Simple clamp

The drill is clamped to the rail by pushing down the over cam designed handles.

03

Automatic feed

The drill has an automatic feed that ensures it advances accurately.

04

Inserts and holders

Patented arrowhead inserts drill precisely through raised lettering on the rail. The insert holder can be used for a range of insert sizes; just three holders will install and drill holes from 22mm (7/8″) to 38mm (1-5/8″).

05

Templates

A range of double-sided templates are available to securely align the drill to the rail. These can be designed to fit almost all rail sizes.

06

Lubrication system

The drill is fitted with a lubrication system that reduces friction.

Tell us about your project

Speak to an expert

Speak to an expert

Frog Profile Grinder (05900-05950)

The Pandrol Frog/Profile Grinder delivers accurate rail and frog grinding with ergonomic roll-over control. Its lightweight frame and optional outrigger make it a flexible solution for precise weld finishing in the field.

Frog Profile Grinder (05900-05950)

View product
Diesel Powered Unit 10/5GPM (02900A)

The Pandrol Diesel Powered Unit (02900A) provides reliable hydraulic output of 5 or 10 GPM for powering rail tools. Equipped with a robust 18 hp Kubota engine, it ensures dependable performance even in tough environments.

Diesel Powered Unit 10/5GPM (02900A)

View product
Hand Pump Weld Shear (05000)

Pandrol’s Hand Pump Weld Shear is a compact, self-contained tool for quick and precise removal of excess weld metal. With integrated hydraulics and easy handling, it delivers consistent results in under a minute.

Hand Pump Weld Shear (05000)

View product
Tamper (08200)

Pandrol’s Hydraulic Tamper offers powerful, multi-purpose performance with low hand-arm vibration. Engineered for operator safety and comfort, it’s ideal for daily rail maintenance operations.

Tamper (08200)

View product
Half inch Hydraulic Drill and Impact Wrench (04500D-04525)

The Pandrol 04500D and 04525 combine drilling and fastening into compact, ergonomic hydraulic tools for rail maintenance. Their lightweight design ensures mobility, while their robust performance meets heavy-duty demands in any field environment.

Half inch Hydraulic Drill and Impact Wrench (04500D-04525)

View product
Hydraulic Manifold Circuit (03000)

The Pandrol Hydraulic Manifold Circuit (03000) enables safe, efficient use of hydraulic tools by converting flow and pressure from existing systems. Its compact and easy-to-install design makes it a practical solution for enhancing on-site tool capabilities.

Hydraulic Manifold Circuit (03000)

View product
Battery-Operated Handheld Grinder B115

This lightweight and portable grinder is specially designed for finishing grinding after rail welding on track. The integrated lithium battery provides autonomy, as no other power source is required.

Battery-Operated Handheld Grinder B115

View product
Weld Shear (05100A)

The Pandrol Weld Shear is designed to make it easier and more efficient to remove excess weld metal.

Weld Shear (05100A)

View product

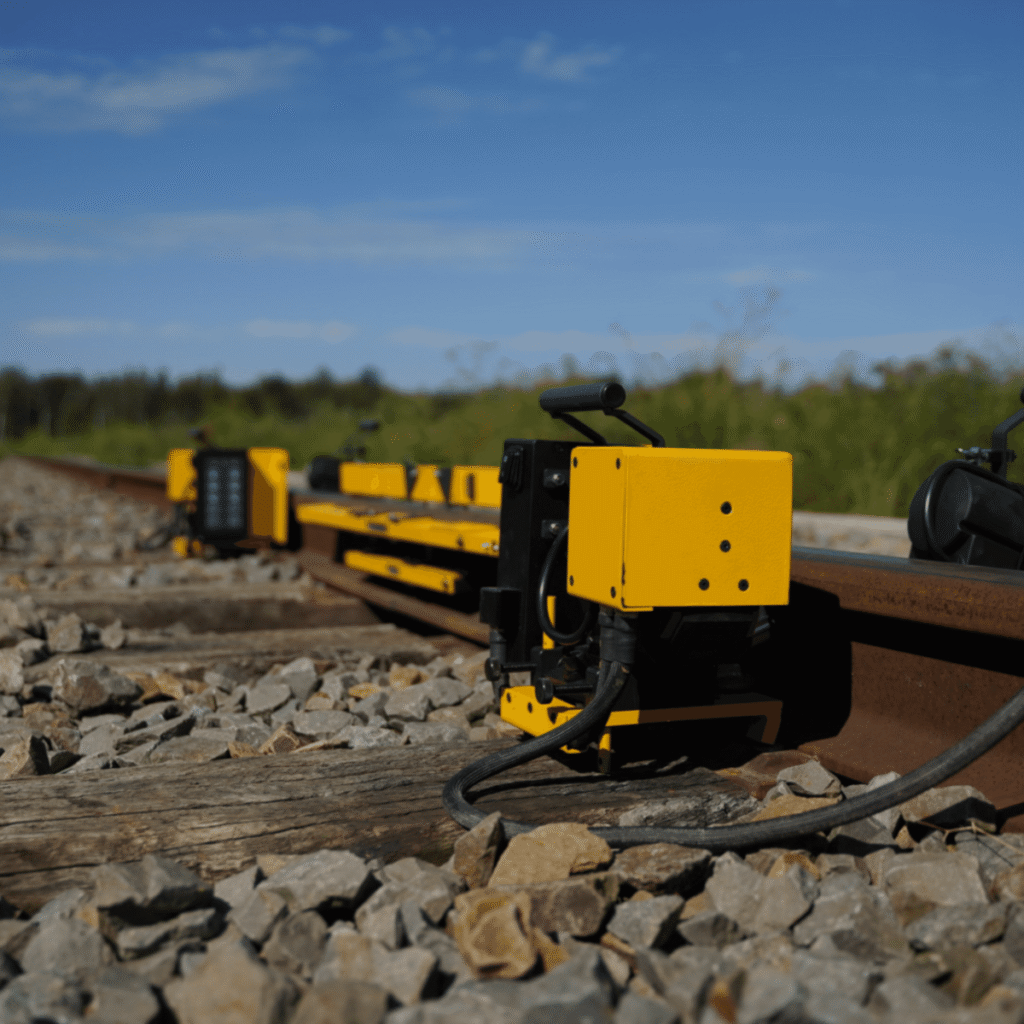

i+align
