Rail Welding Equipment

Straight Edges RAP1000, RB500, RB700 and RB1000

Pandrol Straight Edges are long-lasting, easy-to-use tools designed to ensure accurate alignment before aluminothermic welding takes place – and to check the grinding tolerance when it’s complete.

Straight Edges RAP1000, RB500, RB700 and RB1000 product overview

Performing checks and adjustments is an important part of the welding and maintenance process, particularly on the ends of rails.

  • It can help achieve perfect peak, horizontal and vertical alignment
  • Straight Edge RAP1000 features flat and adjustable stops, and is designed for pre-welding adjustments
  • Straight Edges RB500, RB700 and RB1000 are bevelled tools, and are designed to perform checks and adjustments on rail heads, webs and cant

Downloads

Product information sheet
01

Maximum traceability (RAP1000)

The Straight Edge RAP1000’s laser-engraved strap provides all the information welders need for maximum traceability.

02

Longevity (RAP1000)

The Straight Edge RAP1000 is easy to use, long-lasting and ergonomic, with a magnetic stand to make the measuring process as stable and controlled as possible.

03

Accurate (RAP1000)

The Straight Edge RAP1000 is strategically placed stringers maximise the accuracy of measurements, while adjustable stops guarantee precise setting for flawless alignment.

04

Enhanced traceability (RB500, RB700 and RB1000)

The Straight Edge RB500, RB700 and RB1000 models feature laserengraved graduation on their straps, giving welders all the information they need to maximise traceability and check the exact length of the grinding required.

05

High quality (RB500, RB700 and RB1000)

The Straight Edge RB500, RB700 and RB1000 models are made using top-quality, high-strength steel, these tools offer maximum levels of durability – perfect for repeated, hands-on use on the track.

06

Seamless results (RB500, RB700 and RB1000)

The RB500, RB700 and RB1000 are long-lasting and ergonomic, thanks to an anodised aluminium handle and single fixation point. Each model is built to make achieving consistently seamless results as easy as possible.

Technical features of Straight Edges RAP1000, RB500, RB700 and RB1000

01

Laser-engraved graduation (RAP1000)

Straight Edge RAP1000 has information laser-engraved on its strap to increase traceability.

02

Maximum stability (RAP1000)

A magnetic stand ensures optimum stability, with stringers on either side of the tool to improve manipulation, flexibility and accuracy.

03

Adjustable height knobs (RAP1000)

The tool’s adjustable stops make it easy to set the level and align the rail head and web with precision.

04

Treated steel (RB500, RB700 and RB1000)

The RB500, RB700 and RB1000 models are made from highquality, strength-treated steel, which guarantees maximum durability in a range of working conditions.

05

Laser-engraved marking (RB500, RB700 and RB1000)

Information is marked on the strap, with laser-engraved graduation for traceability and length checks.

06

Ergonomic handle (RB500, RB700 and RB1000)

The models’ anodised aluminium handle provides an ergonomic, durable grip, with a single fixation point to make sure the strip doesn’t become deformed.

Tell us about your project

Speak to an expert

Related products

Frog Profile Grinder (05900-05950)

The Pandrol Frog/Profile Grinder delivers accurate rail and frog grinding with ergonomic roll-over control. Its lightweight frame and optional outrigger make it a flexible solution for precise weld finishing in the field.

Frog Profile Grinder (05900-05950)

View product

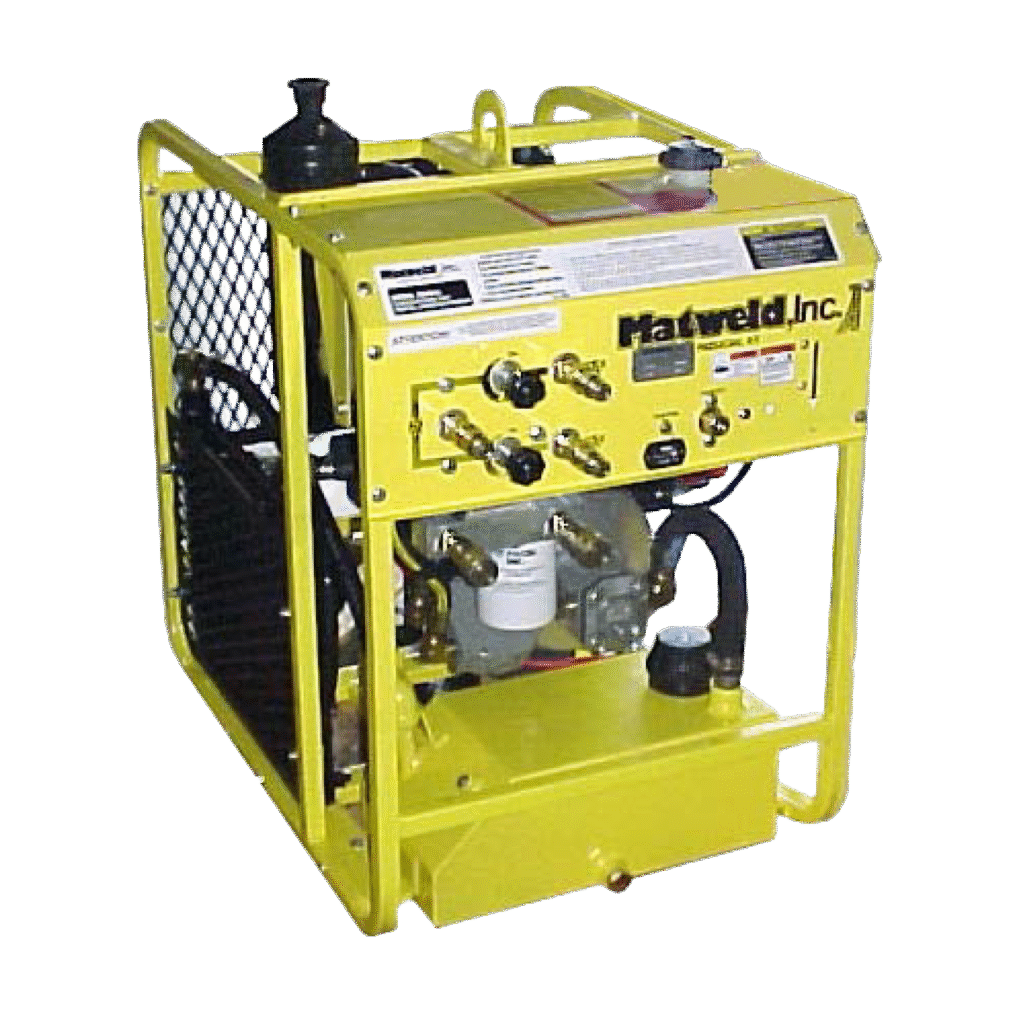

Diesel Powered Unit 10/5GPM (02900A)

The Pandrol Diesel Powered Unit (02900A) provides reliable hydraulic output of 5 or 10 GPM for powering rail tools. Equipped with a robust 18 hp Kubota engine, it ensures dependable performance even in tough environments.

Diesel Powered Unit 10/5GPM (02900A)

View product
Hand Pump Weld Shear (05000)

Pandrol’s Hand Pump Weld Shear is a compact, self-contained tool for quick and precise removal of excess weld metal. With integrated hydraulics and easy handling, it delivers consistent results in under a minute.

Hand Pump Weld Shear (05000)

View product
Tamper (08200)

Pandrol’s Hydraulic Tamper offers powerful, multi-purpose performance with low hand-arm vibration. Engineered for operator safety and comfort, it’s ideal for daily rail maintenance operations.

Tamper (08200)

View product

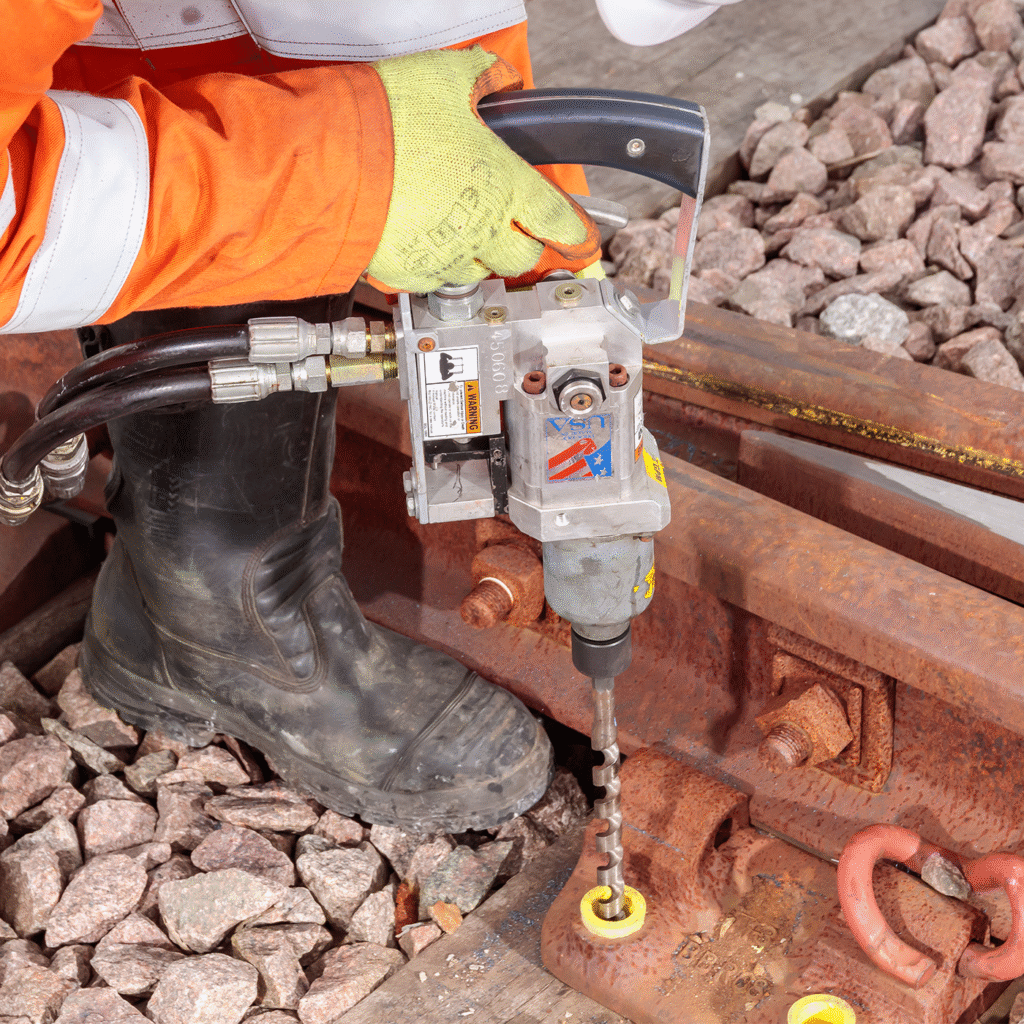

Half inch Hydraulic Drill and Impact Wrench (04500D-04525)
