Rail Welding Equipment

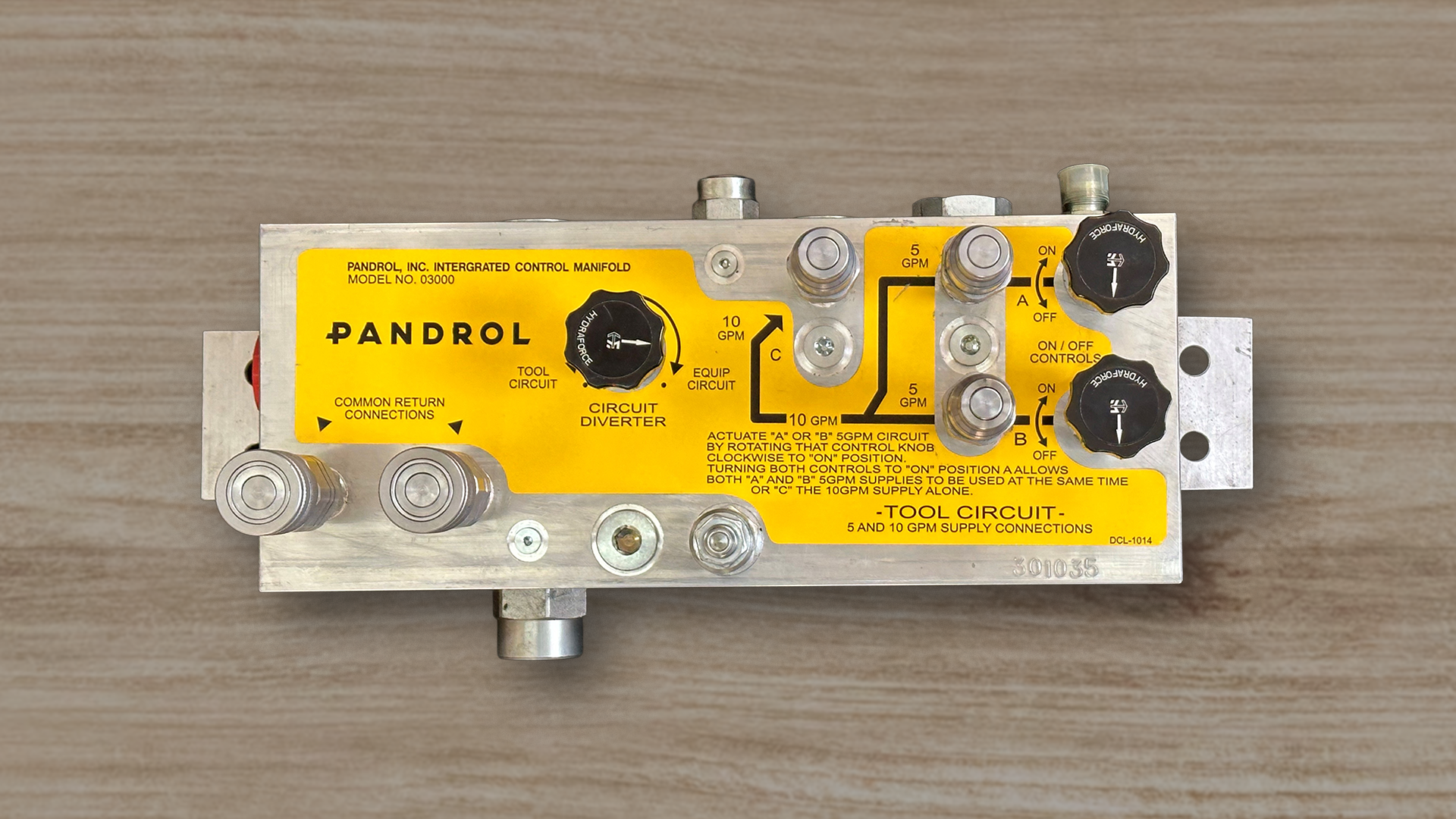

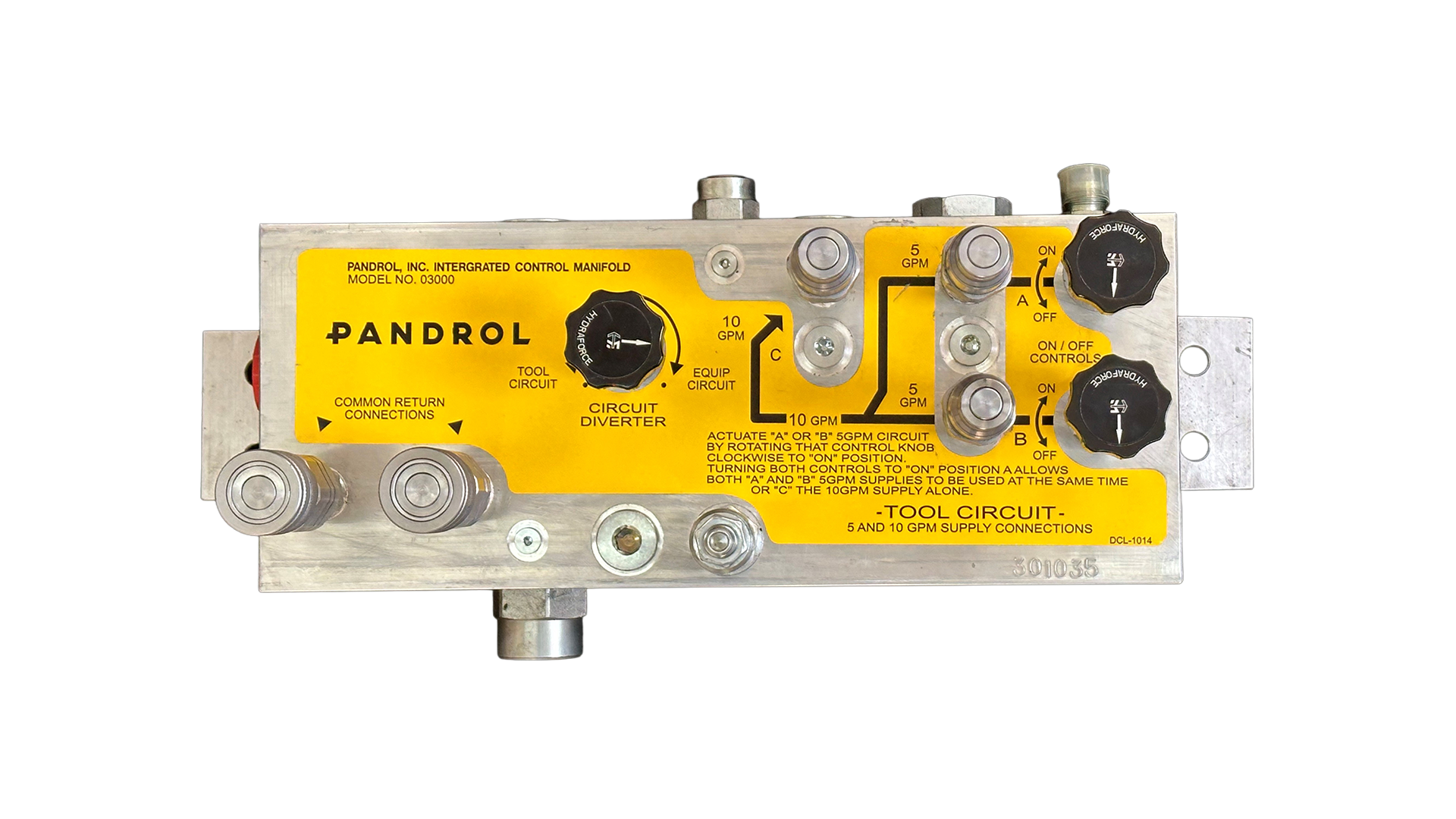

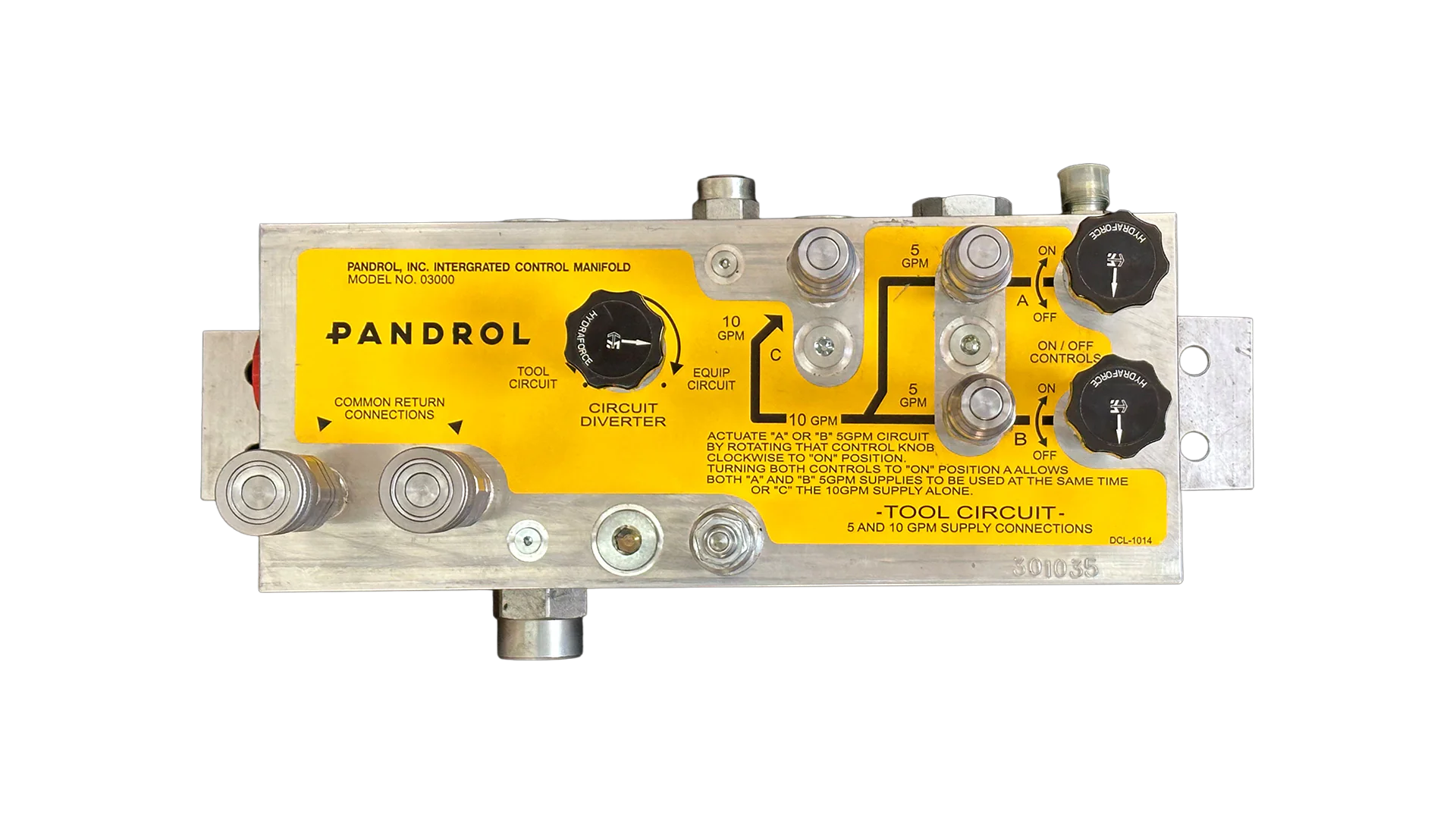

Hydraulic Manifold Circuit (03000)

The Hydraulic Manifold Circuit is a self-contained flow and directional control assembly. Compact and easy to install, this manifold provides a safe and cost-effective way of adding hydraulic tool capabilities to your existing range of equipment.

Hydraulic Manifold Circuit (03000) product overview

The Hydraulic Manifold Circuit (03000) is a compact, self-contained flow and directional control assembly designed to enhance hydraulic tool capabilities. Ideal for rail welding operations, it enables safe, efficient integration with existing hydraulic systems. Easy to install and highly durable, it ensures optimal performance in demanding field conditions.

  • Adds hydraulic functionality to any system delivering at least 10 gpm at 2,000 psi
  • Compact, cost-effective solution for directional flow control in rail welding environments
Contact

Downloads

Product information sheet
Operating Manual

Advantages of the Hydraulic Manifold Circuit (03000)

01

Cost-effective integration

An ideal solution to upgrade existing hydraulic systems without major modifications or additional investments.

02

Fail-safe hydraulic performance

Delivers controlled flow and pressure tailored to tool requirements, ensuring optimal safety and functionality.

03

Quick and compact installation

Its small footprint and modular design make it simple to mount on vehicles or equipment with limited space.

04

Versatile equipment compatibility

Designed to support both 5 and 10 gpm hydraulic tools, offering flexibility across different job site needs.

05

Enhanced operator safety

Converts and stabilises hydraulic input to protect both the tool and the user during high-pressure operations.

Technical features of the Hydraulic Manifold Circuit (03000)

01

Flow compatibility

Operates efficiently with hydraulic systems supplying a minimum of 10 gpm at 2,000 psi.

02

Precision flow regulation

Ensures accurate control over pressure and flow direction, tailored to field tool specifications.

03

Compact enclosure

Robust, space-saving design suitable for installation on a wide range of rail or industrial vehicles.

04

Quick-connect ports

Equipped with hose connections compatible with both 5 and 10 gpm tools for streamlined operation.

05

Durable construction

Built to withstand tough on-site conditions, ensuring long-term reliability in rail welding environments.
