Clip Driver CD100

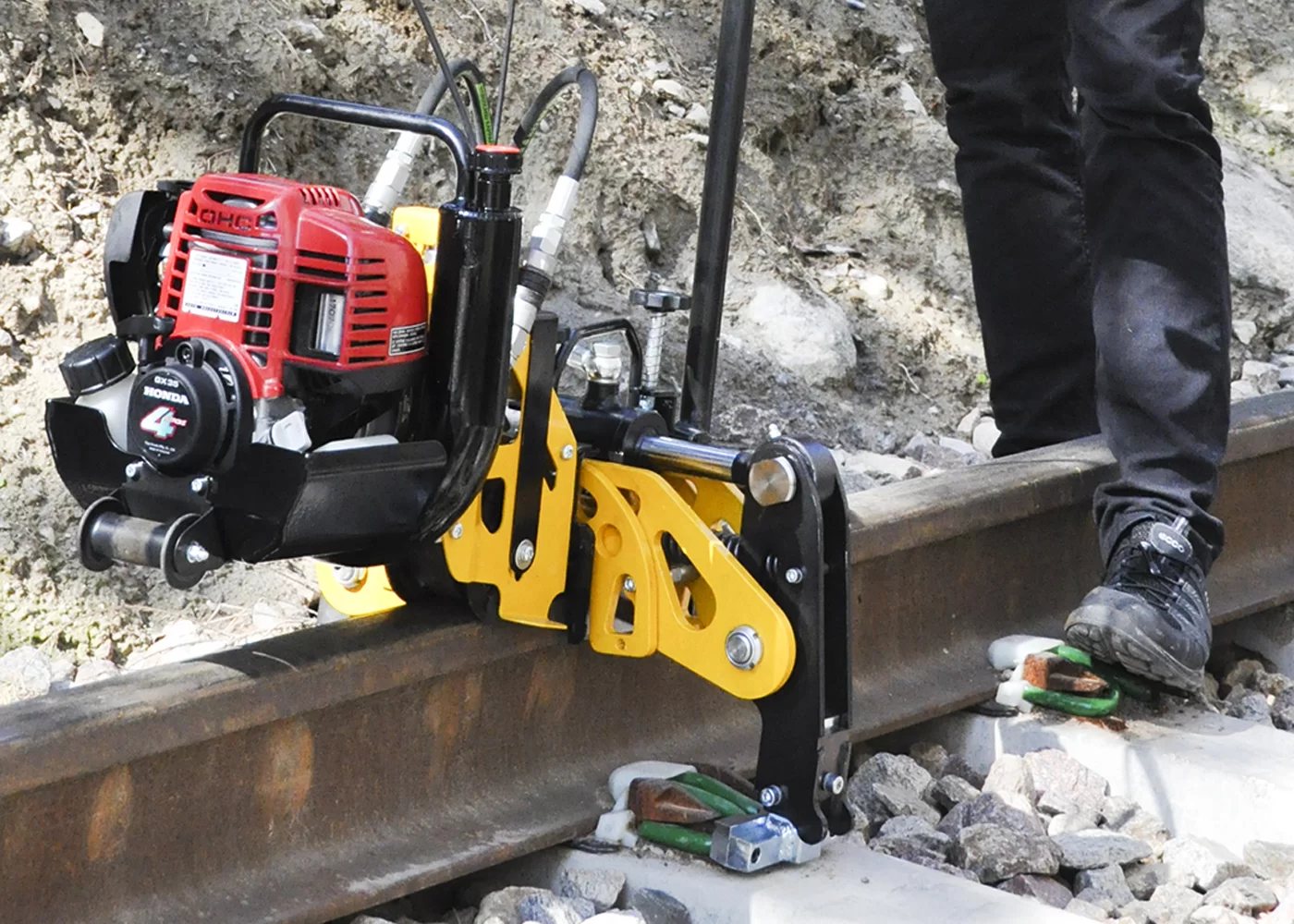

This versatile small clipping tool is perfect for clipping and declipping Pandrol Fastclips. The ergonomically designed CD100 is ideal for smaller clipping and declipping applications.

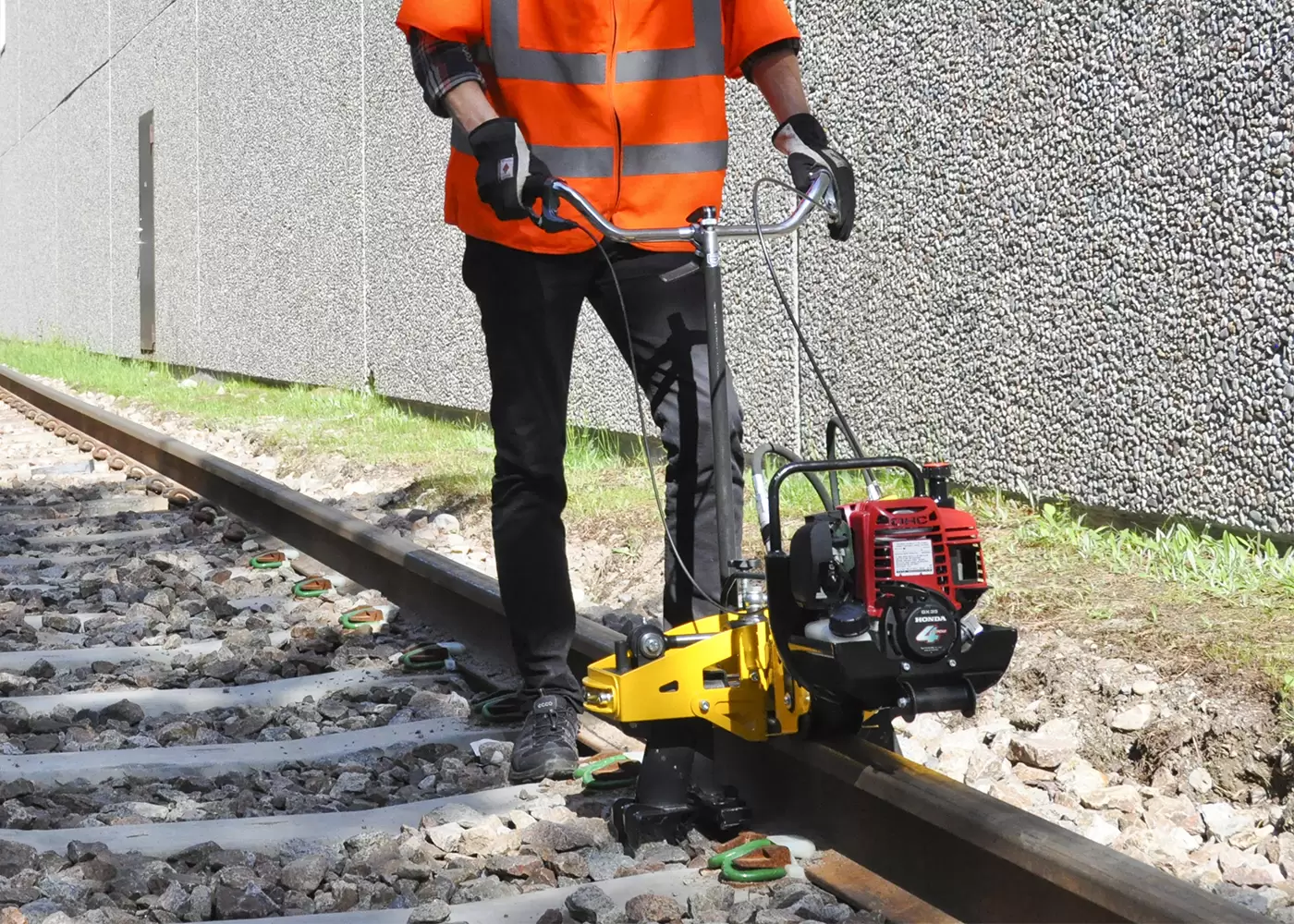

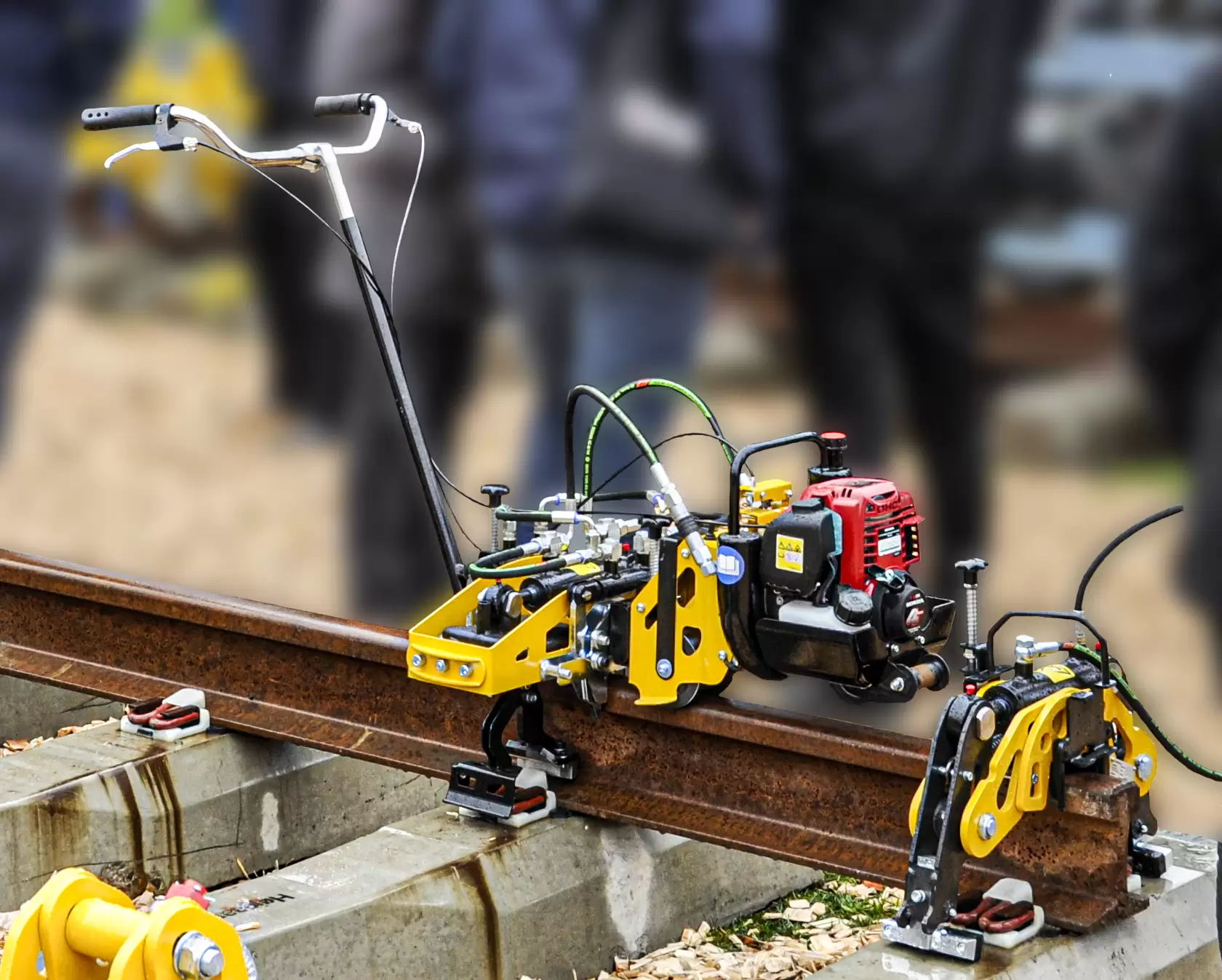

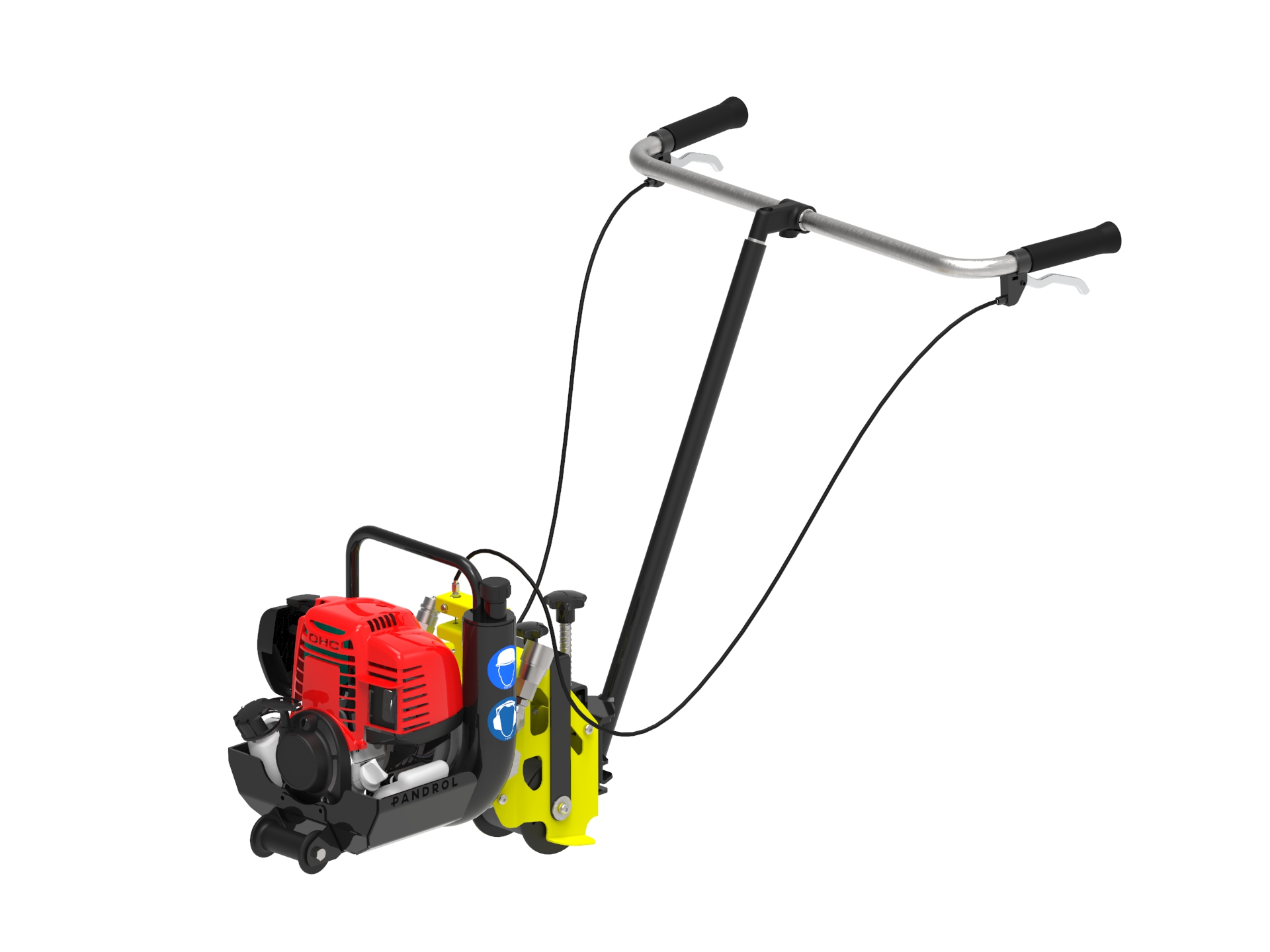

It has its own power supply and a weight bearing wheel that runs along the rail to prevent back injuries among operatives. Designed with a quick connect interface, the patented CD100 comes in three modules: the power pack, the clipping tool and the declipping tool. It can be coupled quickly and easily to other tools and can lift ties up to 10 mm if required.

Downloads

Technical Features

  • Modular build - each unit weighs approximately 20 kg
  • Clips one rail at the time
  • The modules are stored in 3 wooden boxes, which can easily transported
  • Has its own power supply and is designed with a quick connect interface

Advantages

  • Easy to use
  • Clips up to 10 ties per minute
  • Can be transported in a car or pickup
  • Small and portable tool that well suited to maintenance teams

Key Facts

Technical data
Weight 15 kg, 18 kg and 23 kg
Length 580 mm
Width 270 mm
Height 1000 mm
Engine max effect 1,0 kW
Clipping force 23 kN
Capacity 10 ties/min
  • Network Rail: PA05/03211
  • SNCF: 06044
