QTrack®

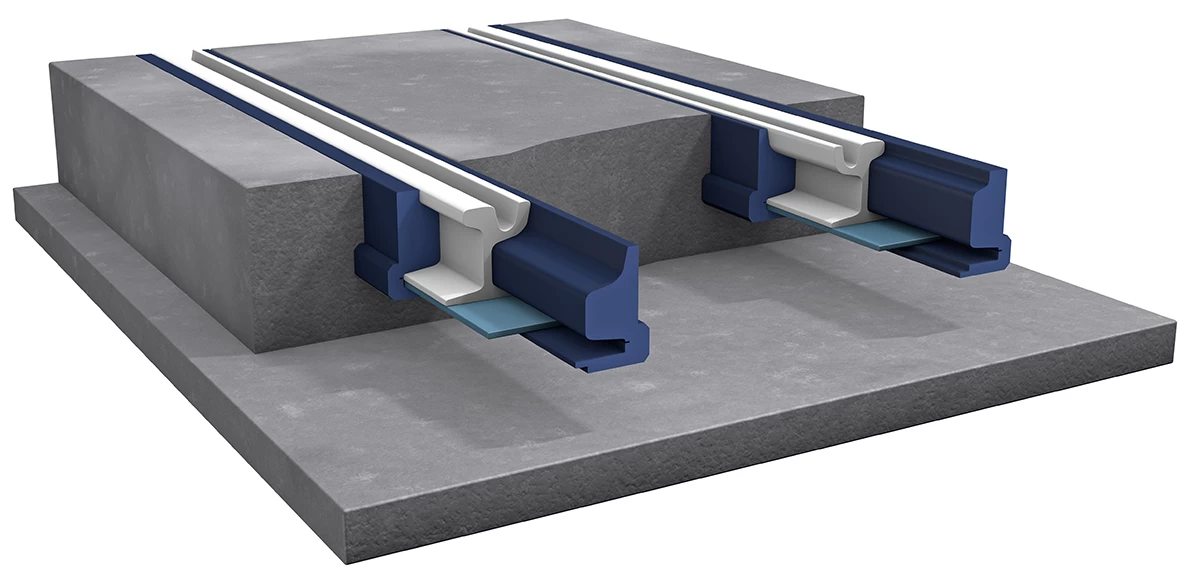

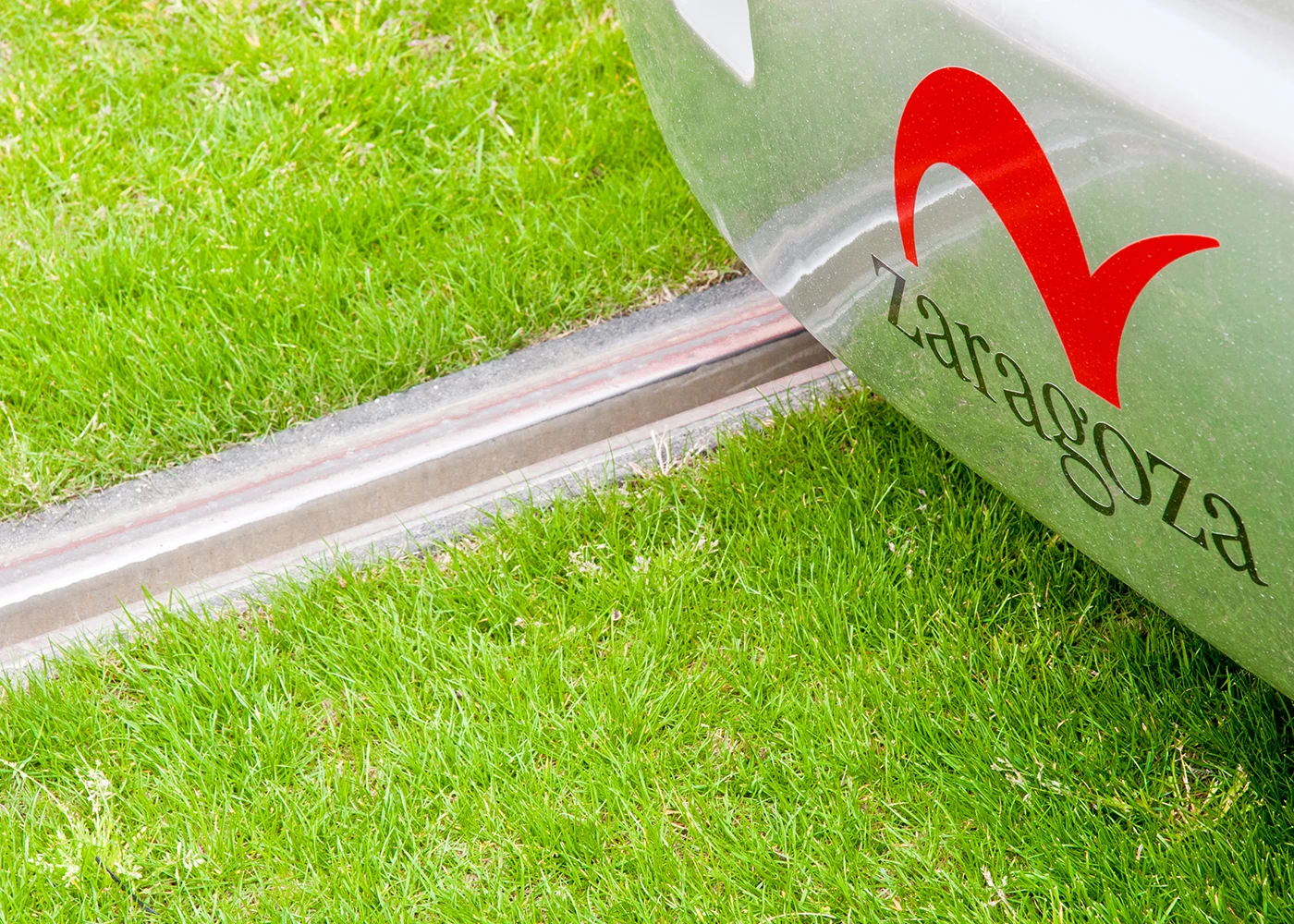

The Pandrol QTrack® is a continuously supported and fastened embedded ballastless track system, where the rail is completely encapsulated by elastic prefabricated resin bonded rubber profiles with a unique shape and adapted stiffness characteristics.

The system, when installed in concrete, provides support to all sides of the rail and allows stringent vertical and lateral support criteria to be met, and at the same time offers vibratory and electrical decoupling from its surroundings.

Downloads

Technical Features

The Pandrol QTrack® system is an embedded recycled rubber solution which utilizes a top-down installation method
The systems allows adjustable stiffness level to achieve the specific attenuation levels required

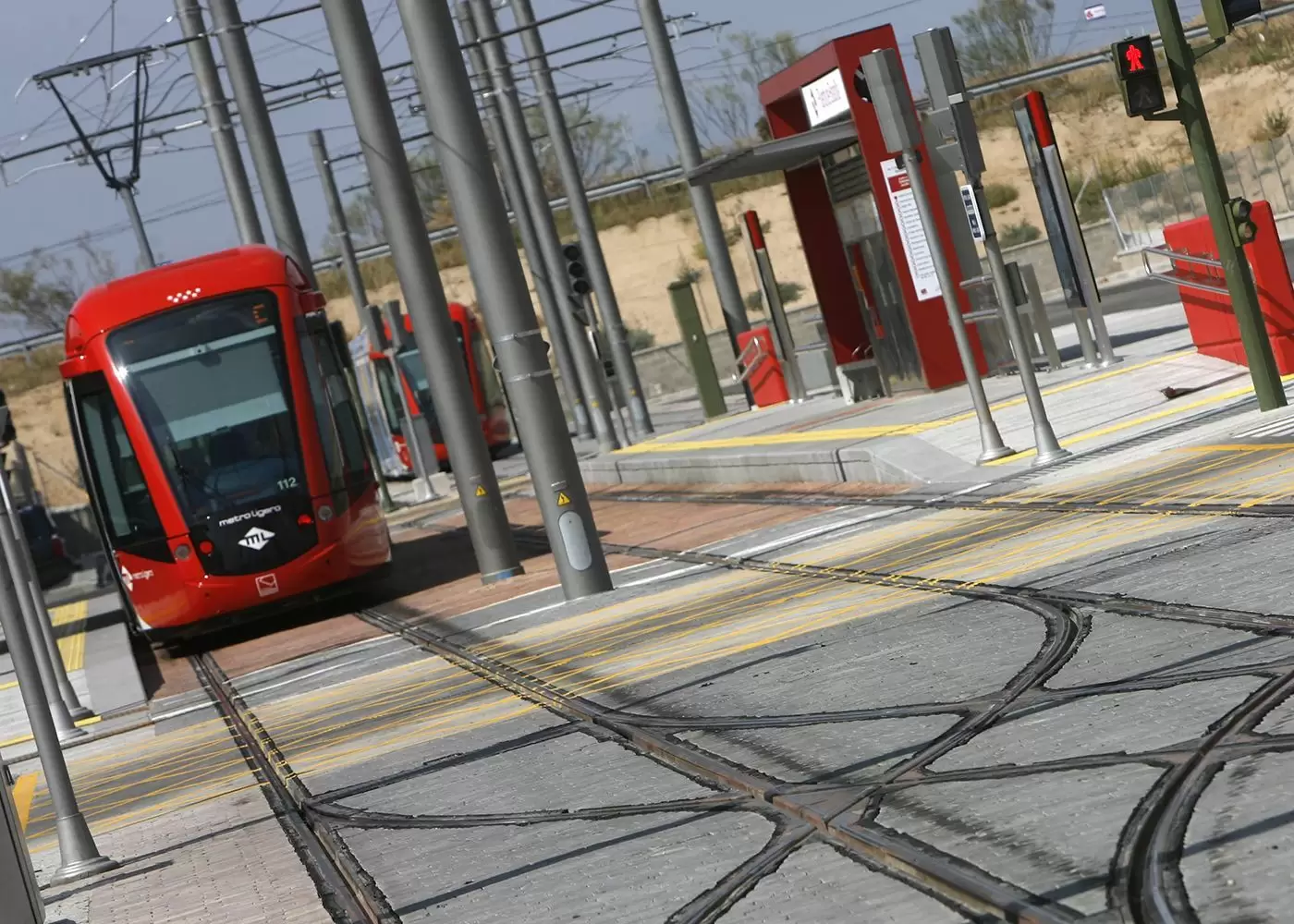

Pandrol QTrack® Switches & Crossings system provides customized full elastic encapsulation of switches and crossings in prefabricated recycled rubber elements

Advantages

Designed for rapid installation, QTrack® has an installation rate of up to 144 lmst/day/work-group
Rail corrugation is controlled due to homogeneous stiffness of the track which results in less grinding activities (reducing maintenance and increasing track longevity) and lower vibration emissions due to better track quality

Key Facts

Installation Techniques

Pandrol QTrack® JIG: The rails are encapsulated on site and then levelled and aligned by means of custom made installation QT JIG’s
Pandrol QTrack® BEAM: Rails are delivered to site already encapsulated and embedded in a pre-cast, even curved, concrete beam
Pandrol QTrack® SLAB: The entire track, also in curve, is integrated within a reinforced concrete slab provided with a road finishing layer and accommodating drainage elements, electrical boxes, etc
