Track Transportation Equipment

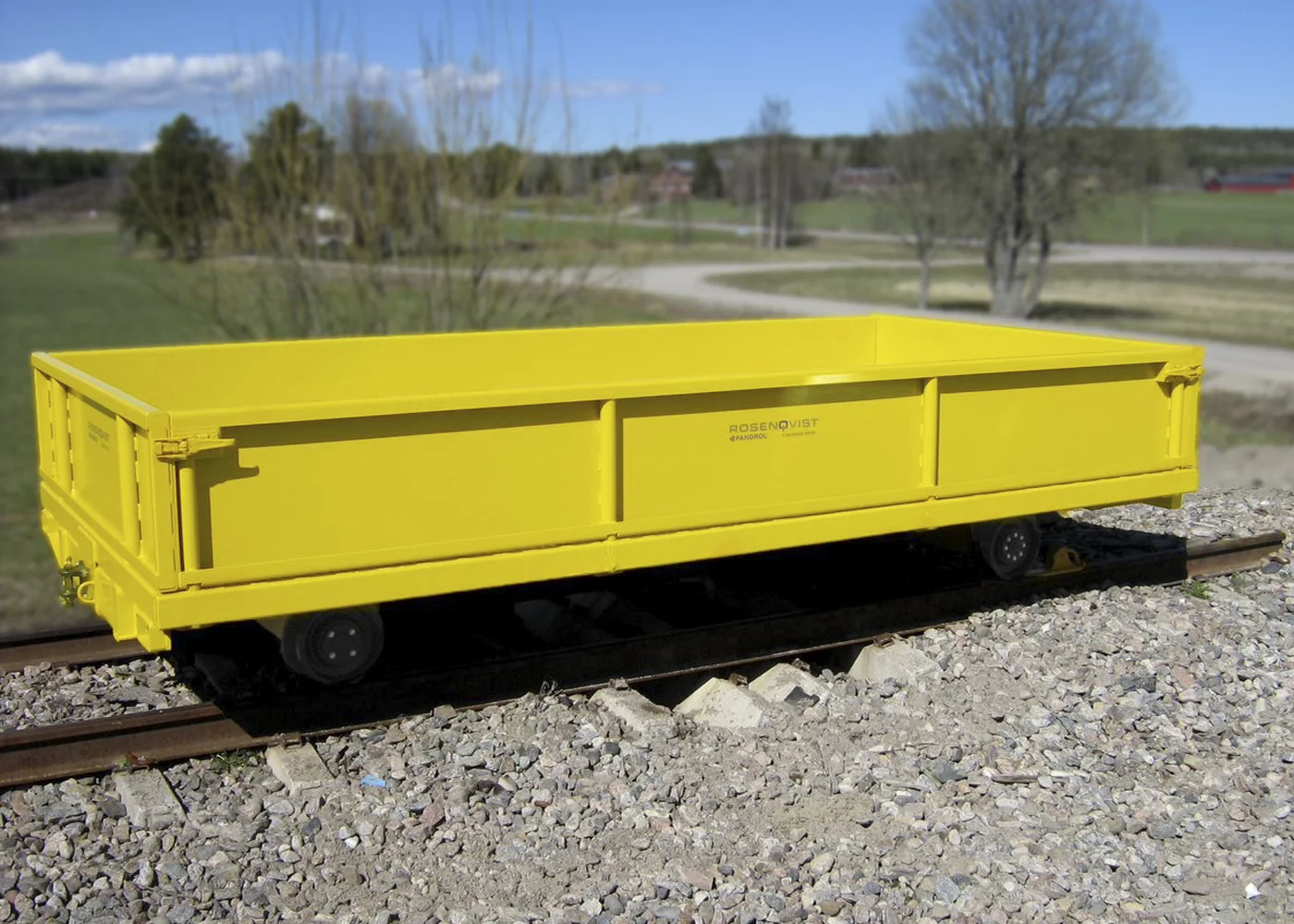

Rail Trailers RT3230/RT3235

Pandrol’s Rail Trailers RT3230 and RT3235 are designed to transport materials and equipment between railway work sites.

Contact us

Rail Trailers product overview

Manufactured by

Suitable for towing by a railroad vehicle, with a tow bar and a parking/emergency brake, Pandrol’s Rail Trailers provide a safe method of moving goods between work locations.

  • Rosenqvist Rail Trailers are equipped with safety features like lights and parking/emergency brakes, along with removable panels for easy loading and unloading.
  • Featuring a durable tow bar, integrated lifting ears, and cargo stakes (RT3230 model), the trailers ensure reliable and adaptable operation, with a lightweight option available in the RT3235 model.
Contact us

Downloads

PRODUCT INFORMATION SHEET

Advantages of using Rail Trailers

01

Cost effective

Pandrol’s Rail Trailers are strong, robust and durable, making them a cost-effective, long-lasting solution.

02

A wide range of applications

They come in two sizes, with high loading capacities to cover most requirements.

03

Increased safety

Lights and a parking/emergency brake increase operator safety on site.

04

Easy loading and unloading

Removable side panels allow for ease of loading and unloading.

05

Reduced labour

The Rail Trailers streamline strenuous track maintenance and transportation tasks.

Technical features Rail Trailers

01

Safety features

Pandrol’s Rail Trailers are equipped with lights and a parking/emergency brake to increase operator safety.

02

Durable tow bar

A durable tow bar is fitted as standard.

03

Removable panels

The Rail Trailers have removable panels that allow for easier loading and unloading.

04

Lifting features

Safer lifting is enabled by integrated lifting ears in each corner and rectangular pipes underneath the Rail Trailers’ flatbed.

05

Stakes

Stakes for holding cargo are included with the RT3230 model.

06

Lightweight version

The Rail Trailer RT3235 has been engineered as a lighter weight alternative to the RT3230.

Tell us about your track project

Speak to an expert

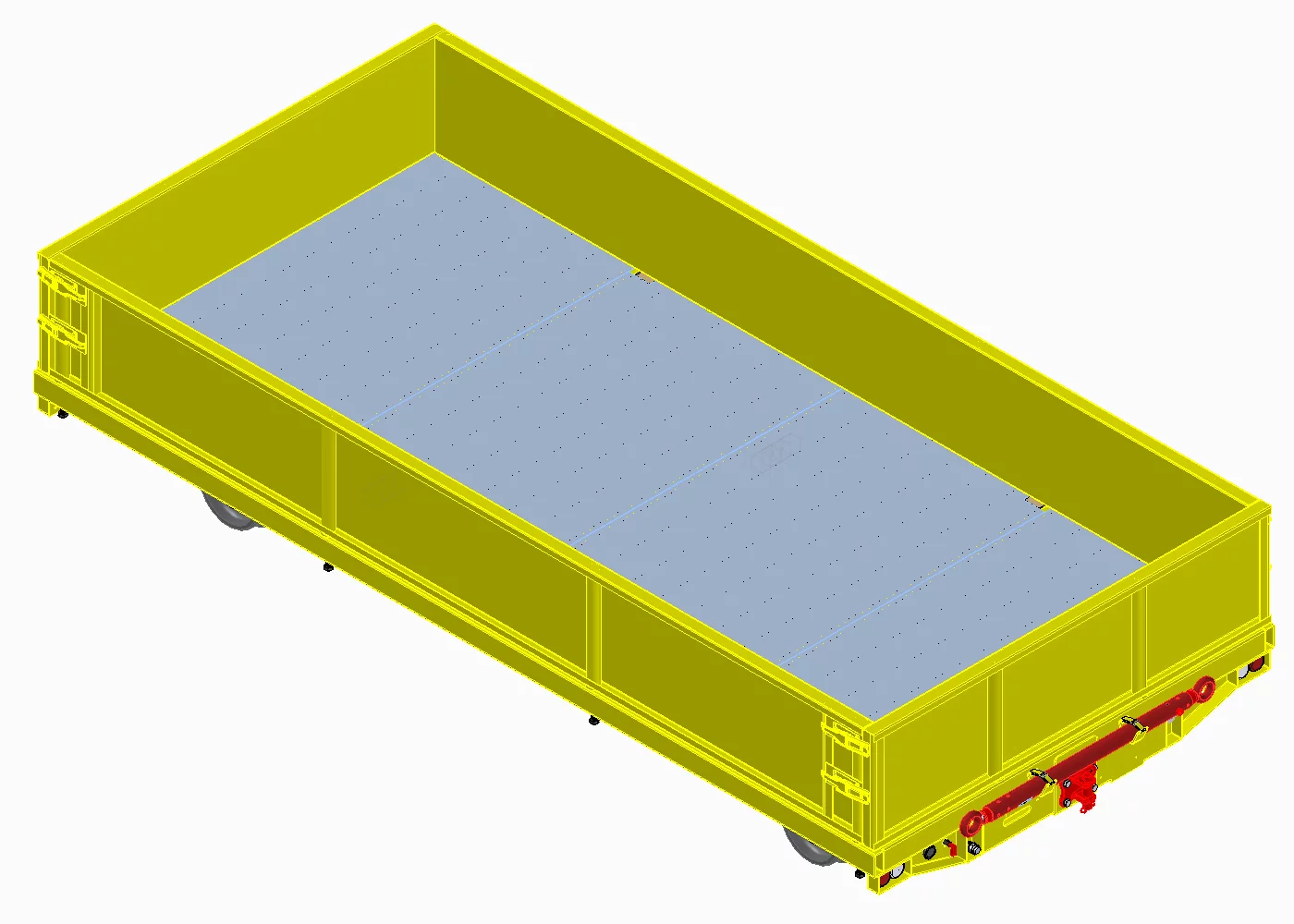

Specifications (with side panels)

RT3230 (side panels)
RT3230
RT3235 (side panels)
RT3235
Item number
RT3230 (side panels):
5010520
RT3230:
5010525
RT3235 (side panels):
32350001
RT3235:
2350002
Weight
RT3230 (side panels):
2685kg
RT3230:
2295kg
RT3235 (side panels):
820kg
RT3235:
700kg
Length
RT3230 (side panels):
5500mm
RT3230:
5500mm
RT3235 (side panels):
2500mm
RT3235:
2500mm
Width
RT3230 (side panels):
2560mm
RT3230:
2560mm
RT3235 (side panels):
1800mm
RT3235:
1800mm
Loading height
RT3230 (side panels):
5500mm
RT3230:
5500mm
RT3235 (side panels):
2500mm
RT3235:
2500mm
Gauge
RT3230 (side panels):
1435mm
RT3230:
1435mm
RT3235 (side panels):
1435mm
RT3235:
1435mm
Loading capacity
RT3230 (side panels):
17000kg
RT3230:
17000kg
RT3235 (side panels):
3500kg
RT3235:
3500kg
