Rapid Fit Frames

Utilising our extensive experience with mounting beams, we have developed a range of rapid fit frames for use with our modular AWS magnets.

Rapid Fit Frames product overview

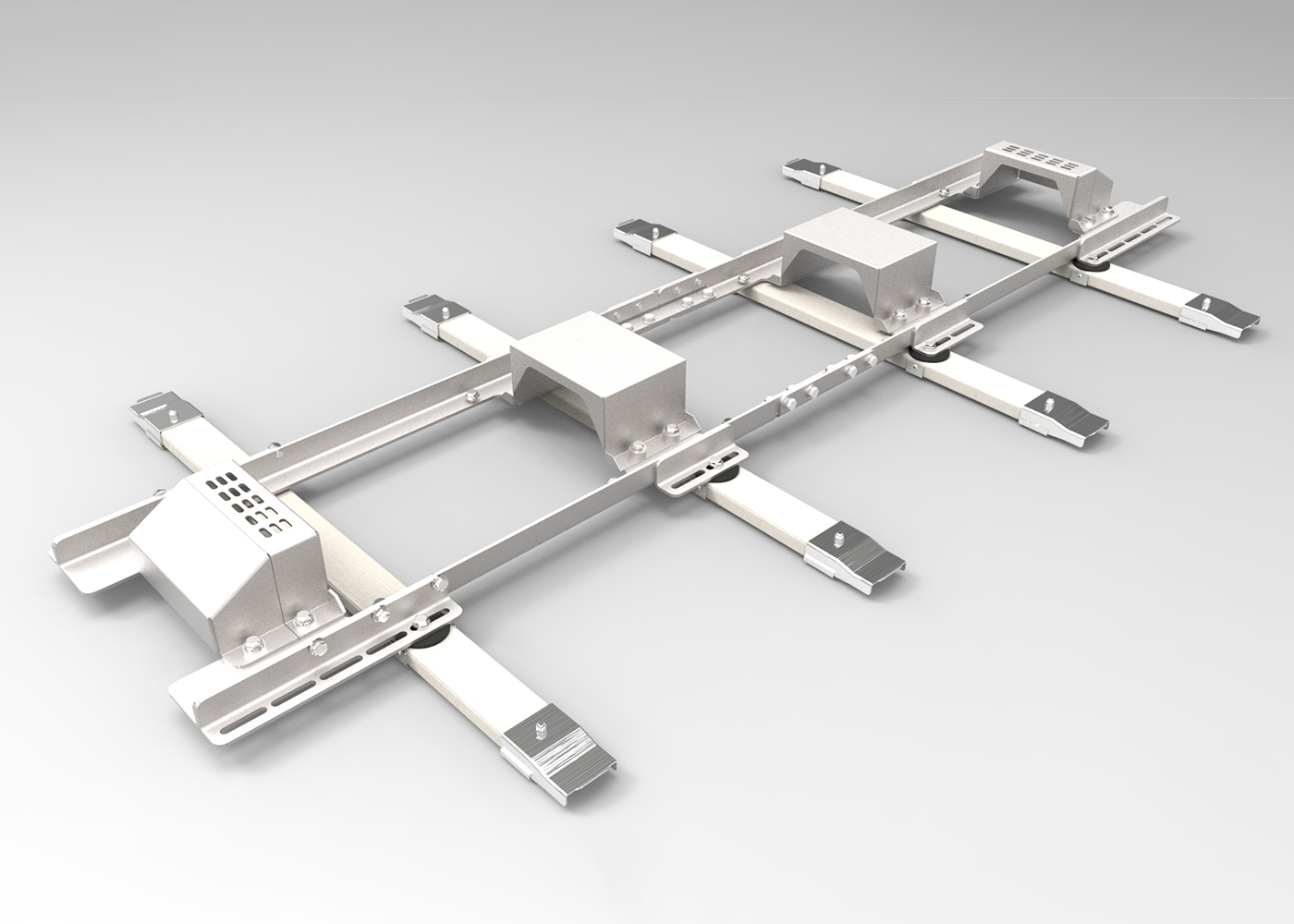

The frames can be configured for single, double or triple magnet installations and are easily installed on a wide range of rail fastening and sleeper designs.

  • The system comprises of glass-reinforced plastic beams fitted over and around the existing rail fixing and galvanised steel stringers supporting and securing the AWS Magnets.

Benefits of the Rapid Fit Frames

01

Reduced track time

Reduces the need for track possession

02

Simple

Removes the need to drill into concrete sleepers

03

High resistance

High resistance to chemicals and climatic changes

04

Reduces manpower

Reduces manpower requirement for installation and maintenance

Technical features of the Rapid Fit Frames

01

Compatible

Can be installed on a wide range of sleeper types and rail fastenings

02

Easy installation

Does not require specialised tools to install or remove

03

Can be retrofitted

Can be retrofitted in existing installations

04

Decreases vibration

Insulated and vibration resistant to EN50125-3
