Adjustable CableGuard

The Adjustable CableGuard is a ‘fit and forget’ product that prevents track circuit failures by creating an insulating layer between the rail, sleeper and cable.

Adjustable CableGuard product overview

The Adjustable CableGuard accommodates most rail types, with a unique locking system to allow easy yet secure fitment to the bottom of the rail.

  • It builds on the success of the original, rigid CableGuard design, which has sold over 1.2 million units worldwide
  • Built-in slots allow for the use of cable ties if preferred
  • he product is available in an overground version that is resistant to the effects of UV and in a flame-retardant material for use underground and in tunnels

Benefits of the Adjustable CableGuard

01

Simple

The Adjustable Clamp Guard’s simple, two-part design enables it to be installed in seconds without the use of tools, saving time and reducing labour costs.

02

Efficient

Cables are secured closer to the sleeper than with alternative products, reducing the risk of the cable moving and enabling efficient, professional cable routing.

03

Reduced risks

Improved electrical insulation reduces the risk of the cable being damaged through electrical contact with the rail.

04

Reliable

The Adjustable Clamp Guard secures and protects the cable, preventing cable wear through sleeper and rail abrasion and reducing the risk of signal and power failures. This in turn reduces service disruption and improves network reliability.

05

Versatile

Available in UV-stabilised and flame-retardant versions, the Adjustable Clamp Guard is ideal for use in both overground and underground/tunnel environments.

Technical features of the Adjustable CableGuard

01

Adjustability

The Adjustable CableGuard’s unique locking system enables simple and secure fitment to the bottom of the rail, ranging from 115mm to 152mm.

02

Overground and underground versions

The CableGuard is available in two variations: a UV-stabilised version for overground applications and a flame-retardant version for use in underground and tunnel environments, with more stringent fire and smoke requirements. Both have been designed to meet international requirements.

03

Slots to accommodate cable ties

Integrated slots can accommodate the use of cable ties to further secure the cable.

04

Improved electrical insulation

The Adjustable CableGuard is made from an insulating material that reduces the risk of the cable being damaged through electrical contact with the rail.

05

Designed for simple, rapid installation

The CableGuard is installed by simply clipping both parts to either side of the rail foot, sliding together and pushing up to lock into place. No tools are required.

06

Maximising uptime

By preventing cable wear through sleeper and rail abrasion, the Adjustable CableGuard will reduce service disruption and the risk of signal failures, improving network reliability.

Tell us about your project

Speak to an expert

Related products

Balise Protection Device (BPD)

Balises are an integral part of the European Train Control System and Communications Based Train Control, providing critical safety data about the location of trains through communication with train-borne receivers.

Balise Protection Device (BPD)

View product

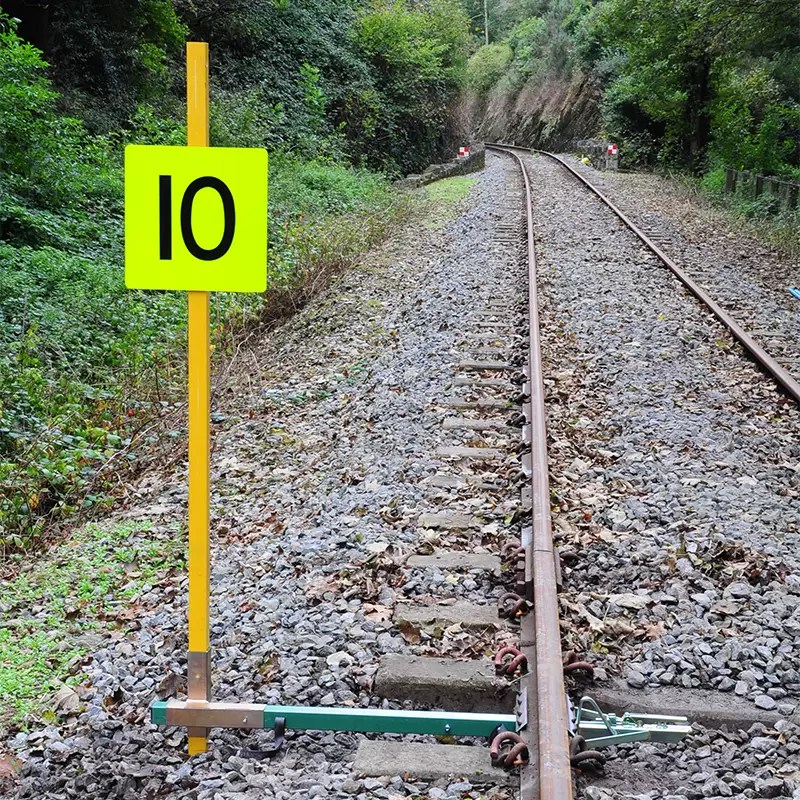

Signboard Supports

The supports are available in 2 m and 1.2 m variants, as well as 1 m for use with third rail.

Signboard Supports

View product

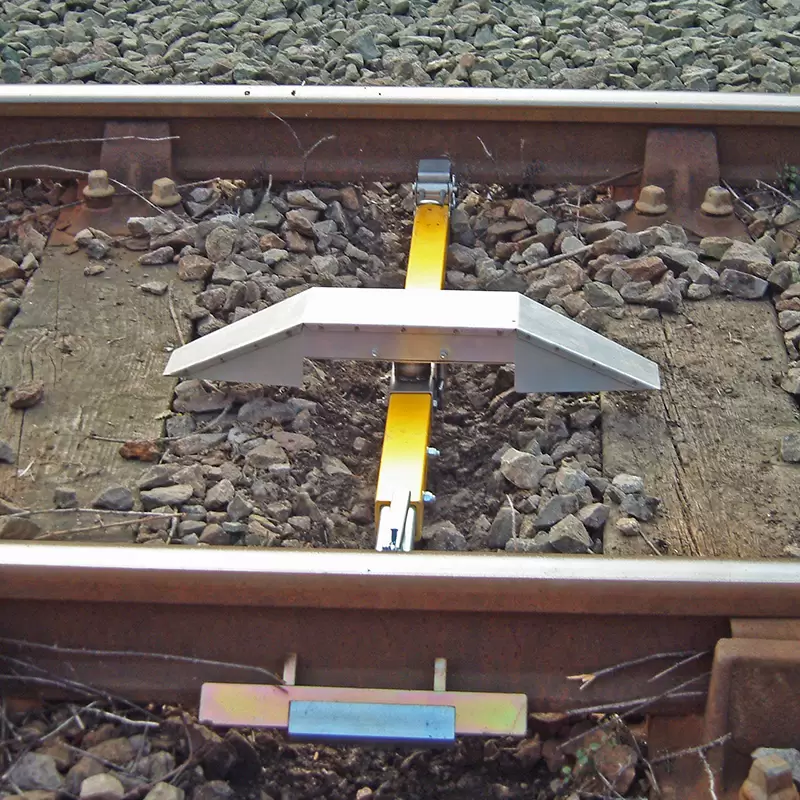

Temporary AWS Magnets

The magnets are available in standard strength (yellow) and extra strength (green) for third rail applications.

Temporary AWS Magnets

View product

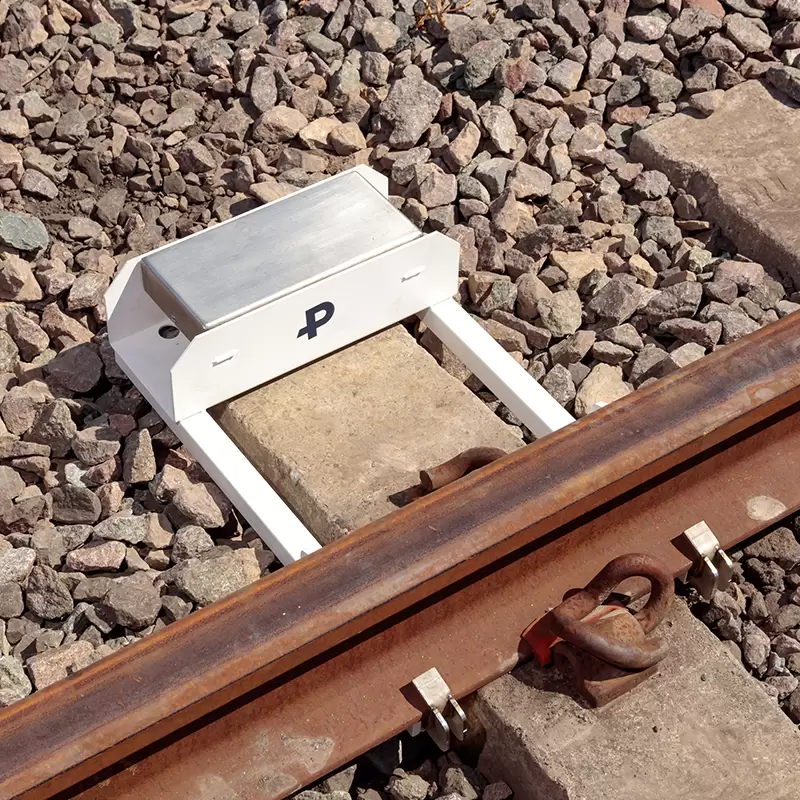

Automatic Power Control Magnet

A second magnet tells it to switch back on again afterwards. It is mounted on the end of a sleeper to align with the trainborne sensor.

Automatic Power Control Magnet

View product

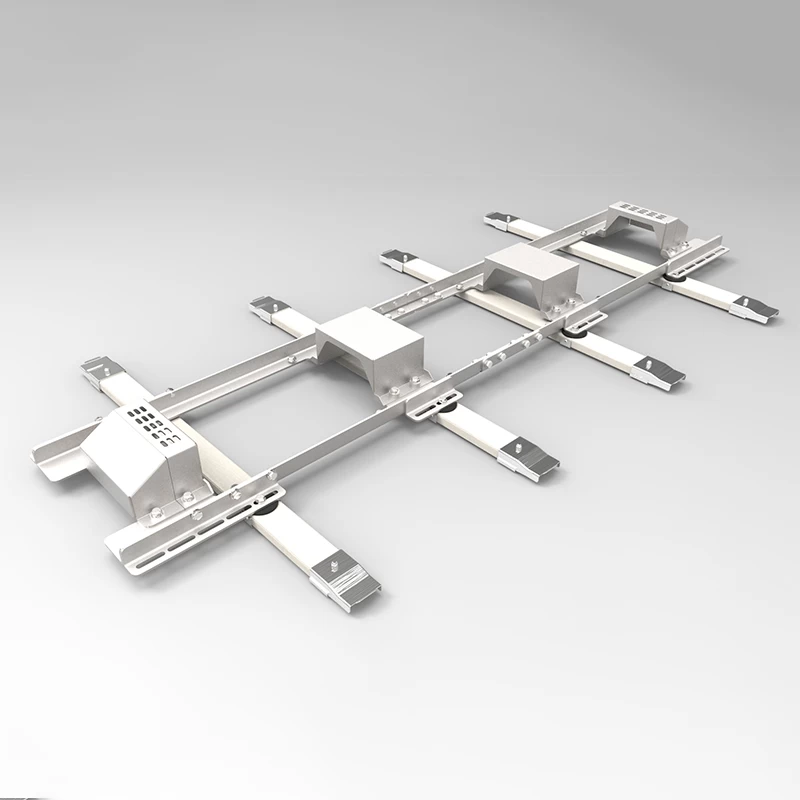

Rapid Fit Frames
