Rail and Sleeper Handling

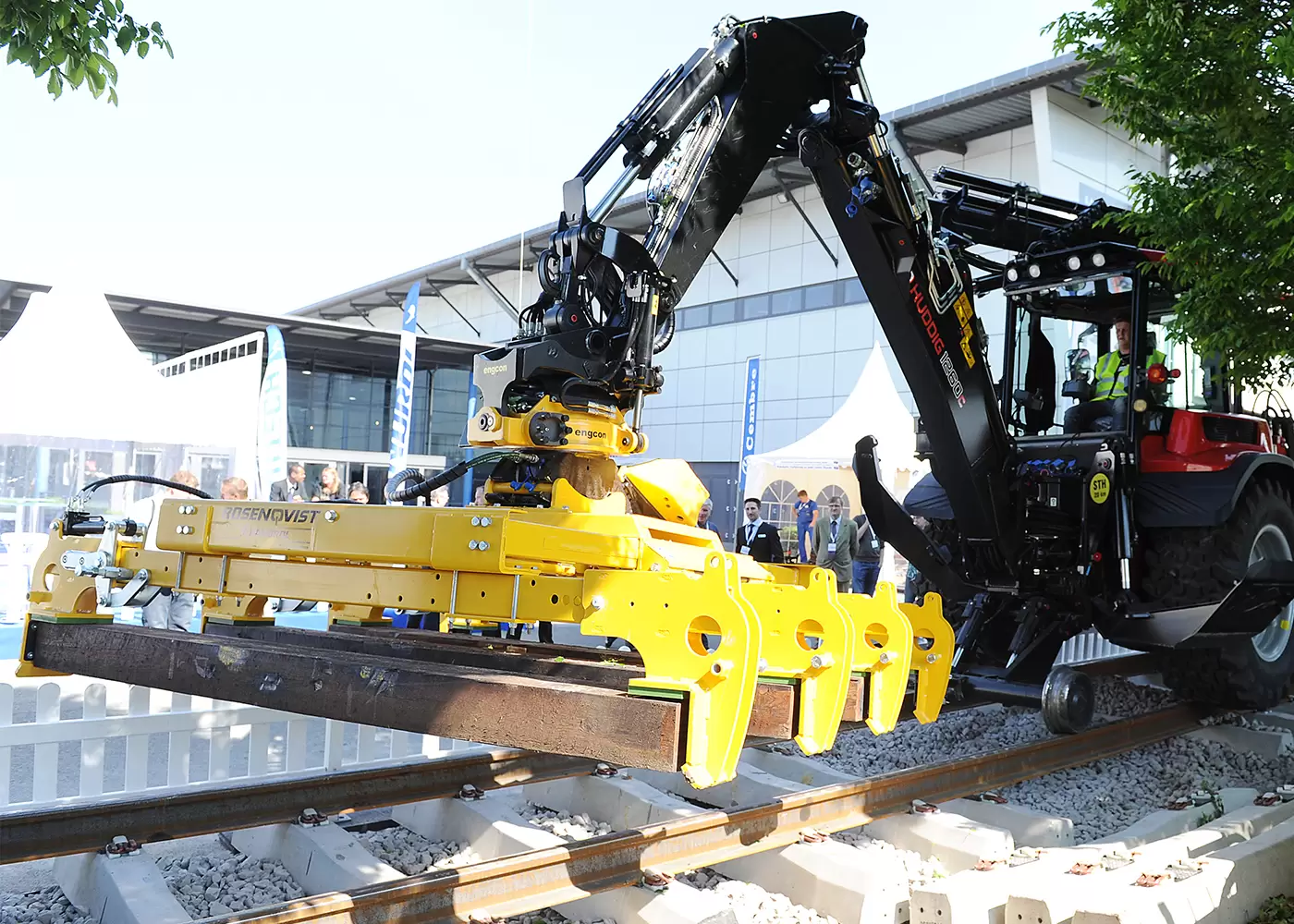

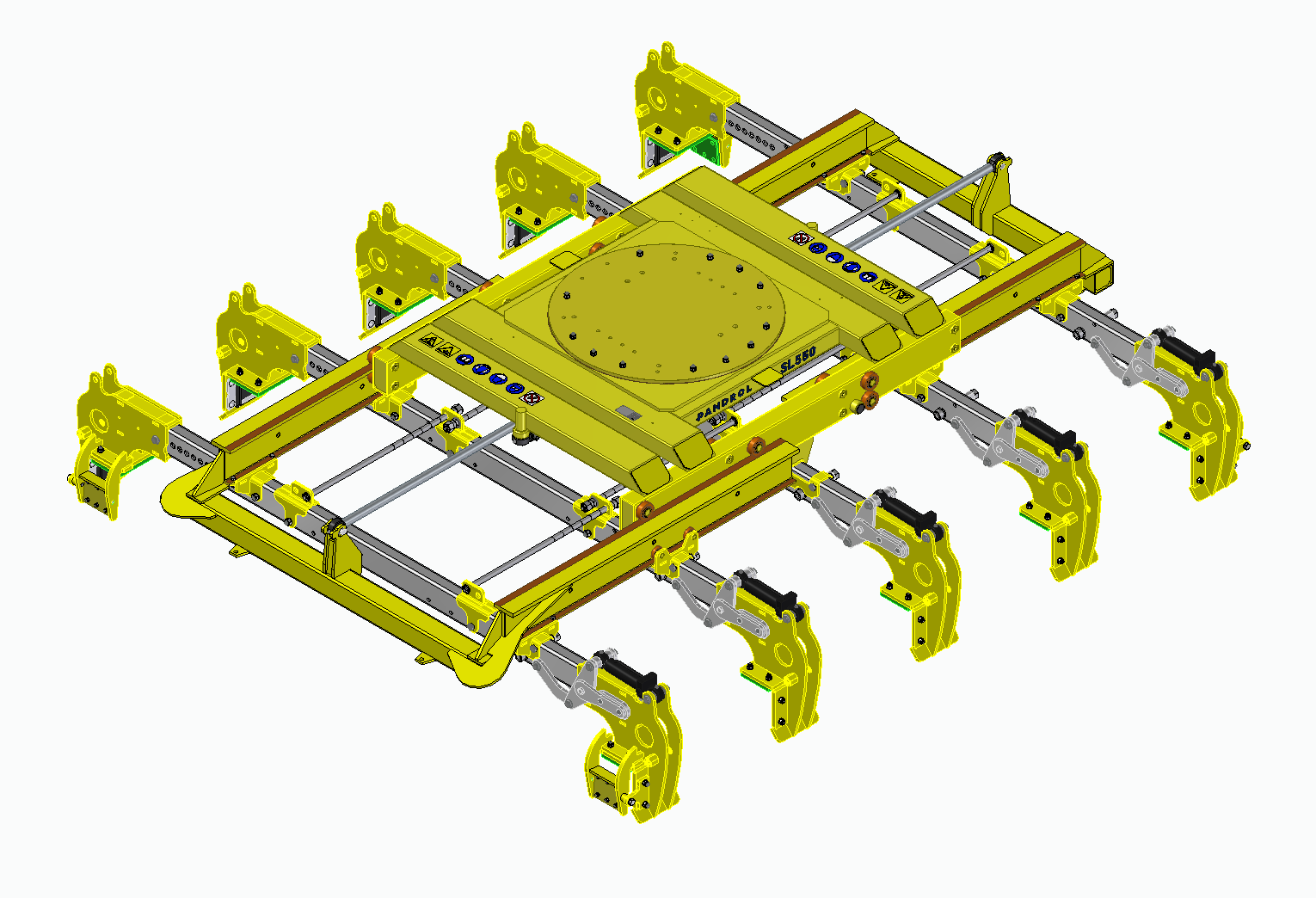

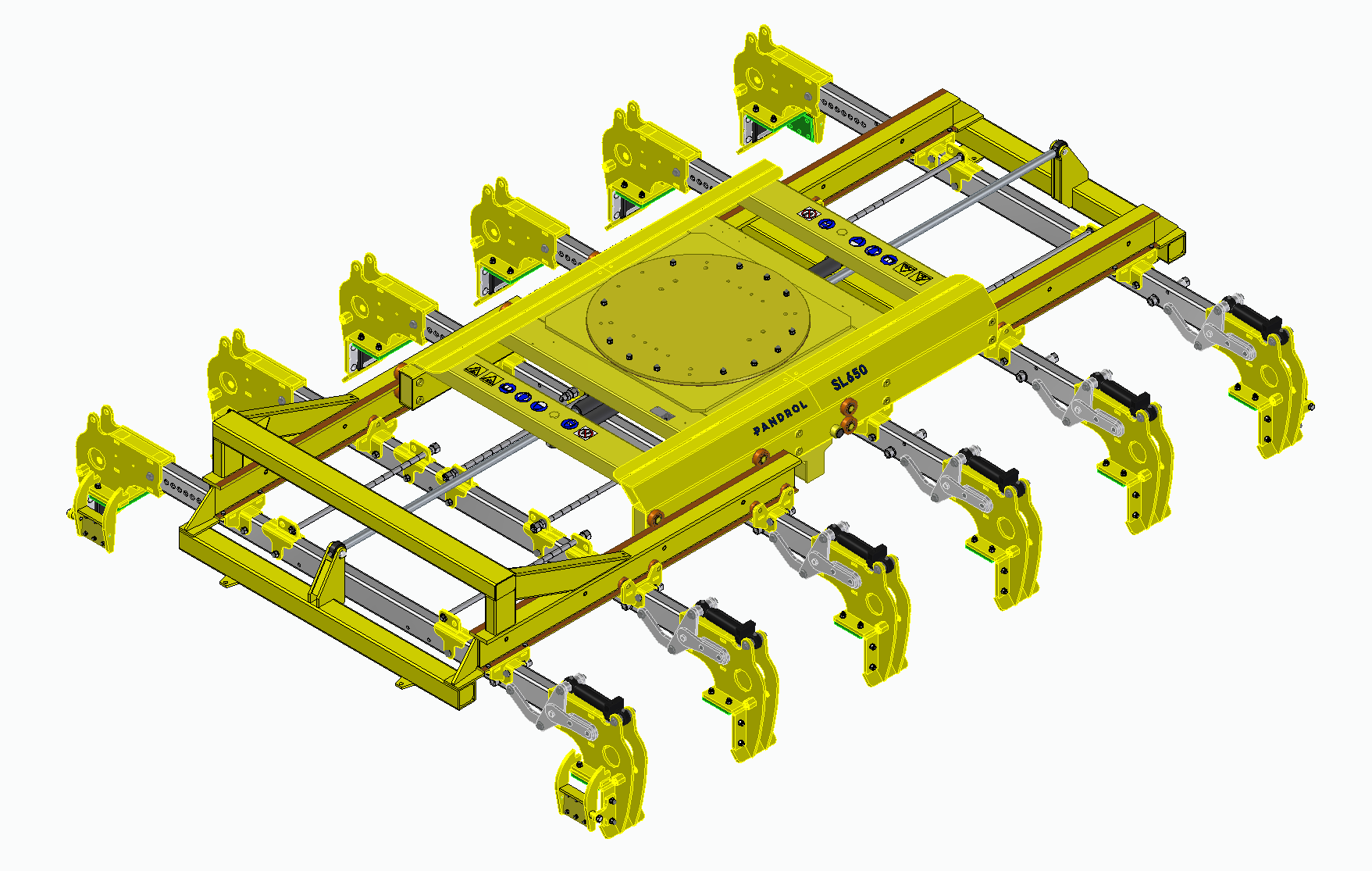

Sleeper Layer Attachments SL400/SL450/SL550/SL650/SL850

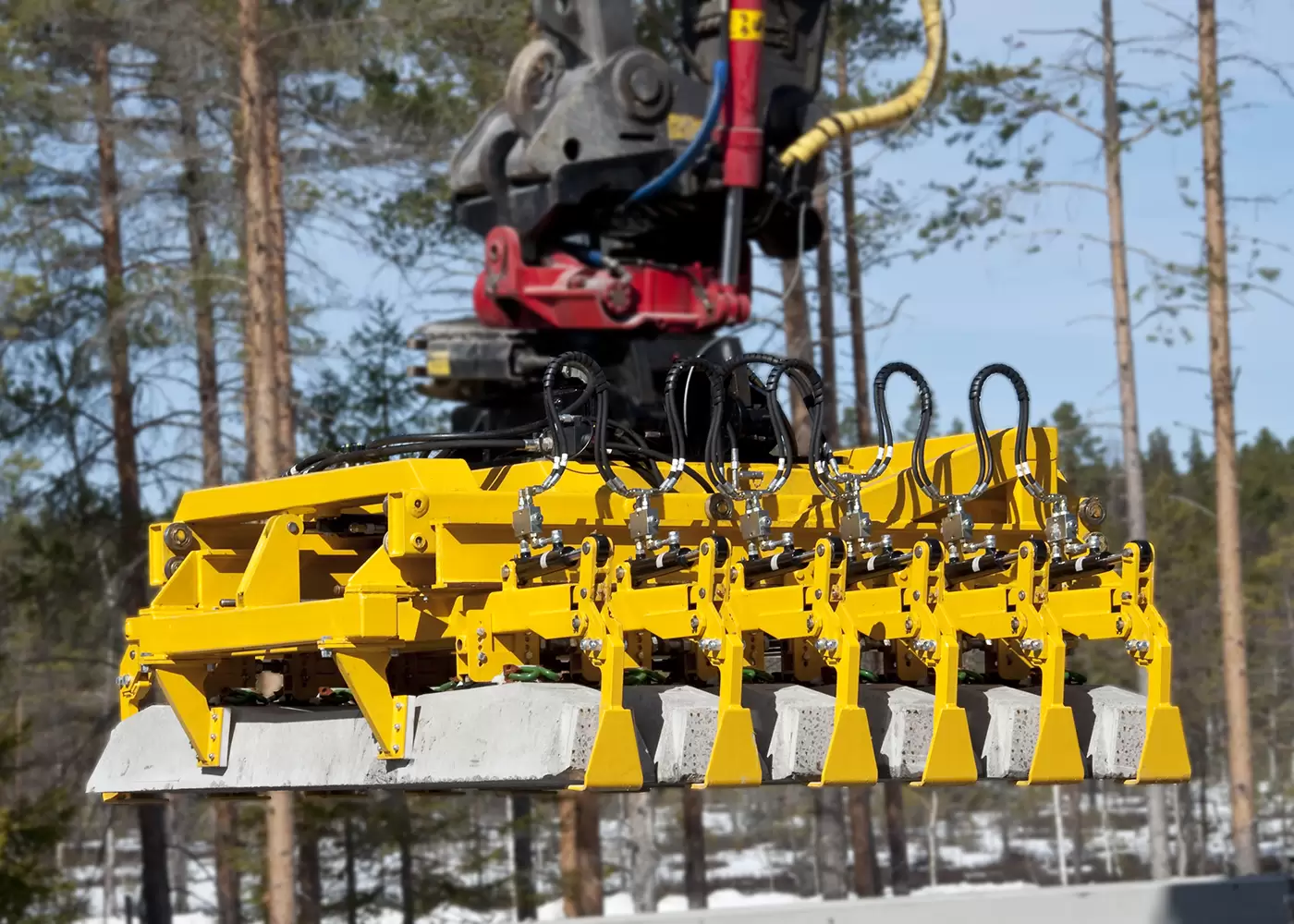

Pandrol’s range of carrier-mounted Sleeper Layers achieve fast, accurate sleeper laying and spreading, with an easily adjustable tool designed to fit most kinds of sleepers.

Sleeper Layer Attachments product overview

A telescopic frame makes the Sleeper Layers compact and safe to operate. A unique, patented linkage system ensures that the centre of gravity does not change during sleeper spreading. A unique, patented linkage system ensures that the centre of gravity does not change during sleeper spreading.

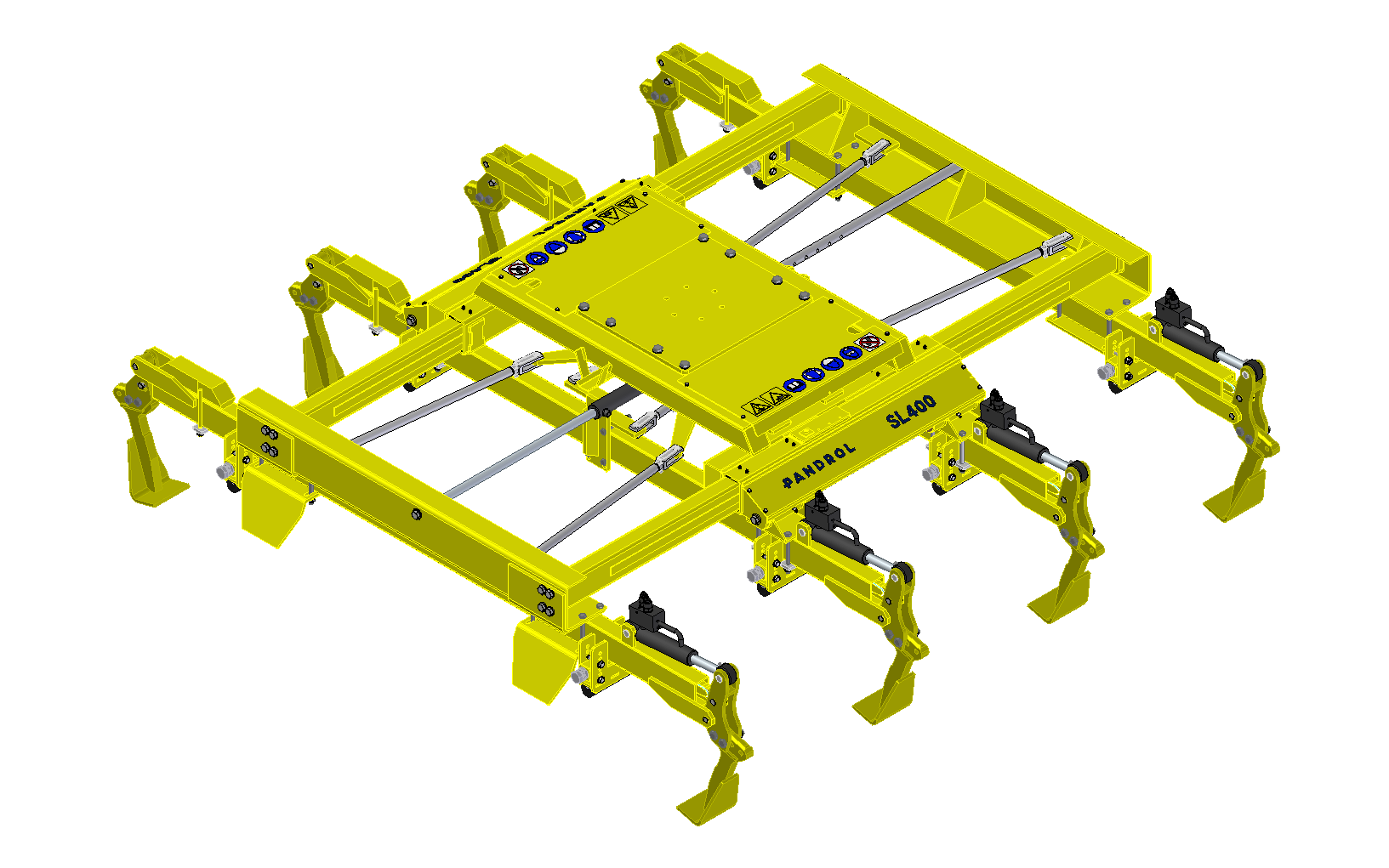

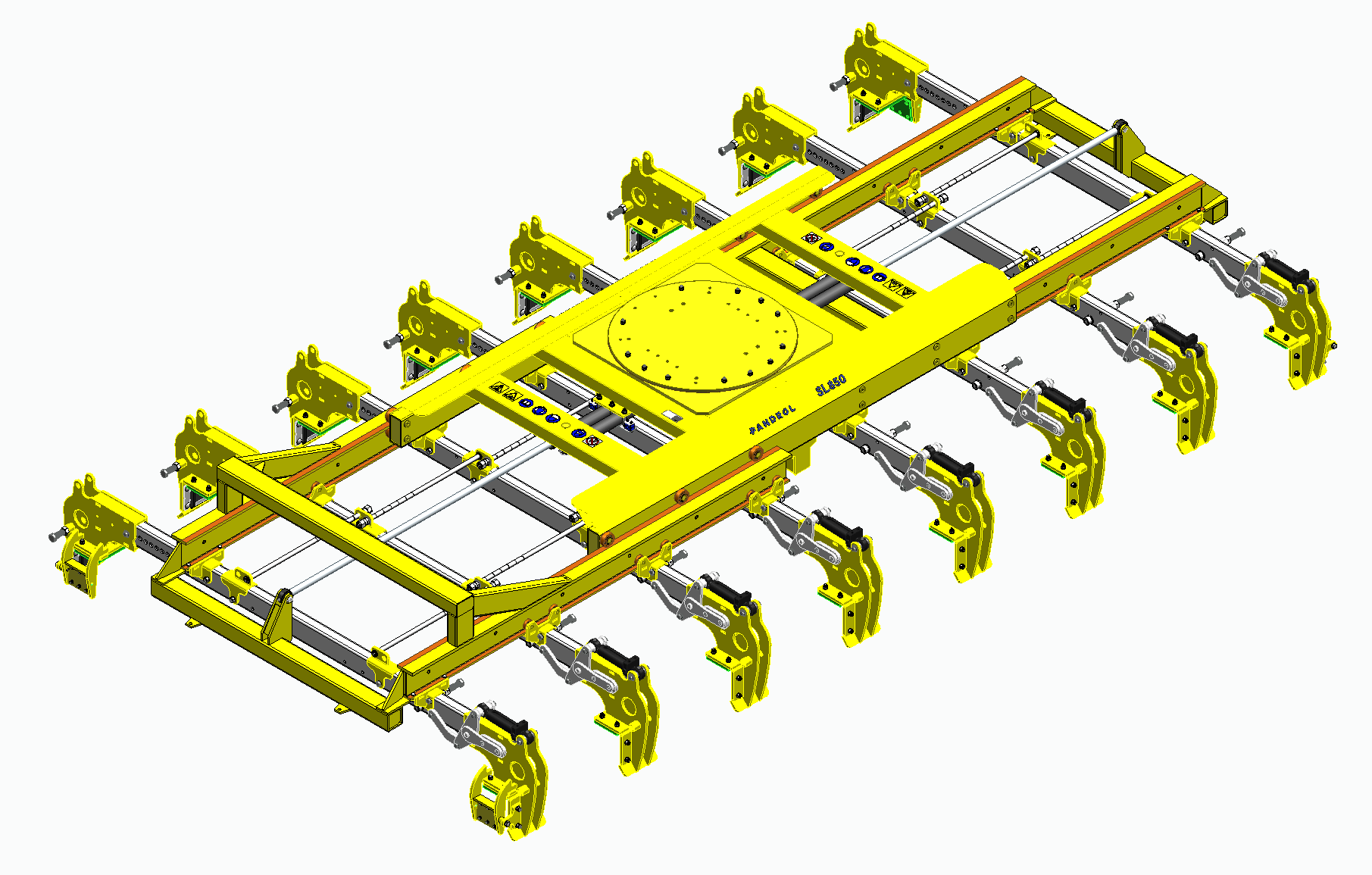

  • The SL400 can handle four sleepers simultaneously, while the SL850 can handle up to eight at a time.

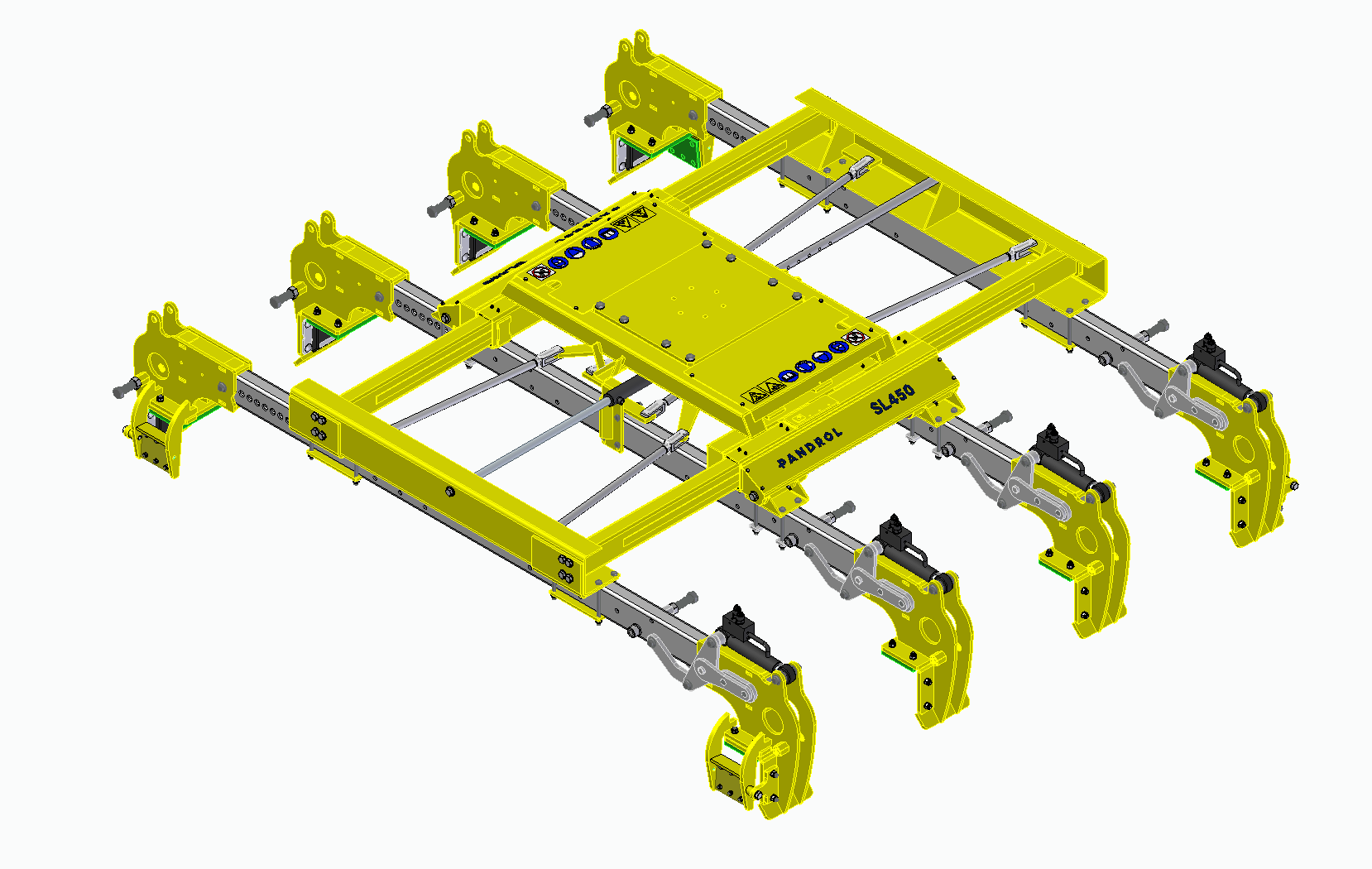

  • The SL400 and SL450 work in hydraulic sequence and no electricity is required on the carrier machine.
Contact

Downloads

Product Information Sheet

Benefits of the Sleeper Layer Attachments

01

High output

Pandrol’s Sleeper Layers achieve a high output of sleeper laying, from 60 to 150 metres per hour (dependent on the model).

02

Enhanced accuracy

A precision gauging hydraulic system enables the accurate placement of sleepers.

03

Unique linkage system

The Sleeper Layers’ unique linkage system ensures their centre of gravity does not change while spreading sleepers.

04

Easy transportation

The attachments are compact and easy to manoeuvre safely.

05

Time saving

Easy-to-change components increase efficiency and save time.

06

Efficient

Unlike similar tools, there is no risk of the unit hanging over adjacent track when grabbing sleepers from a rail cart.

Technical features of the Sleeper Layer Attachments SL400/SL450/SL550/SL650/SL850

01

Telescopic frame

A telescopic frame structure makes the Sleeper Layers compact and easy to manoeuvre safely..

02

Easy-to-change components

Quick-change gripping claws make changing components quick, simple and safe.

03

Compatibility

The Sleeper Layers are prepared for both rotator and rototilt and can be easily adjusted to fit most types of sleepers.

04

High-speed installation

When operated by a fully-trained, skilled operator working under optimal conditions, the Sleeper Layers can cover from 60 to 80 metres per hour (the SL400) to 120 to 150 metres per hour (the SL850).

05

Precision gauging hydraulic system

A precision gauging hydraulic system ensures the correct placement of sleepers, which can be set at 300–750mm. No electricity is required on the carrier machine.

06

Linkage system

A linkage system ensures that the Sleeper Layer’s centre of gravity does not change during sleeper spreading.
