Rail Fastenings Systems

TR System

The TR System is designed to provide an effective Theft Resistant solution for new or existing sleepers and baseplates.

TR System product overview

The TR feature is engineered between the e-Clip toe and insulator, with or without an additional cast spacer.

  • The system can be installed on sleepers originally designed for PR- and e-Clips, and does not require a purpose-designed shoulder

Benefits of the TR System

01

Highly regarded

Gives all the benefits and assurance of the well known and highly regarded e-Clip

02

Prevents fastening theft

Provides an effective means of deterring fastening theft

03

Cost-effective

A cost-effective approach to reducing theft in high-risk sections of track

Technical features of the TR System

01

Versatile

Can be installed on new or existing sleepers made for PR- and e-Clips

02

Simple

The TR System does not require any special feature on the cast shoulder

03

Theft Resistant Features

The Theft Resistant feature is based on interaction between the toe of the e-clip and the insulator (with/without a cast spacer)

Tell us about your project

Speak to an expert
Safe Driven (SD)

Designed to be delivered preassembled on the sleeper or slab element, SD can deliver higher rates of construction thanks to its efficient controlled clip guidance from parked to the
in-service position.

Safe Driven (SD)

View product

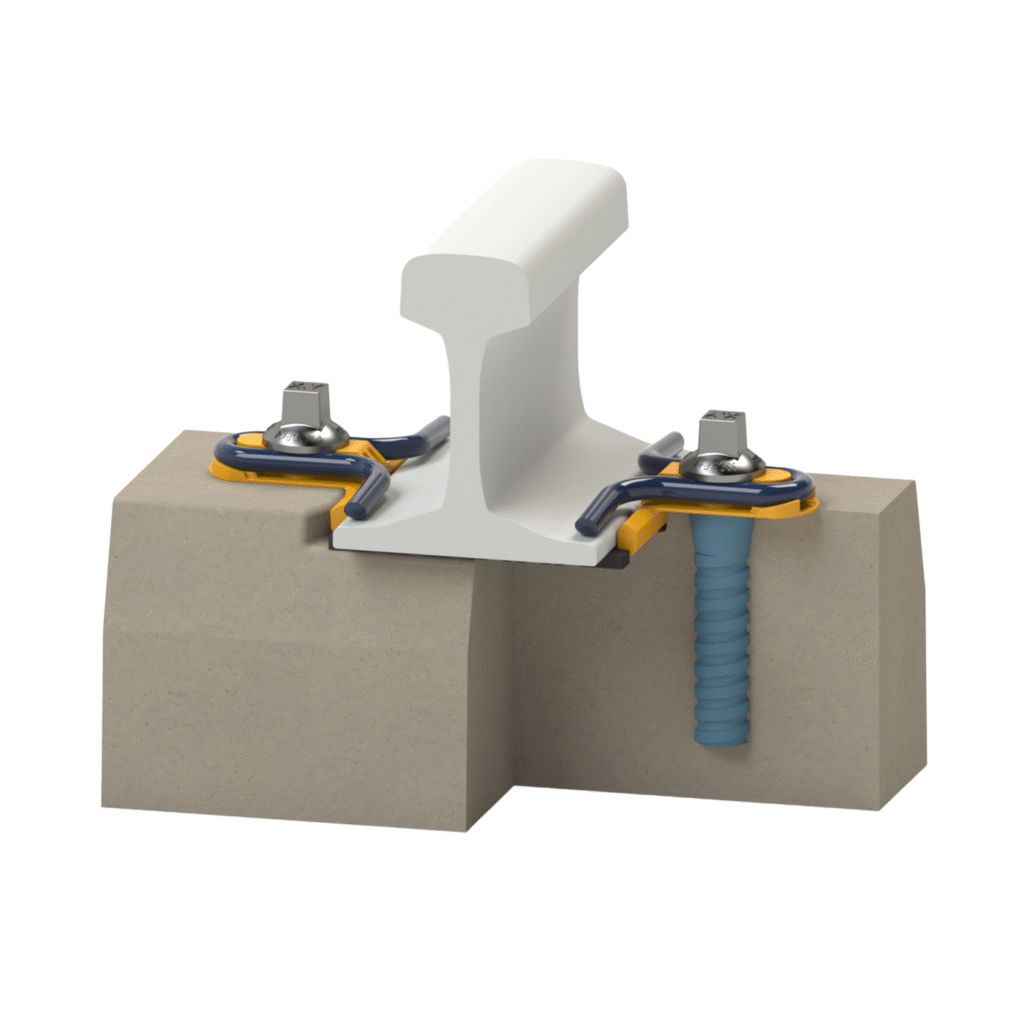

SD-E

SD-E is the lightest version of the SD product family (up to 40% weight reduction).

SD-E

View product

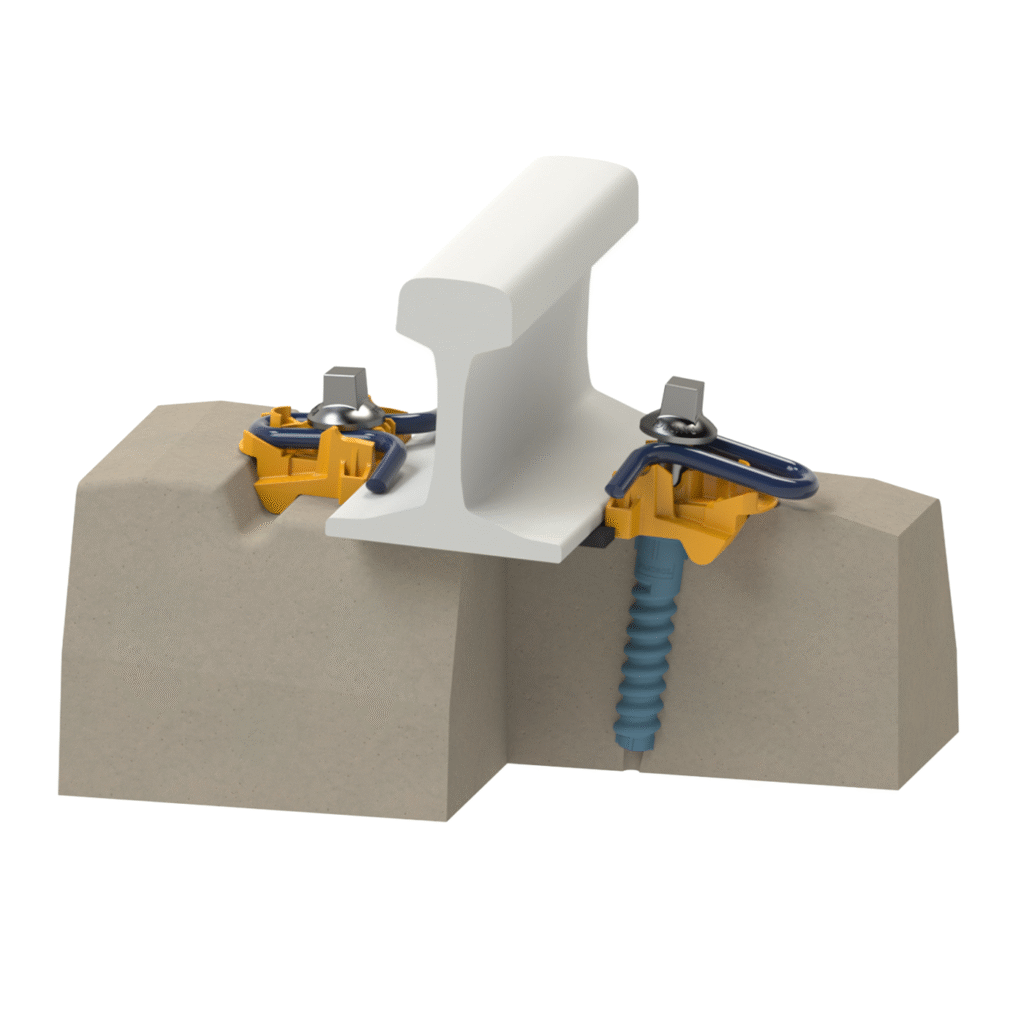

SD-RE

The system is characterized by a more compact and robust design with lower carbon footprint.

Its optimized geometry also enables automatic installation resulting improved efficiency and cost saving during installation and maintenance.

SD-RE

View product
Vanguard Common Interface

As its name suggests, the assembly fits on a common interface and is fully interchangeable with a range of fastenings, including FCA and DFC.

Vanguard Common Interface

View product
DFC Common Interface

As its name suggests, the fastening assembly fits on a common interface and is fully interchangeable with a range of fastenings, including FCA and Vanguard.

DFC Common Interface

View product
FCA Common Interface

The product can be pre-assembled and delivered to site captive on the pre-cast element, providing substantial cost savings.

FCA Common Interface

View product

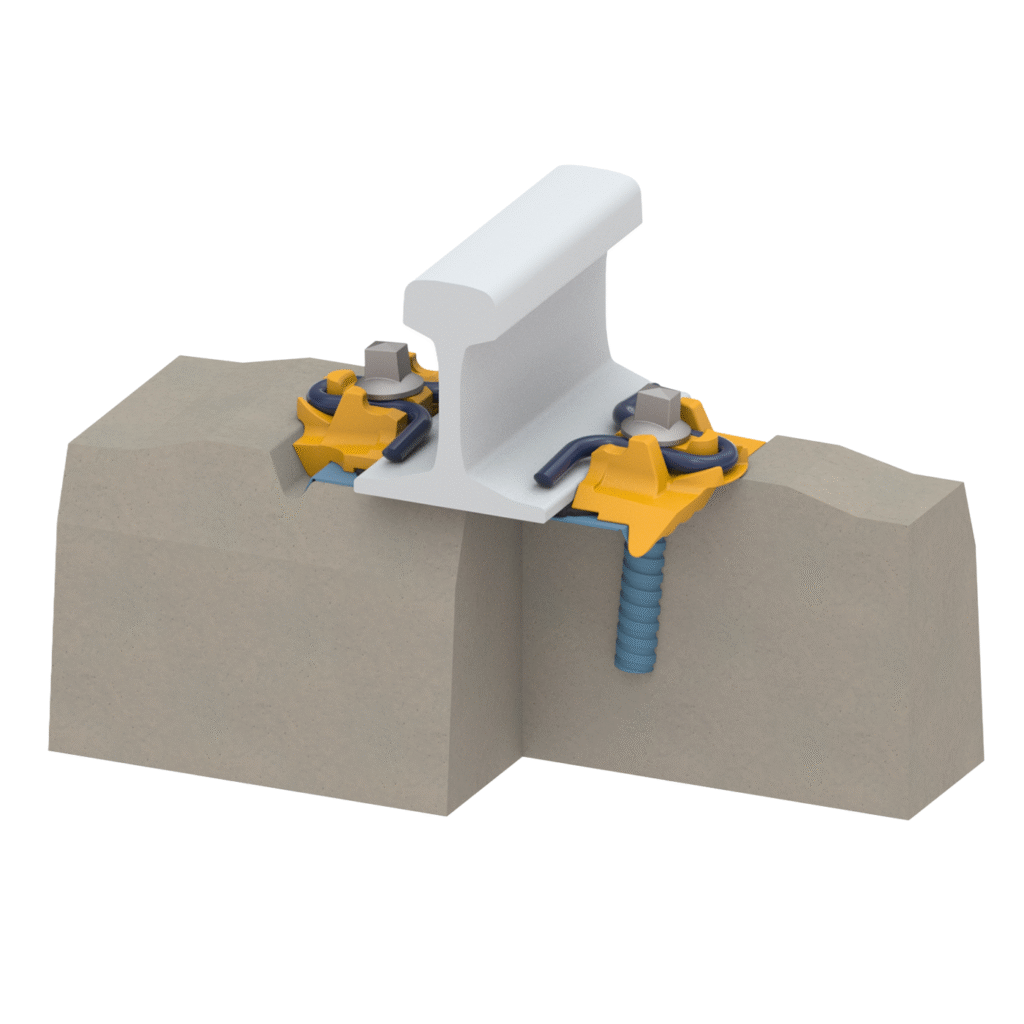

SD-HH
