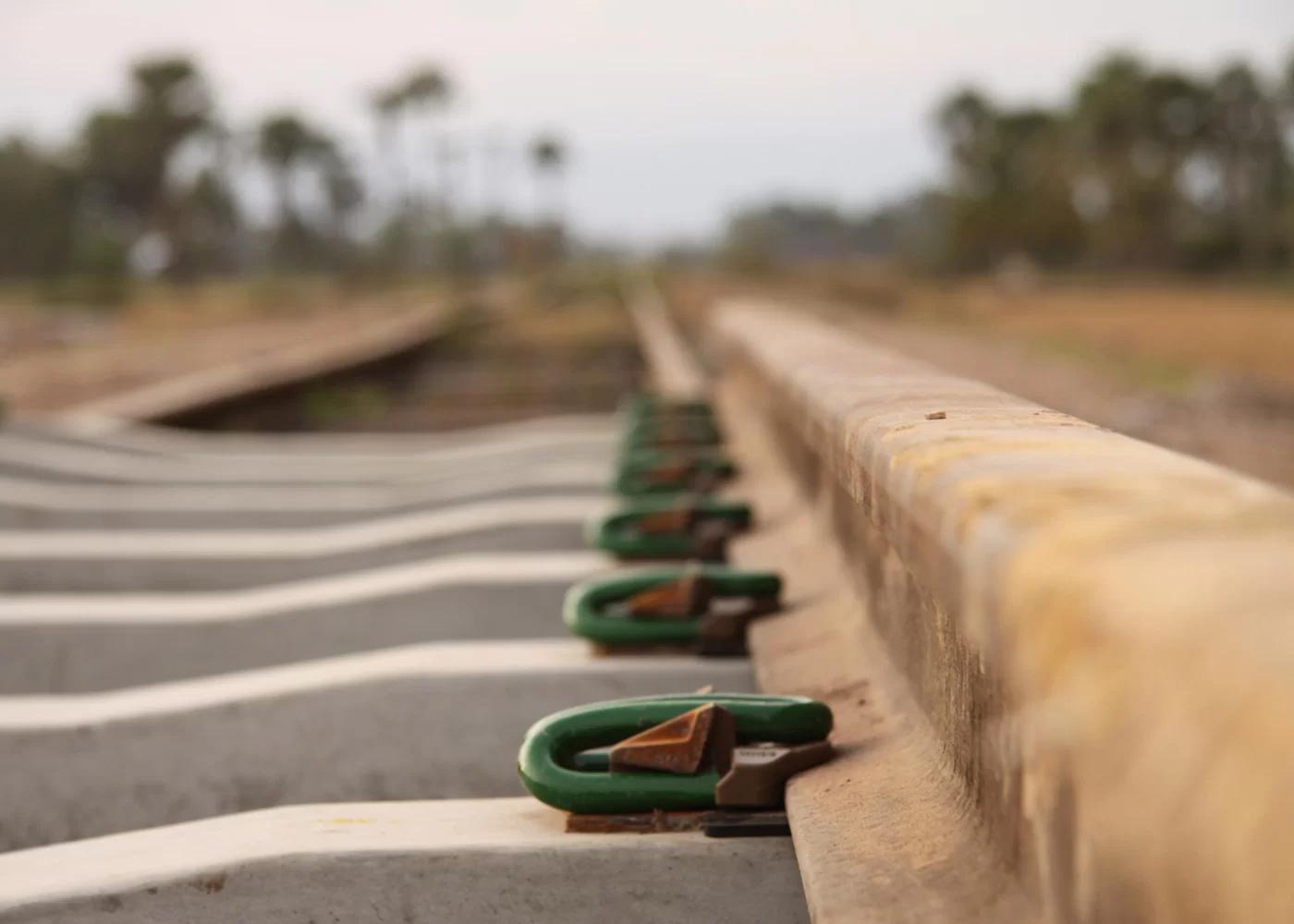

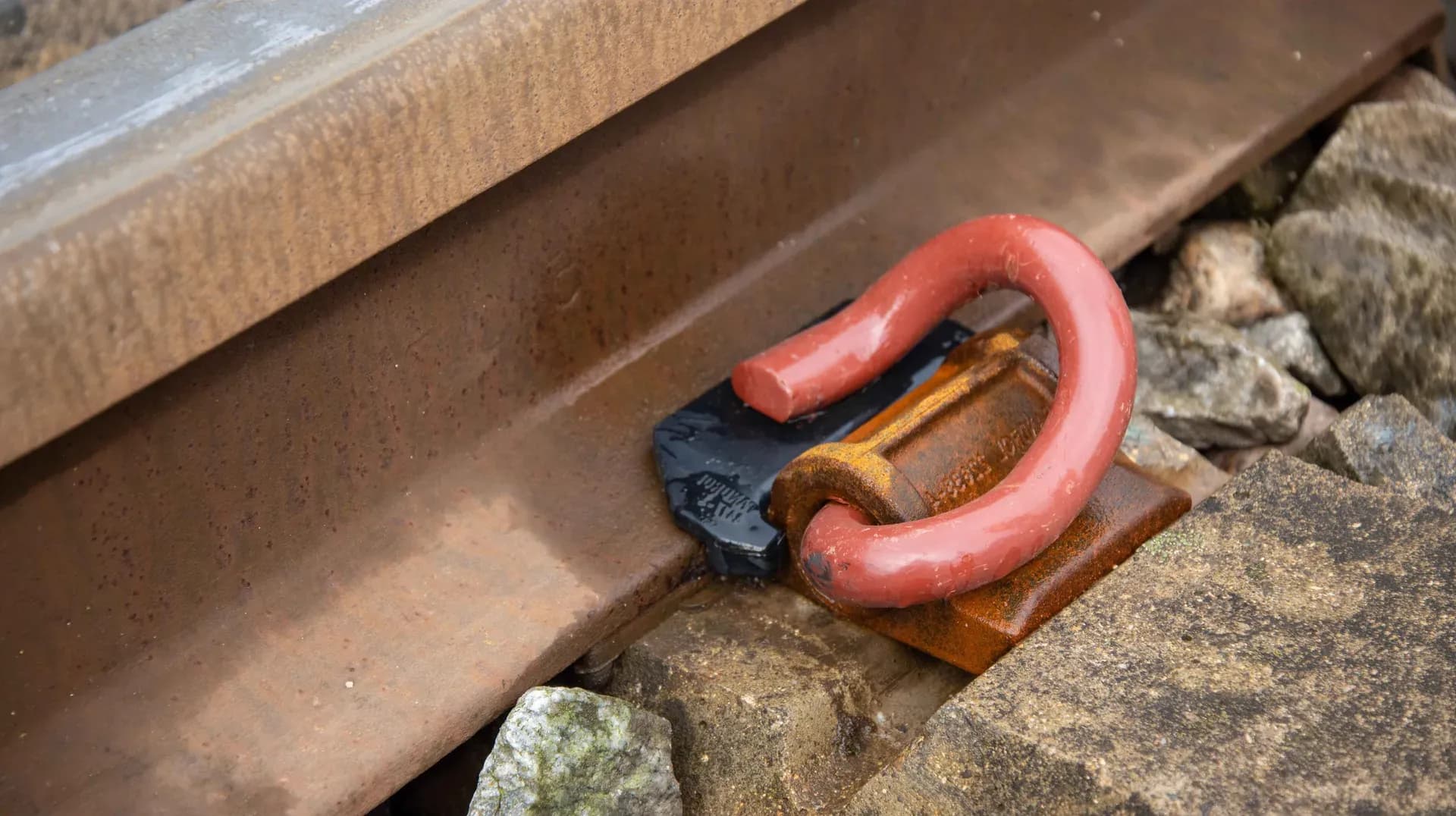

Pandrol Fastclip is an established, highly-regarded resilient, threadless rail fastening. Over the years, the Fastclip family has grown to include the FC, FD, FE Fastclip products, each of which has been designed to meet the technical and commercial demands of a specific area.



Fastclip product overview

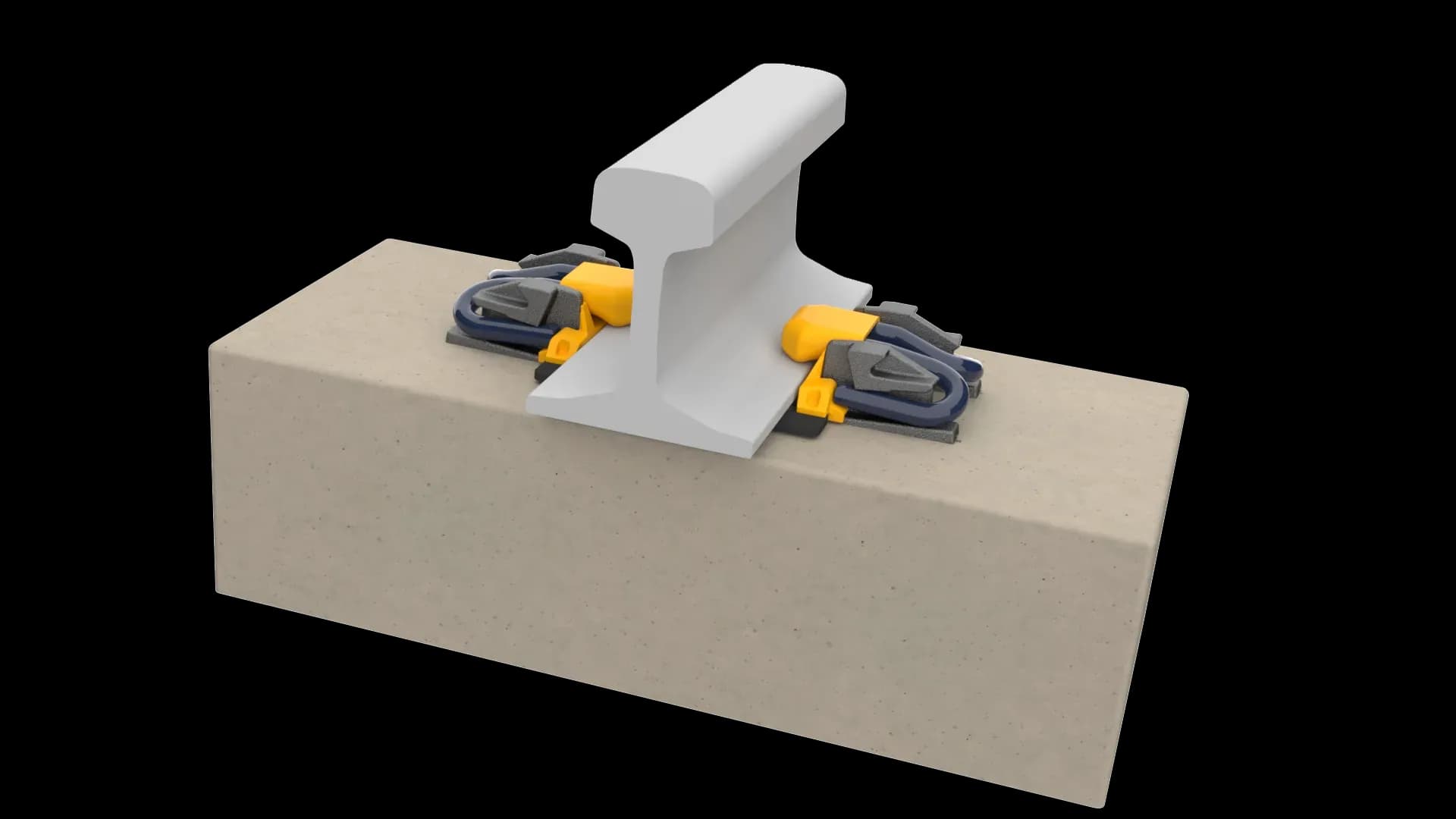

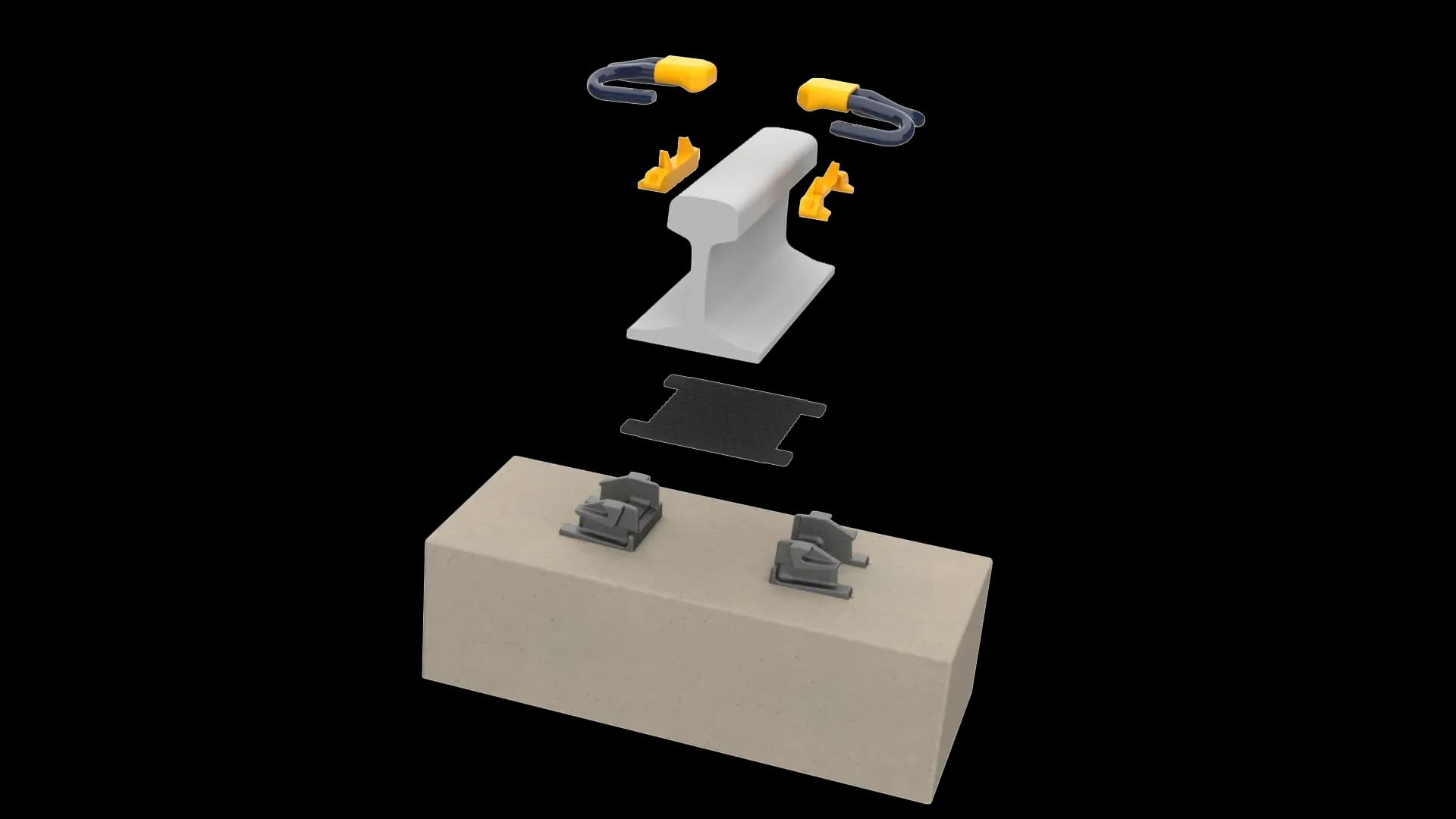

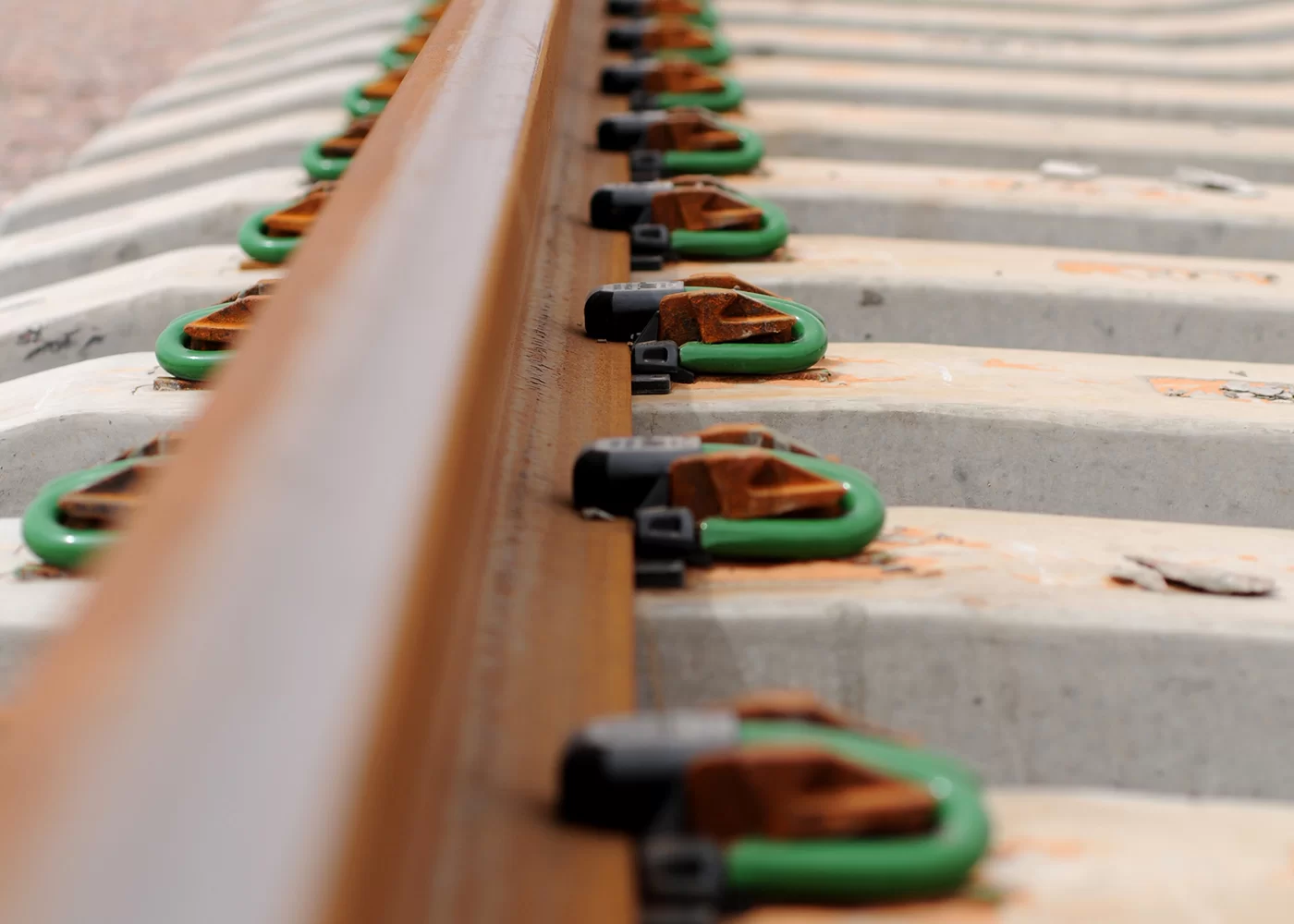

Fastclip features the unique Pandrol ‘switch on-switch off’ function, which enables fast and efficient track installation and reduced maintenance costs.  Sleepers are supplied with all components held captive and the clips set in the parked position. Once the sleepers have been placed and the rail threaded:

  •  The clips are simply pushed into the installed position
  •  The clips can automatically achieve the correct clamping force.
Contact

Downloads

Product Information Sheet

Advantages of using Pandrol Fastclips

01

Very functional

As the fastenings are captive and the Fastclip system is compatible with mechanised equipment, very high rates of track construction and maintenance can be achieved.

02

Flexible mobility

Fastclip allows for independent movement of the rail in different directions, reducing wear. This is achieved by separating the electrical insulators into two pieces, one on the side of the rail foot and the other on top of it.

03

Easy to adjust

Lateral adjustments on the FC and FE systems can be made quickly and easily with the rail in situ. To swap the rail insulations, the clips simply need to be moved to the ‘insulator change’ position.

04

Option to configure

Fastclip assembly stiffness can be configured easily by changing the design or material used for the rail pad to adjust the overall track stiffness.

05

Versatile

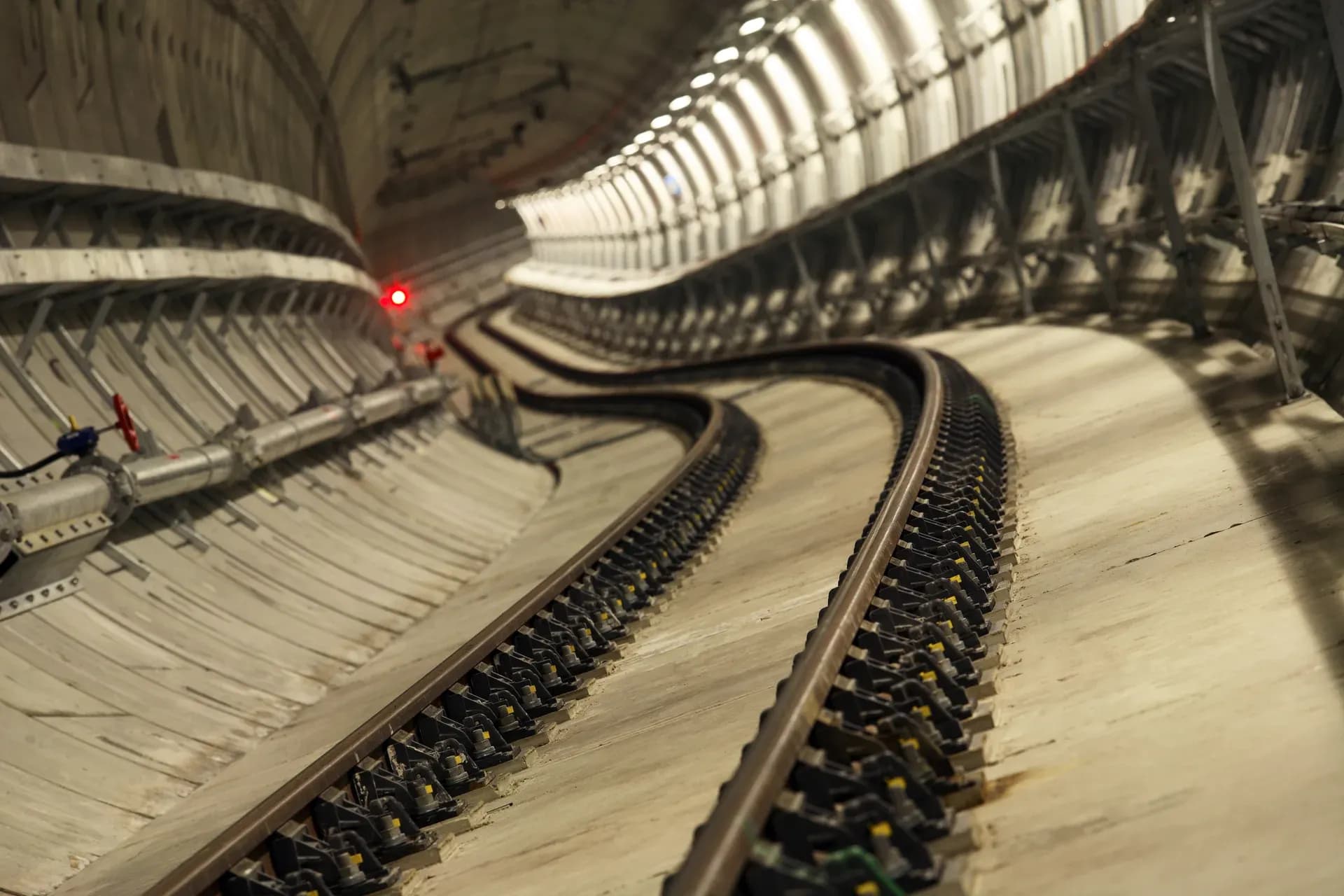

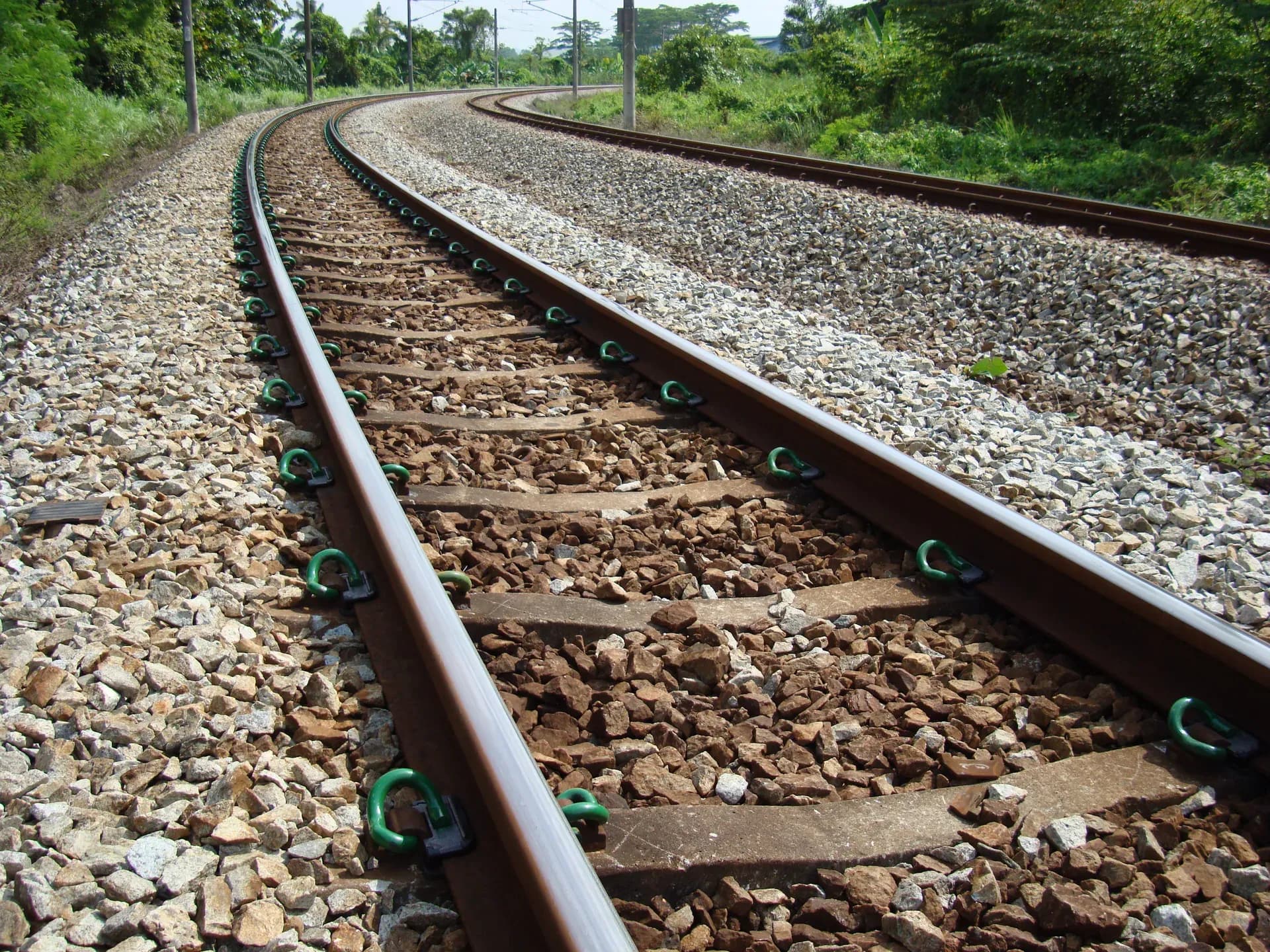

Fastclip is suitable for use on either pre-cast concrete or steel sleepers. Different designs of shoulders are available to suit the requirements of specific applications. Baseplate product options also exist for timber and composite sleepers.

Technical features of the Pandrol Fastclip

01

Switch on-switch off

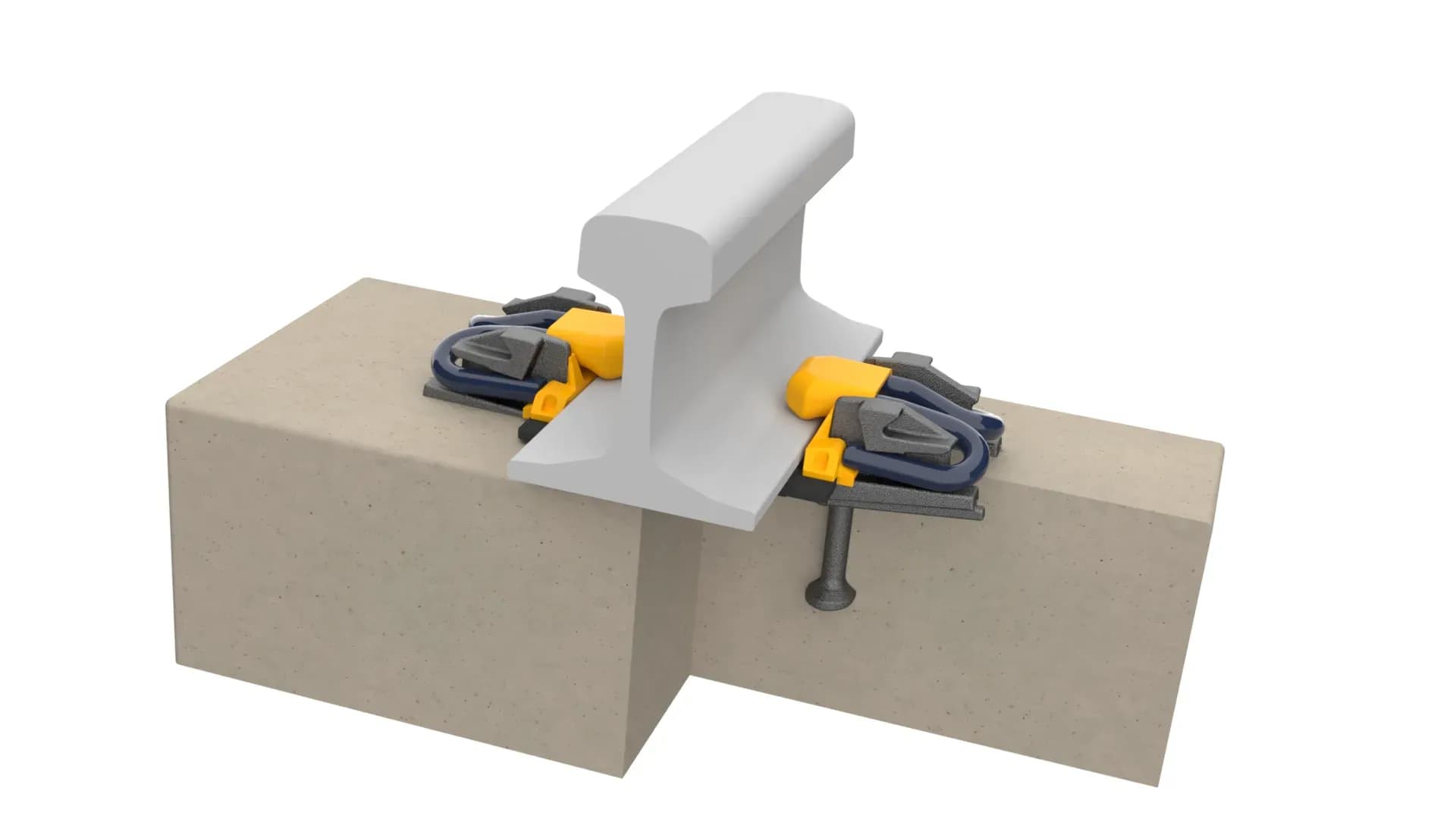

Fastclip can be switched quickly and easily from the parked position, in which it is held securely but does not intrude into the rail seat, into the installed position. The clip is simply pushed between positions to either release the rail or fasten it to the supporting structure below.

02

Captive fastenings

FC and FE Fastclip sleepers are supplied to the track construction site as captive, pre-assembled units, with no loose components.

03

Lateral adjustment

Rail Insulators are available in a range of thicknesses, enabling the gauge to be adjusted by simply swapping the insulator.

04

Mechanisation

Fastclip was predominantly designed for mechanised track operation and is compatible with a wide range of equipment.

05

Track-structure interaction

Fastclip is available in low toe load and zero longitudinal restraint (ZLR) configurations, typically for use on bridges and viaducts where track-structure interaction effects need to be dealt with.
