Track Measurement and Analysis

Overhead Line Inspection Equipment

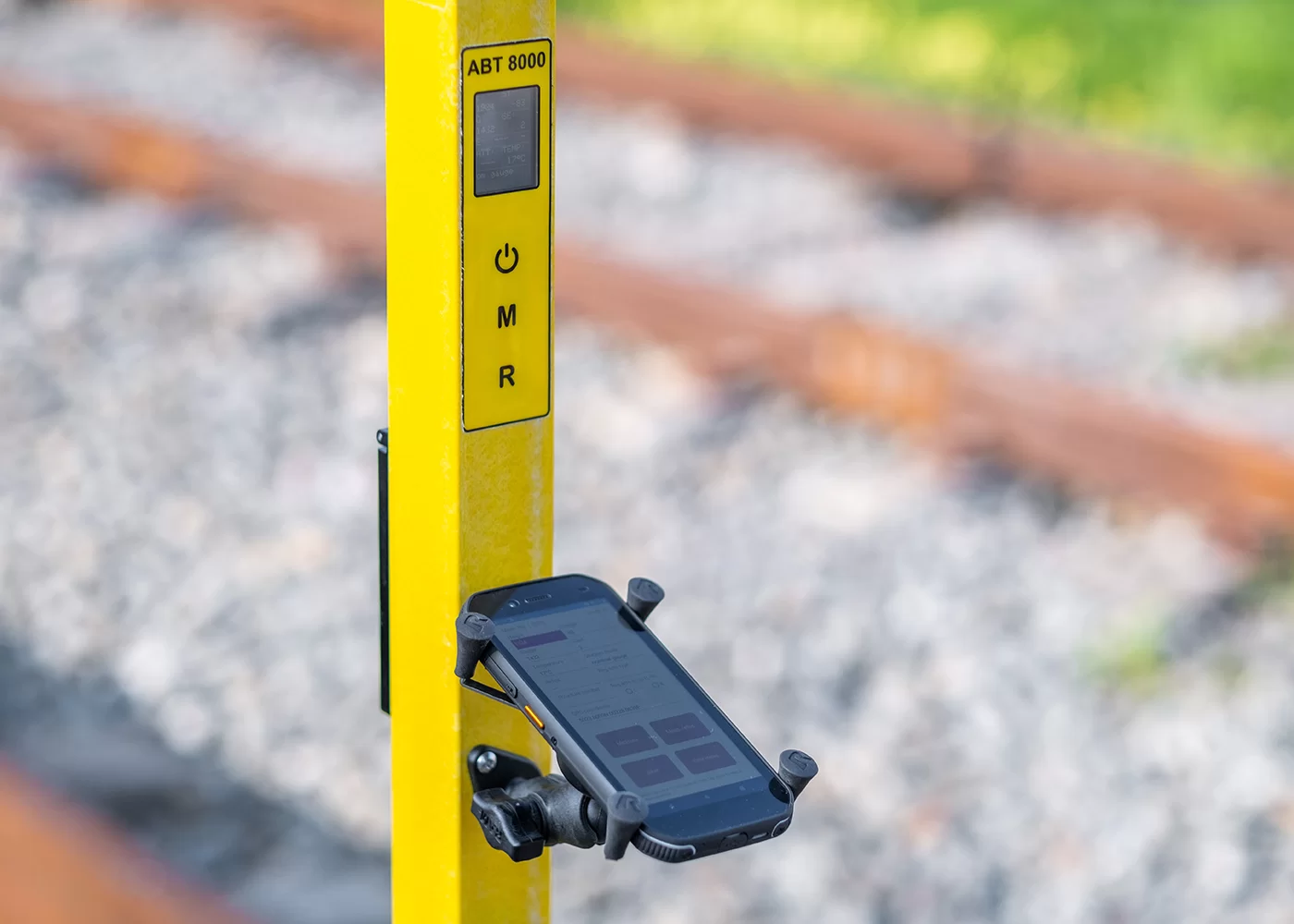

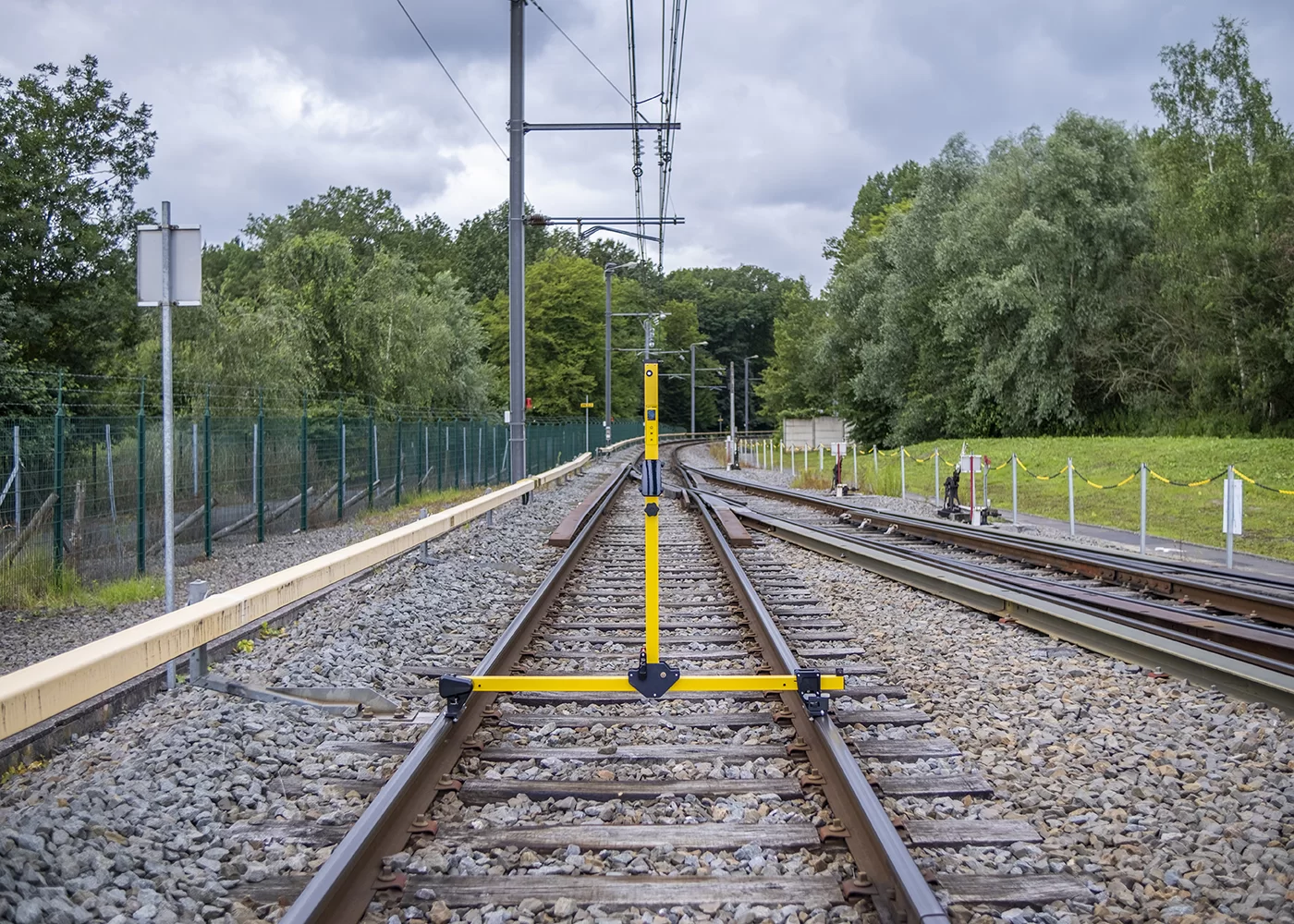

Our range of Overhead Line Equipment gives the user the ability to measure the height and stagger of overhead catenery wire. The user can then log and store data directly to an android device, saving post-processing time back at the office. Multiple variants are available for different track applications and inspection needs.

The entire portfolio of Overhead Line Equipment easily folds up, and is ergonomically designed. As with all of our measurement gauges, the Overhead Line Equipment gauges are manufactured from hard wearing and non-conductive glass reinforced plastic and offer a sprung foot ensuring improved user friendliness and accuracy of measurements.

Downloads

Technical Features

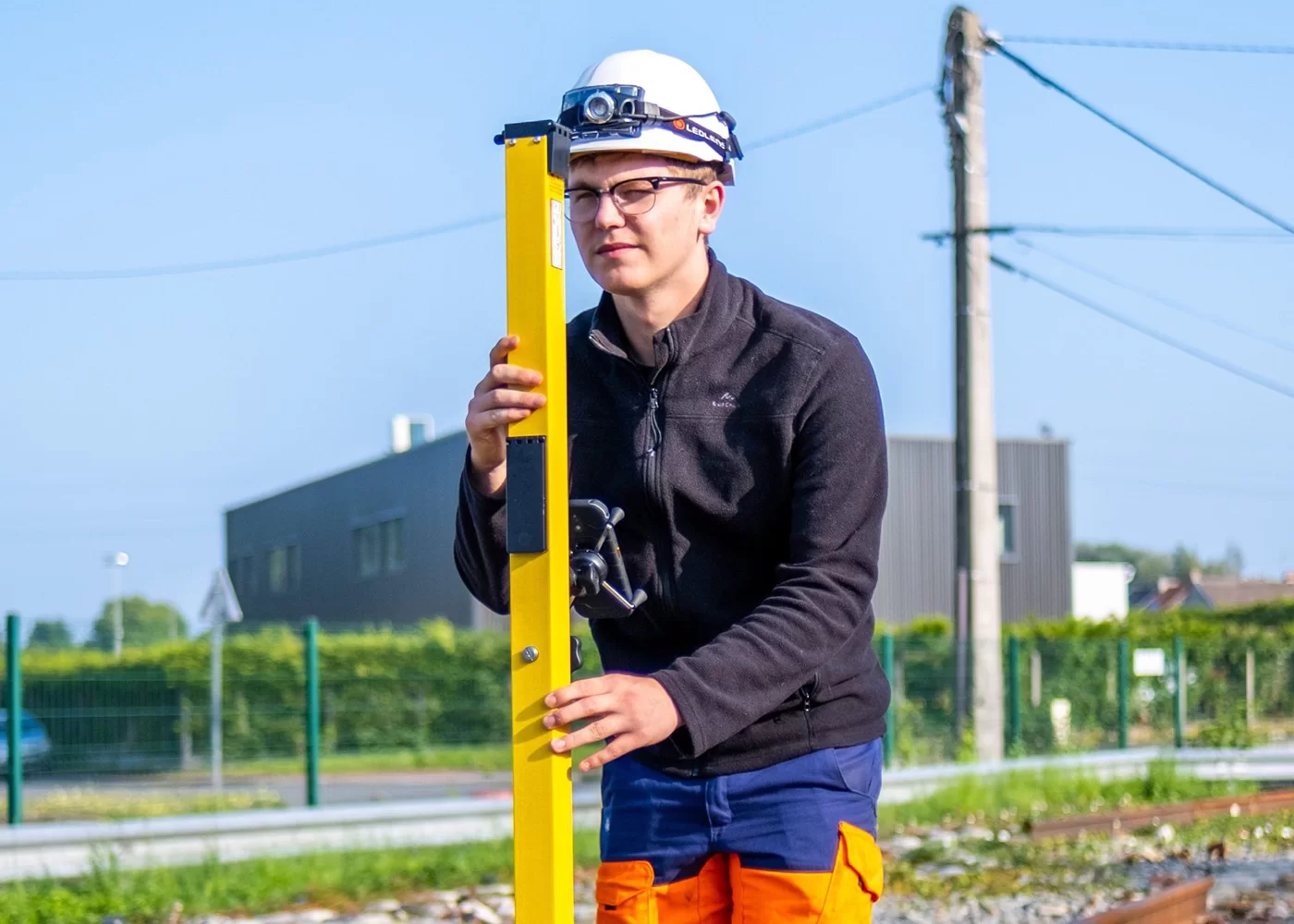

  • The Laser Height and Stagger Gauge uses Hilti’s new IP65 rated PD-E laser range meter for height measurements
  • The laser unit is positioned at eye level and features a 90° viewfinder, enabling the locator to easily set the laser location marker onto the OHL in all weather conditions, including bright sunlight
  • Height and SE are displayed on an illuminated LCD screen
  • Stagger position is displayed on a reflective scale, for ease of use at night as well as day
  • The gauge is made of non-conductive GRP and is fully insulated

Advantages

  • The equipment is extremely easy to set up and use, reducing time on track and contributing to the user’s safety
  • The gauges are lightweight and come in a padded bag that makes it easy to carry to and from site
  • The high quality of the laser unit and its ease of use help to ensure that measurements taken are accurate
  • The gauge’s LCD display and reflective screen make it suitable for use in all weather conditions, including bright sunlight and at night (and in tunnels)

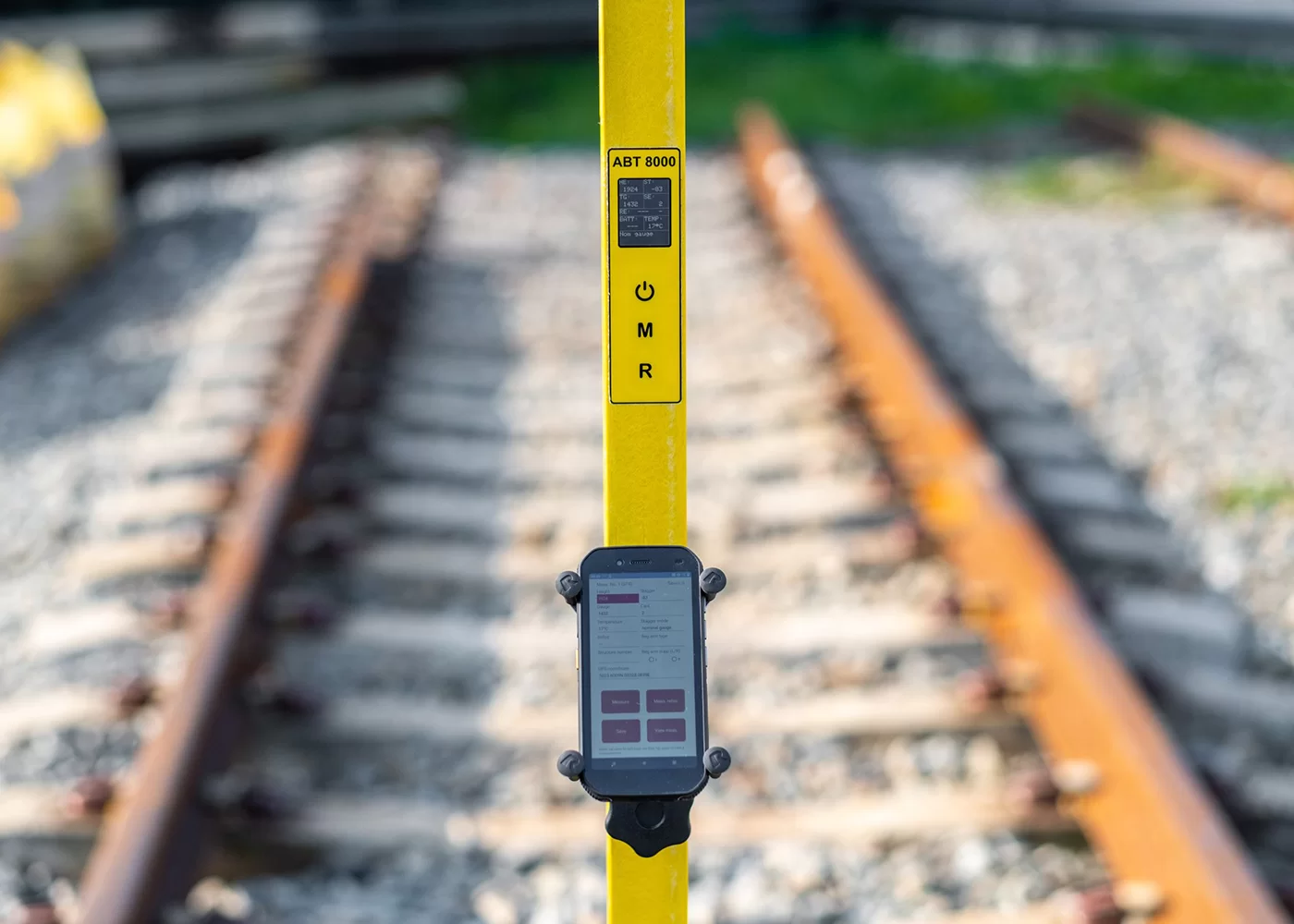

  • Digital data logging increases accuracy and saves time on data processing back in the office. GPS tagging enables future recordings in the same location

Product Variations

Gauge sizes available
Data logs
Over head line
Stagger
Cant
Gauge
GPS
REFOS (Rail Edge to Face of Structure)

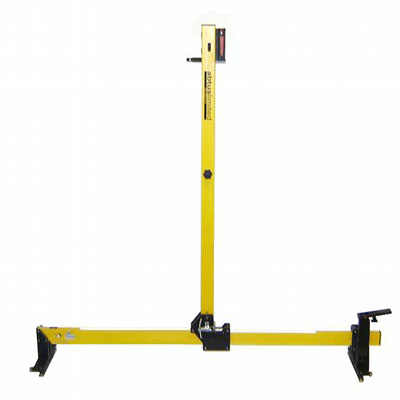

P4640

Gauge sizes available

1067, 1220, 1435, 1600, 1668

Data logs

Over head line

X

Stagger

referenced from nominal

Cant

X

Gauge

GPS

REFOS (Rail Edge to Face of Structure)

X

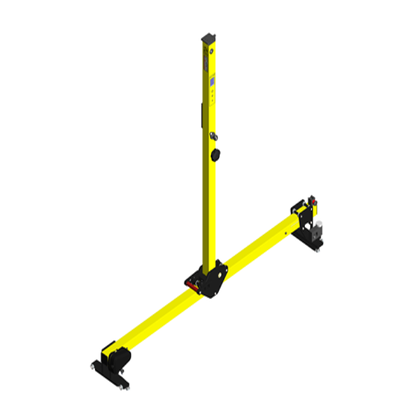

P8000

Gauge sizes available

1435, 1600, 1668

Data logs

X

Over head line

X

Stagger

referenced from nominal or real gauge

Cant

X

Gauge

X

GPS

X

REFOS (Rail Edge to Face of Structure)

X

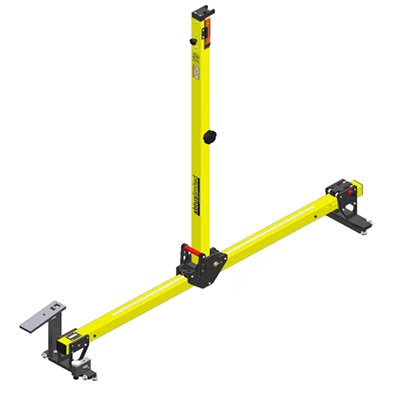

P8100

Gauge sizes available

1435, 1600, 1668

Data logs

Over head line

X

Stagger

referenced from real gauge

Cant

X

Gauge

GPS

REFOS (Rail Edge to Face of Structure)

X
