Track Measurement and Analysis

Structure Clearance & Gauging

Pandrol offers a range of Structure Clearance & Gauging tools developed to provide quick and accurate structure clearance measurements. We offer a range of solutions for different applications, allowing the user to take height and distance offset readings from the running rails to a desired object or position such as a Platform or Datum Plate.

The Structure Clearance & Gauging tools are simple to use and can be operated by one person.



Downloads

Technical Features

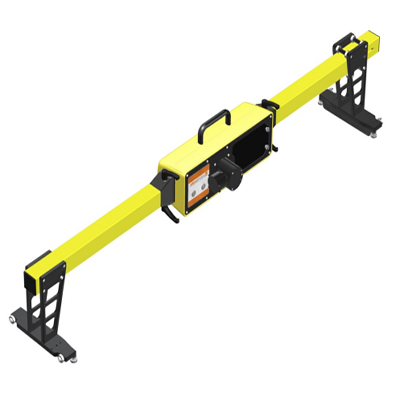

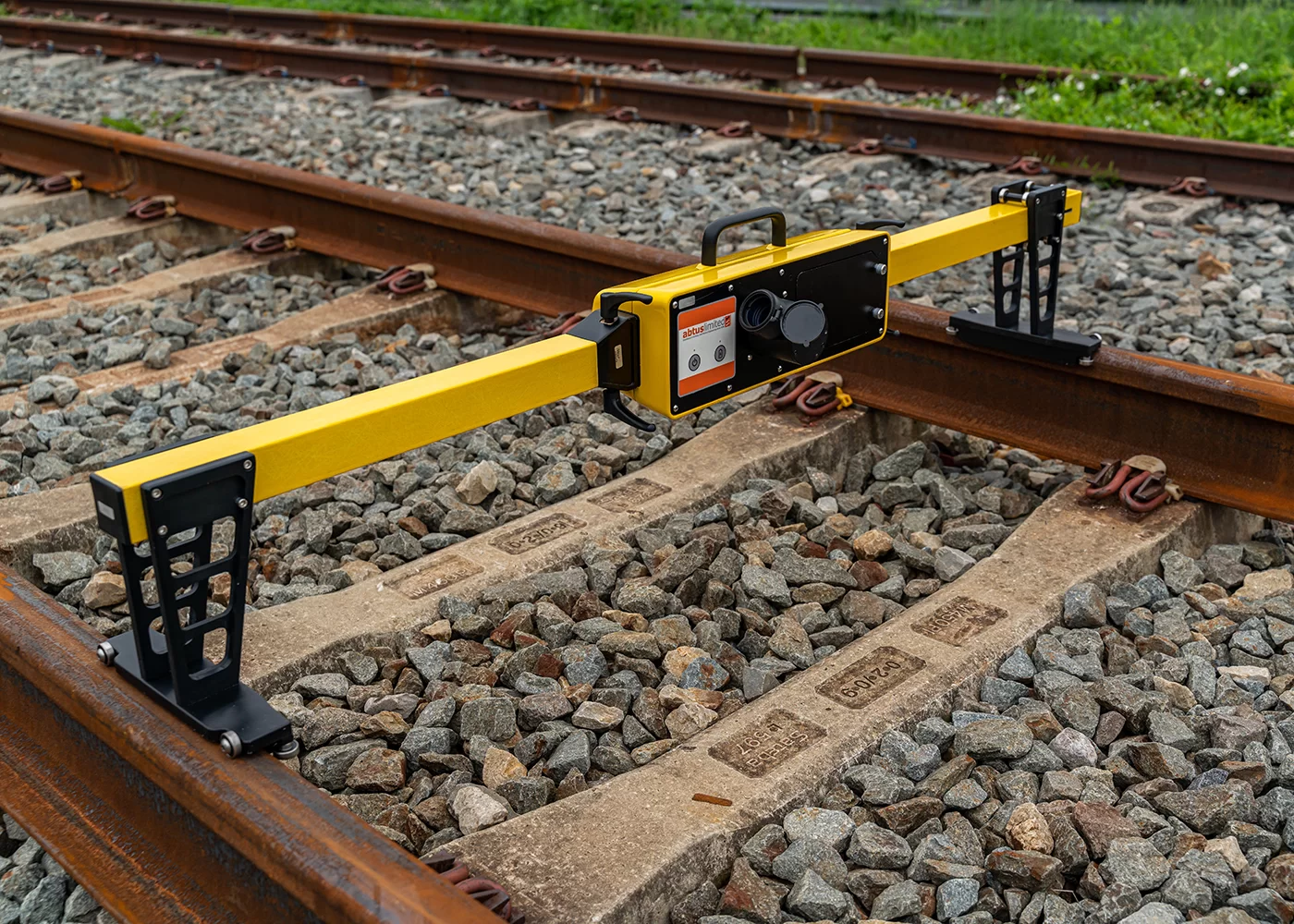

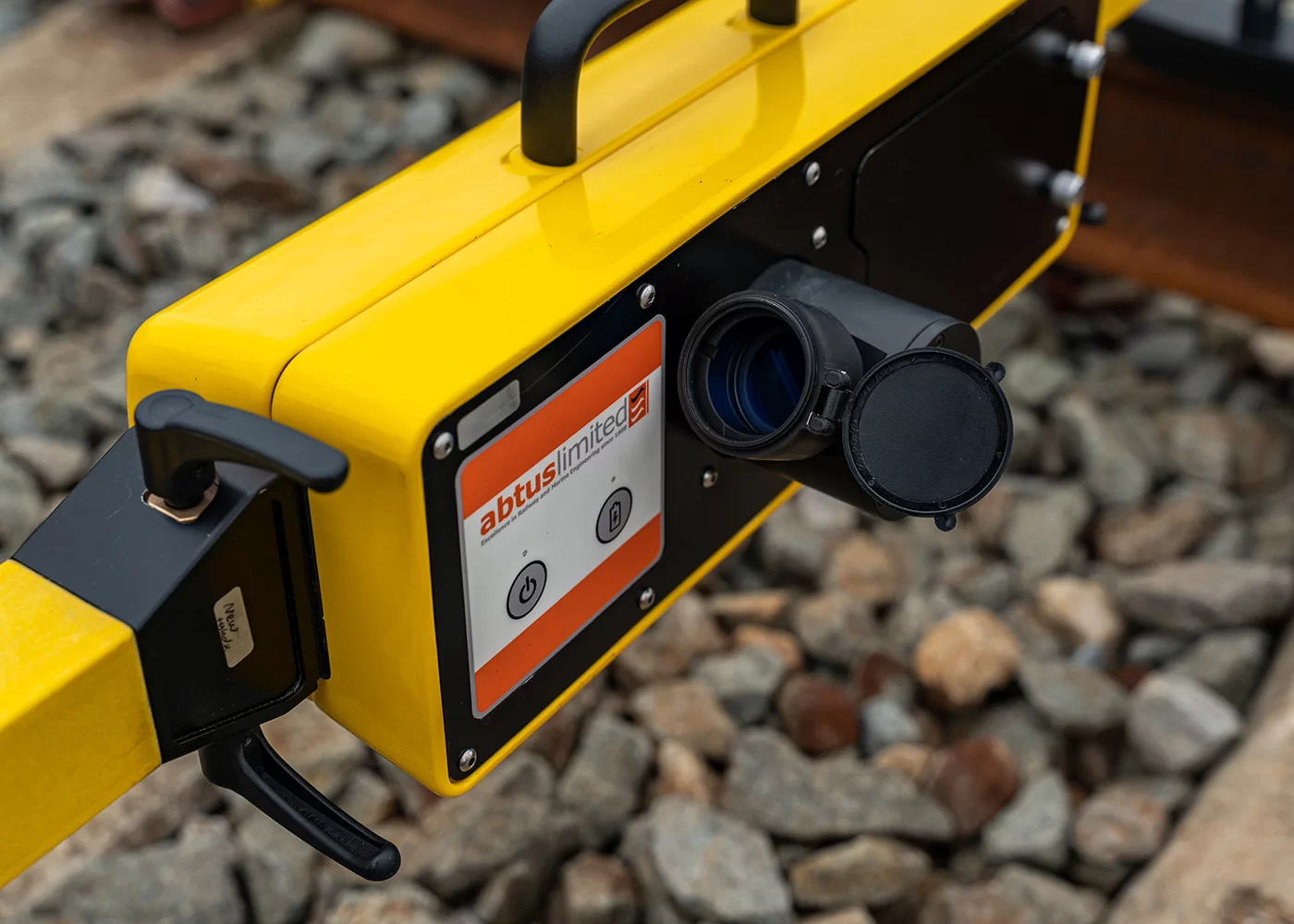

  • The RouteScan (P5650) uses 2D laser scanning technology to take measurements. A visible (635nm wavelength) beam is directed from the laser housing

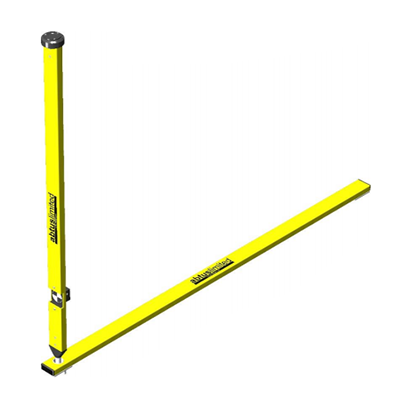

  • The target pole (P4659) is an optional accessory for RouteScan. It allows the measurement of points that cannot be ‘seen’ directly by the laser, such as the gauge corner of the rail on an adjacent track

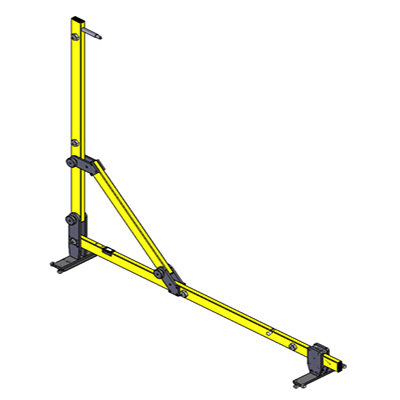

  • The Laser Offset Gauge (P4610) is a foldable, robust and lightweight tool, it is designed to measure a distance to a desired object or structure

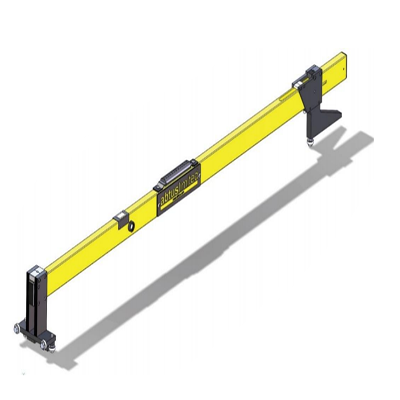

  • The Platform Gauge (P4060) provides the ability to measure the platform without track possession

Advantages

  • Portability and ease of use make it ideal for highly time pressurised environments in which measurements need to be taken quickly and accurately
  • The product is easy to use and operators need less training than for traditional gauging methods
  • P5650 is Unlike more traditional gauging methods, Bluetooth communication allows the device to be operated from a position of safety

Product Variations

Gauge sizes available
Weight
Measures the height of a platform
Measures the height and distance of any structure
Cant
Gauge
Using with the RouteScan
Data logs
P4050

Gauge sizes available

1067, 1435, 1495, 1600

Weight

4.7kg

Measures the height of a platform

X

Measures the height and distance of any structure

Cant

Gauge

X

Using with the RouteScan

Data logs

P4610

Gauge sizes available

1067, 1220, 1435, 1600, 1668

Weight

8.0kg

Measures the height of a platform

Measures the height and distance of any structure

X

Cant

X

Gauge

Using with the RouteScan

Data logs

P4659

Gauge sizes available

1000, 1067, 1435, 1600, 1668

Weight

4kg

Measures the height of a platform

Measures the height and distance of any structure

Cant

Gauge

Using with the RouteScan

X

Data logs

X

P5650

Gauge sizes available

1000, 1067, 1435, 1600, 1668

Weight

13.6kg

Measures the height of a platform

Measures the height and distance of any structure

X

Cant

X

Gauge

X

Using with the RouteScan

Data logs
