Monobloc Electrical Weld Shear EME1/EME2

The Monobloc Electrical Weld Shear EME1/EME2 is an electrical rail shearing machine designed to shear off the red-hot metal remaining around the rail head after aluminothermic welding of Vignole rails. During aluminothermic welding, a deadhead of excess metal remains above the rail head. This was traditionally removed manually with a hammer and chisel. The Monobloc Electrical Weld Shear automates this process and removes the risk of damaging the rail.

Two hydraulically operated blades, on either side of the rail, move and cut off the excess metal.  The shear is powered by an embedded electrical hydraulic pump.

Technical Features

  • The shear comes as an integral unit, with an embedded electrical hydraulic pump

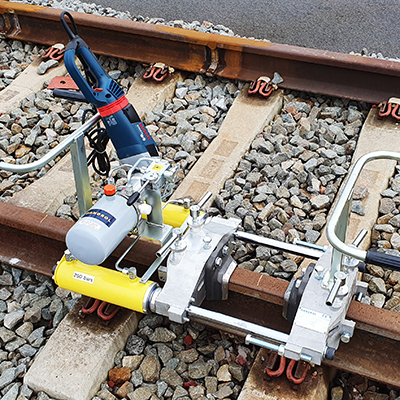

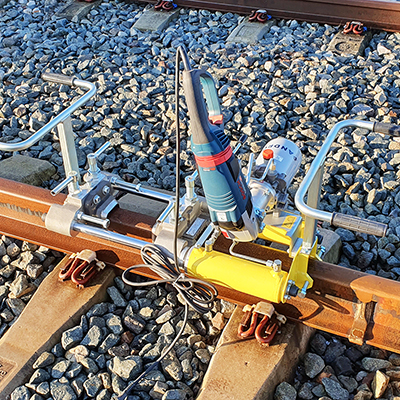

  • Available in two versions - The Monobloc Electrical Weld Shear EME1 is a narrow unit, able to operate in turnouts thanks to its small size. The EME2 is wider, bringing more comfort when shearing through the mould
  • The shear is fitted with two hydraulic jacks that are able to produce a force of 21.5 tons under a pressure of 250 bars
  • Adjusting screws enable the blades' height, lateral position and stroke to be fully adjusted
  • Locking systems fixed under the rail head prevent the shearing machine from rising up

Advantages

  • The Monobloc Electrical Weld Shear is much safer to use than the traditional hammer and chisel method of reducing excess metal, which was hard work and exposed workers to projections of metal.
  • The adjustable blades and guiding rollers result in much greater precision than possible when removing the metal deadhead manually.
  • The powerful hydraulic unit significantly reduces grinding time, saving money and decreasing downtime.
  • The upper positioning of the handles on the shearing machine ensures the operator remains a good distance from the hot area, increasing safety.
  • The Monobloc Electrical Weld Shear’s compact design allows for excellent user flexibility.

Variants

Motor type
Power @ rpm
Voltage
Hydraulic pressure (max)
Flow
Shearing force
Opening between blades
Inner width free space
EME1 (Narrow)

Motor type

Bosch GWS 26.230

Power @ rpm

2.6 KW @ 6,500 rpm

Voltage

230V Single phase @ 50 Hz

Hydraulic pressure (max)

250 bar

Flow

6.5 liter / min

Shearing force

212 kN / 21.5 tons

Opening between blades

175 mm

Inner width free space

210 mm

EME2 (Wide)

Motor type

Bosch GWS 26.230

Power @ rpm

2.6 KW @ 6,500 rpm

Voltage

230V Single phase @ 50 Hz

Hydraulic pressure (max)

250 bar

Flow

6.5 liter / min

Shearing force

212 kN / 21.5 tons

Opening between blades

175 mm

Inner width free space

325 mm
