Rail Welding Equipment

Straight Edges RAP1000, RB500, RB700 and RB1000

Choose a long-lasting, easy-to-use Straight Edge tool designed to ensure accurate alignment before the aluminothermic welding process begins – guaranteeing the best possible result for your weld.

Once your weld is complete, Pandrol Straight Edges can also be used to check the grinding tolerance.

Pandrol Straight Edges Explained

Performing checks and adjustments is an important part of the welding and maintenance process, particularly on the ends of rails. When it comes to these essential measurements, no rail operator can afford to cut corners.

Rely on Pandrol’s range of Straight Edge tools to help your team achieve perfect peak, horizontal and vertical alignment every time.

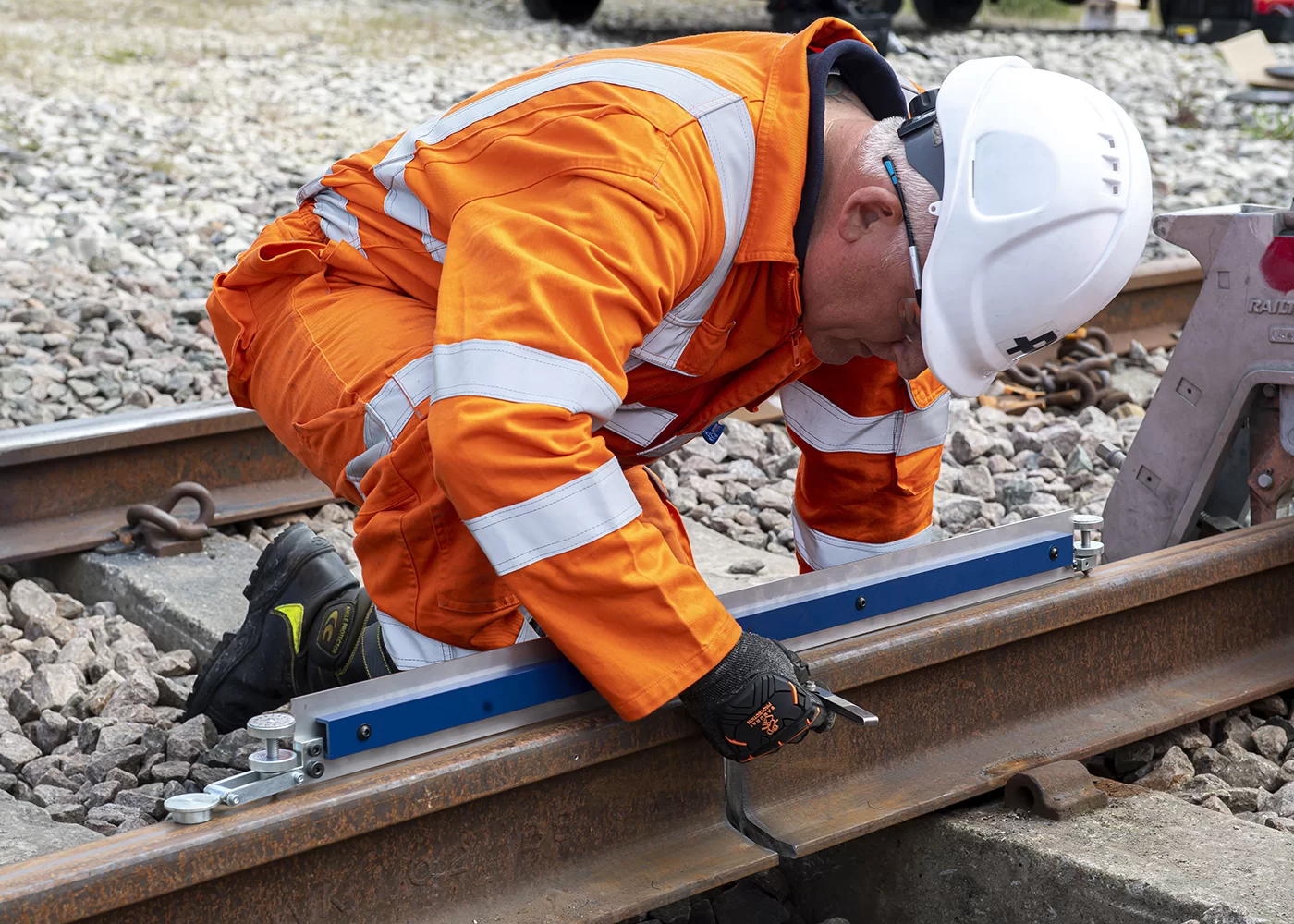

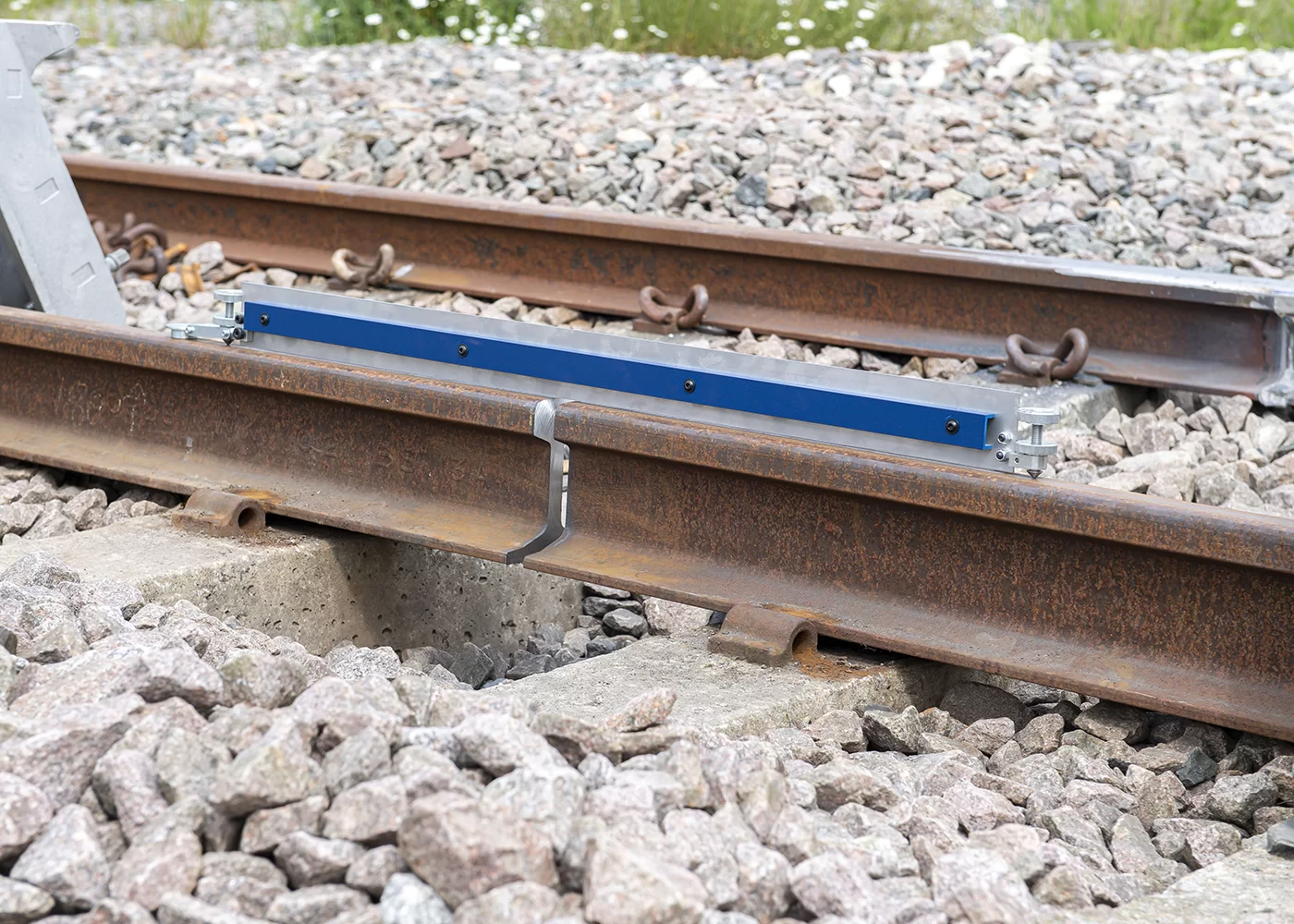

We provide a Straight Edge for every project and application. The Straight Edge RAP1000 features flat and adjustable stops and is designed for pre-welding adjustments, while Straight Edges RB500, 700 and 1000 are bevelled tools designed for the performance of checks and adjustments on rail heads, webs and cant.

Pre and post-welding measuring tools available
Designed to help welders maximise traceability of welds
High quality steel construction

Downloads

Product Information Sheet

Advantages of Pandrol’s Straight Edges Range

Traceability

Maximise the traceability of every weld with the Straight Edge RAP1000’s laser-engraved strap, or the RB500, RB700 and RB1000’s laser-engraved graduation. These give welders all the essential info they need to check the exact length of grinding required per rail.

Accuracy

Ensure accuracy of measurement with the Straight Edge RAP1000’s strategically placed stringers and adjustable stops. Its magnetic stand also makes the measuring process stable and controlled. These guarantee precise setting for flawless alignment, making it easy to measure and record weld information accurately.

Longevity

Trust in Pandrol’s construction standards. The Straight Edge RAP1000 is particularly easy to use, long-lasting, and ergonomic. The Straight Edge RB500, RB700 and RB1000 models are made using top-quality, high-strength steel, offering durability that’s perfect for repeated, hands-on use.

High quality

Rely on the superior materials used to make Pandrol’s Straight Edge tools. The RB500, RB700 and RB1000 are long-lasting and ergonomic, thanks to an anodised aluminium handle and single fixation point.

Technical features of Pandrol Straight Edges

Treated steel

Experience the advanced durability of Pandrol’s Straight Edge tools. The RB500, RB700 and RB1000 models are made from high-quality, strength-treated steel, which guarantees maximum performance and longevity in a range of working conditions.

Laser-engraved marking

Never worry about the markings on your Pandrol Straight Edge rubbing off with wear. The RB500, RB700, RB1000 and RAP1000 each have their measuring information laser-engraved on the strap for traceability and length checks.

Ergonomic handle

Measure with ease and comfort, thanks to the RB500, 700 and 1000 models’ anodised aluminium handle, which provides ergonomic, durable grip, with a single fixation point to make sure the strip doesn’t become deformed.

Magnetic stand

Ensure optimum stability while measuring with the RAP1000’s magnetic stand and stringers on either side of the tool to improve manipulation, flexibility and accuracy.

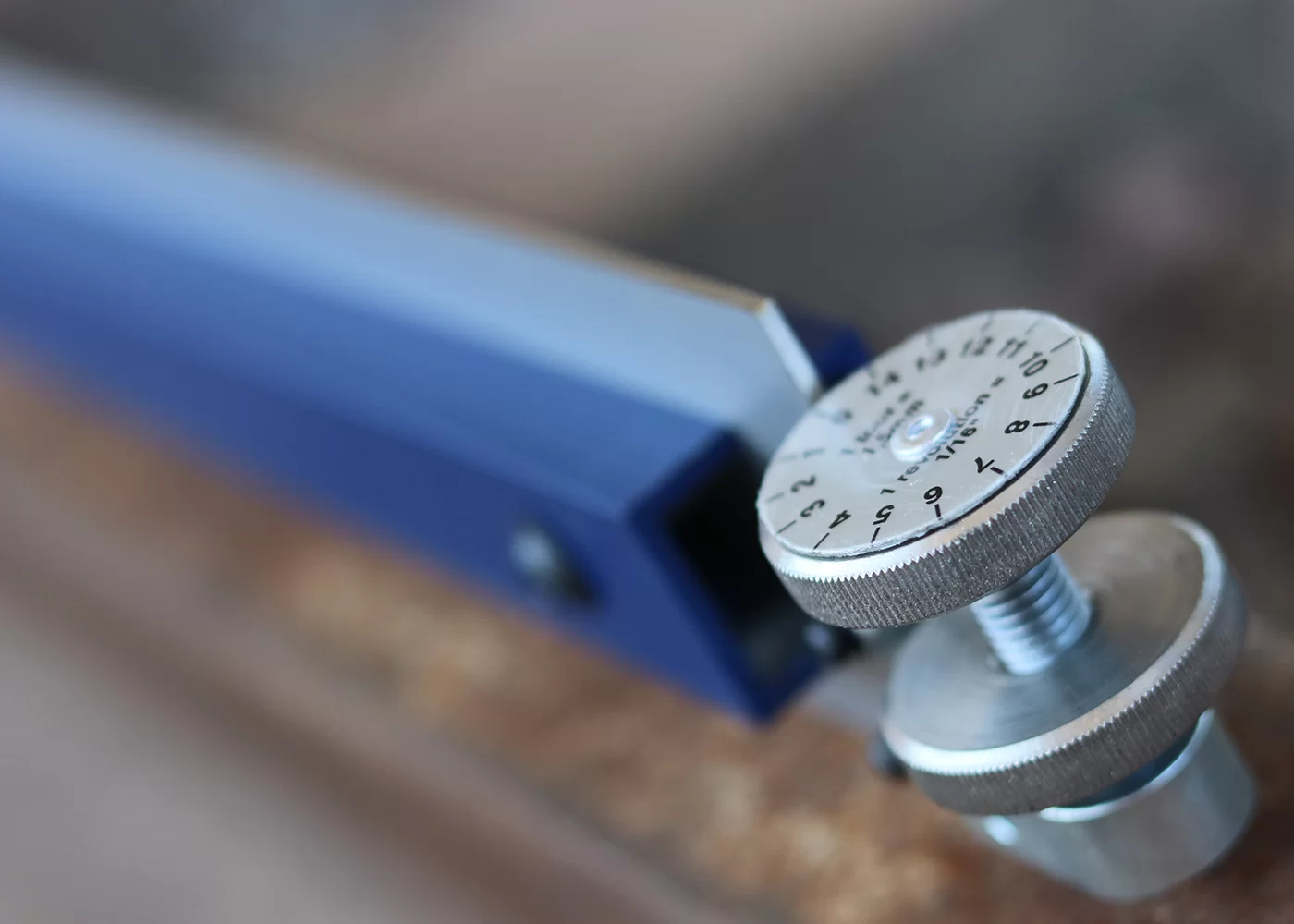

Adjustable height knobs

Set the level and align the rail head and web with precision using the RAP1000’s adjustable stops, which make accurate results easy to achieve.
