Rail Fastenings Systems

Re System

Pandrol’s Re System replaces the e-Clip, but with faster installation times and less maintenance.

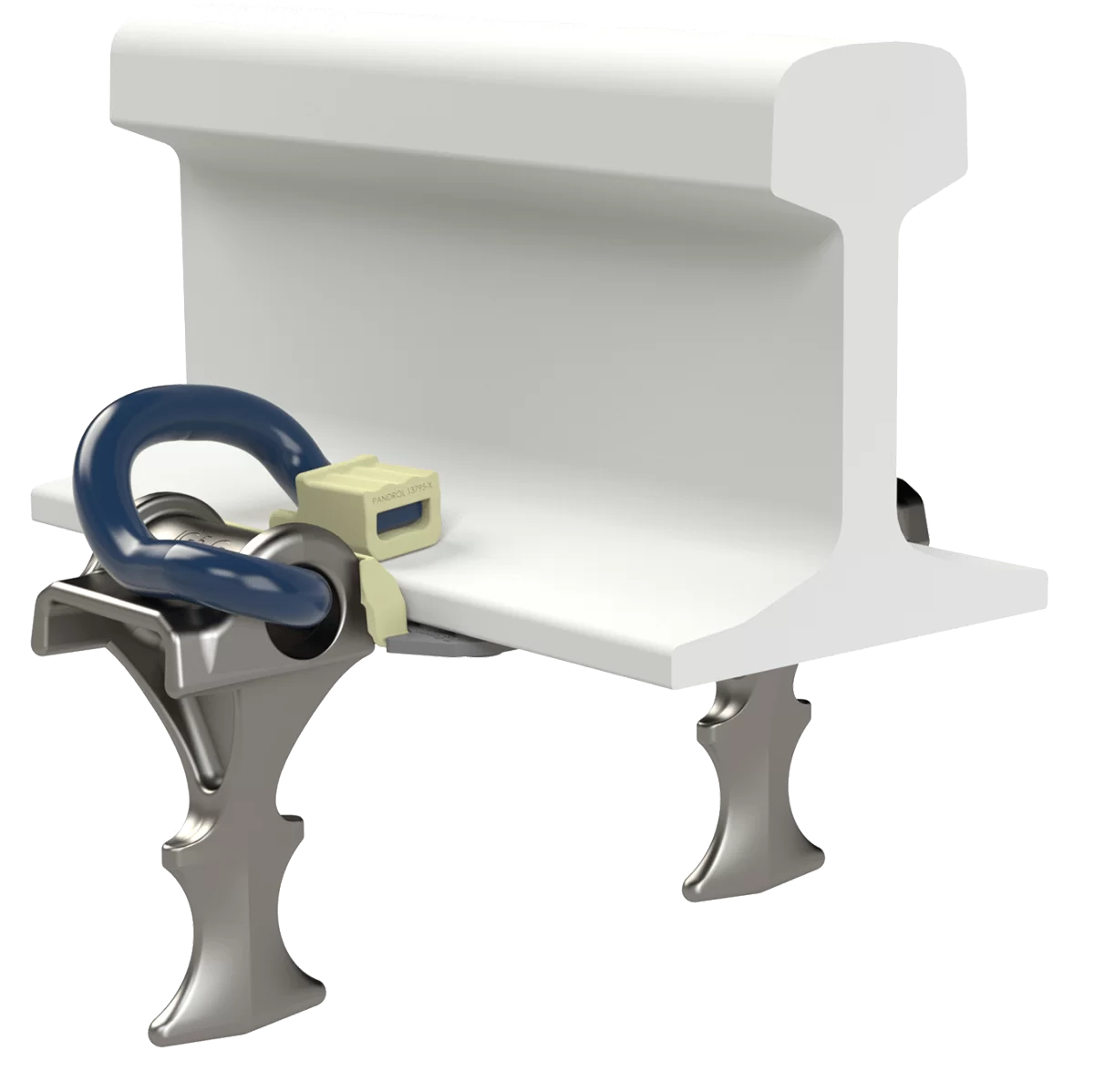

Re System

The Pandrol Re System has a reduced number of loose components when compared to a traditional e-Clip equivalent resulting in faster clip, pad/insulator installation times during track refurbishments.

  • The Pandrol Re System adopts two-part insulator technology and integrated insulator/pad manufacturing to provide extended life to components
  • In 2018, the Re System for the F40 sleeper type in the UK won the award for Technical Innovation Excellence in the Rail Business Awards
  • This latest version of the Re System introduced a curvature to the pad which created a funnel effect to make it easier and more effective to guide the rail into the correct position

Downloads

Product Information Sheet
Product Reference
Compliance
OMM & Training

Benefits of the Re System

01

Quick installation

Faster clip, pad and insulator installation times during track refurbishments, due to a reduced number of loose components when compared to a traditional e-Clip equivalent

02

Reduced manpower

The design improves rail threading and clipping rates and this leads directly to a reduced manpower requirement on re-railing sites

03

Extended component life

Separating the insulator into two parts leads to greatly extended component life for these vital elements of the rail fastening assembly

04

Increased durability

Improves the durability of the rail fastening components installed on older types of concrete or steel sleepers

Technical features of the Re System

01

Toe insulators

The system is supplied with toe insulators already in place on the toe of the clip

02

Accordant

Suitable for use on concrete and steel sleepers

03

Versatile

Suitable for use on light rail, metro, general main line, high speed and heavy axle loads

04

Compatible

Can be installed on new or existing Pandrol e-Clip or PR clip concrete sleepers
